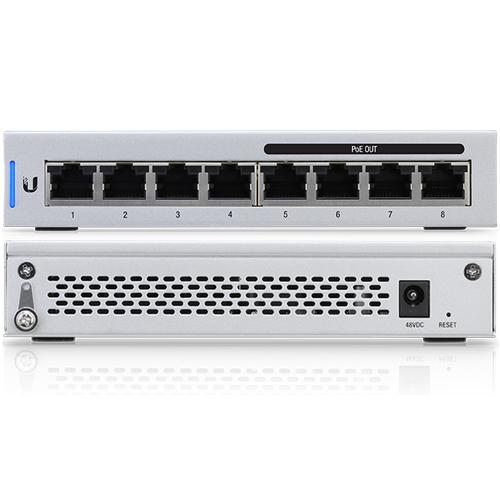

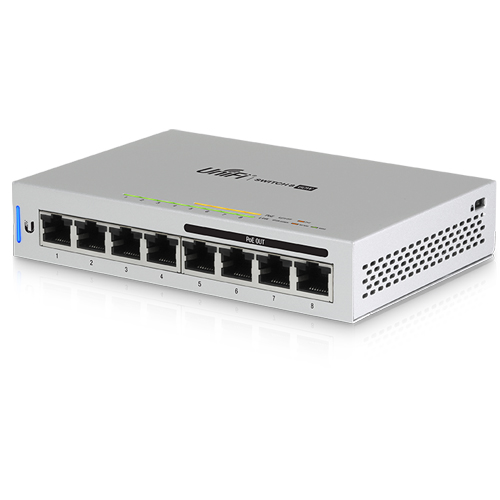

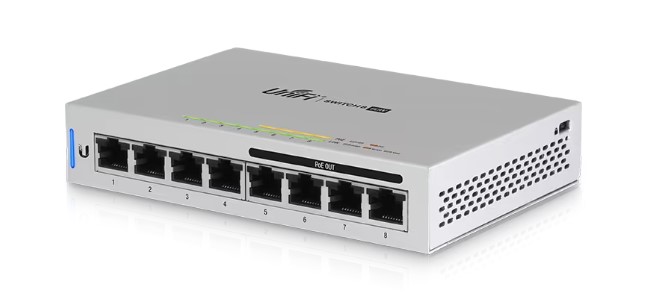

Ubiquiti Unifi 60W US-8-60W 8port Manageable Switch

• Ubiquiti UniFi US-8-60W — 8-Port Managed Gigabit PoE Switch
• Key Specifications:
• Device type: Managed Network Switch
• Model: US-8-60W
• Product family: UniFi 8 PoE, Gen1
• Switching layer: Layer 2

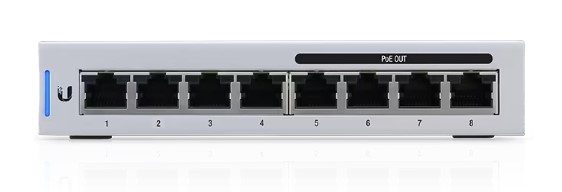

• Number of RJ45 ports: 8
• Ethernet port speed: 10/100/1000 Mbps
• Port type: Gigabit RJ45
• Dedicated uplink ports: None
• SFP/SFP+ ports: None
• Management type: Managed
• Centralized management: UniFi Network
• Management interface: Ethernet
• Minimum UniFi Network version: 6.3.51

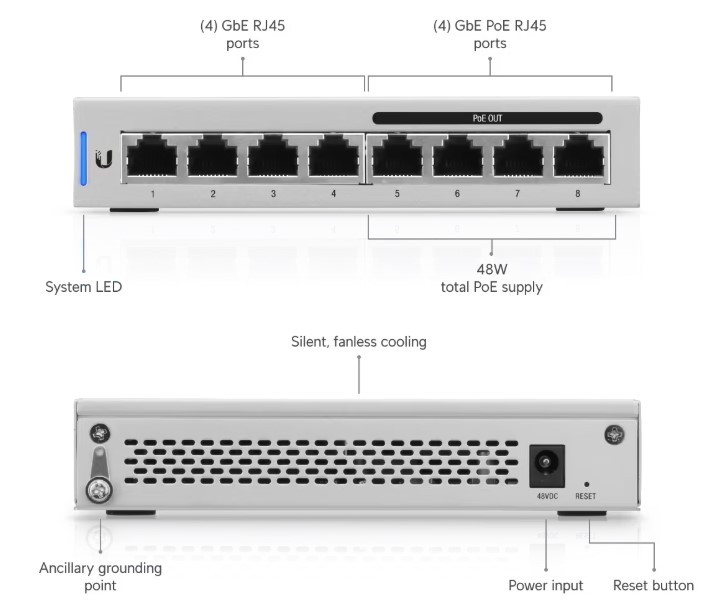

• PoE ports: 4, ports 5–8
• PoE standard: IEEE 802.3af
• Maximum PoE output per port: 15.4 W
• Total available PoE budget: 48 W
• PoE pinout: pins 1, 2 positive and 3, 6 negative
• Switching capacity: 16 Gbps
• Total non-blocking throughput: 8 Gbps
• Forwarding rate: 12 Mpps
• MAC address table: 16,000
• Packet buffer: 1.5 MB
• Supported VLANs: up to 256
• Network features: VLAN, Voice VLAN, LACP, STP/RSTP, IGMP Snooping, Port Mirroring, Port Isolation, Storm Control, Loop Protection, Jumbo Frames, 802.1X, DHCP Snooping and ACL
• Port rate limiting: supported
• Multicast and broadcast rate limiting: supported
• Cooling: fanless passive cooling
• Enclosure material: SGCC steel

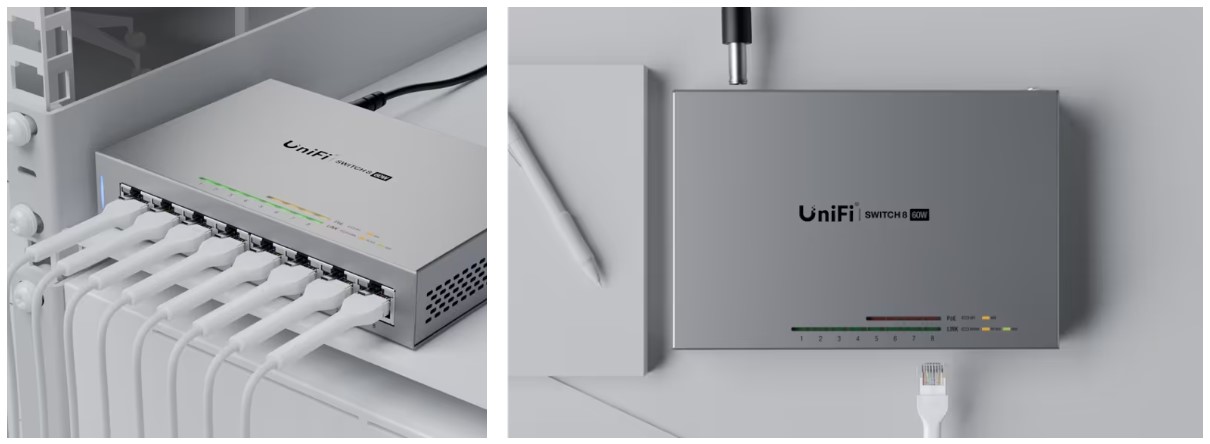

• Installation: desktop or wall-mounted
• LED indicators: Status, PoE, Link, Speed and Activity

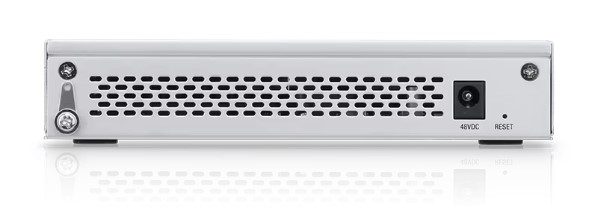

• Power supply: external AC/DC adapter
• Adapter input: 100–240 V AC, 50/60 Hz
• Adapter output: 48 V DC / 1.25 A
• Power adapter: included
• Maximum switch power consumption: 12 W excluding PoE output
• ESD/EMP protection: ±24 kV
• Operating temperature: −5 to +45 °C
• Operating humidity: 5–95% noncondensing
• Dimensions: 148 × 100 × 31 mm
• Weight: 432 g
• NDAA compliant: Yes
• Certifications: CE, FCC, IC and Anatel
• Package contents: switch, power adapter, power cord, mounting screws and screw anchors.

Important Clarifications

Despite the US-8-60W model name, the actual available PoE budget is 48 W, not 60 W. The “60W” designation refers to the power rating of the included adapter: 48 V × 1.25 A = 60 W. Part of this power is required to operate the switch itself.

Ports 5–8 support only IEEE 802.3af PoE, with a maximum output of 15.4 W per port. They are not suitable for devices that specifically require IEEE 802.3at PoE+, such as access points whose power consumption exceeds the capabilities of 802.3af. The switch also does NOT support 24V Passive PoE.
