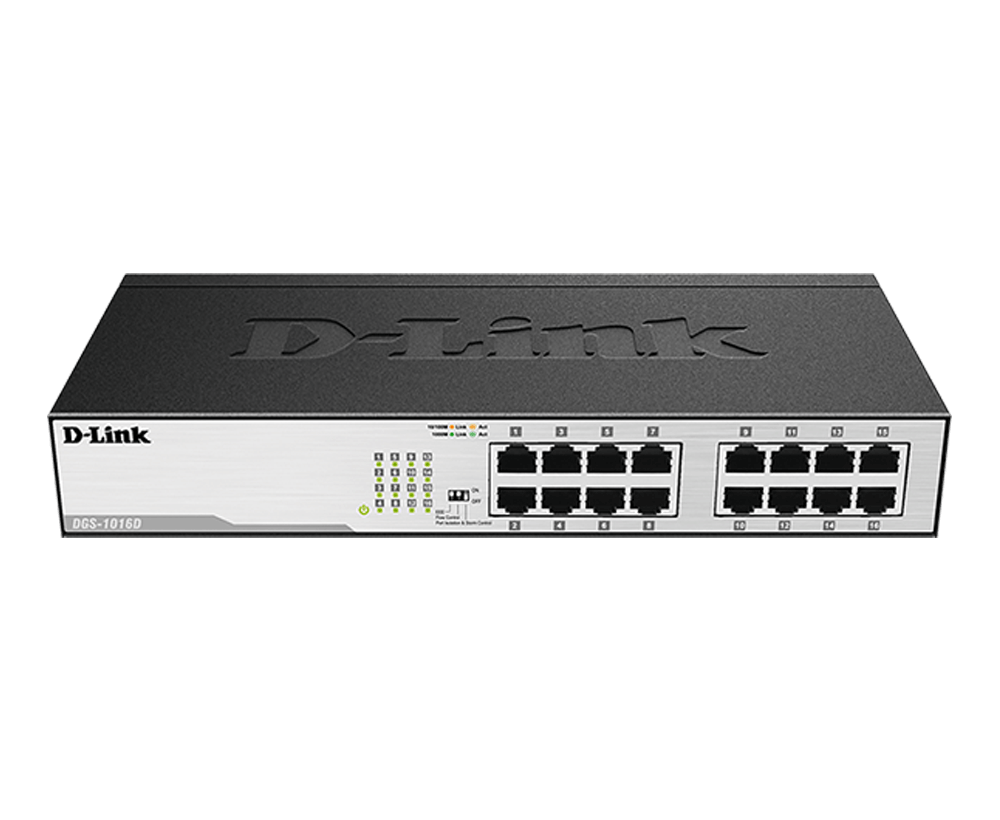

D-Link DGS-1016D 16-Port Gigabit Unmanaged Ethernet Switch

D-Link DGS-1016D — 16-Port Gigabit Unmanaged Ethernet Switch

General Specifications

Device type: Gigabit Ethernet Switch

Brand: D-Link

Model: DGS-1016D

Management type: Unmanaged

Switching layer: Layer 2

Form factor: Desktop / Rackmount

Rack mounting: 19-inch

Installation: Desktop / 19-inch Rack

Ethernet Connectivity

Number of Ethernet ports: 16 × RJ45

Ethernet speed: 10/100/1000 Mbps

Maximum speed per port: 1 Gbps

Full-Duplex bandwidth per port: 2 Gbps (1 Gbps TX + 1 Gbps RX)

Auto-Negotiation: Supported

Auto-MDI/MDIX: Supported

Full Duplex: Supported

Half Duplex: Supported at 10/100 Mbps

PoE support: No

Dedicated Uplink ports: None

SFP / SFP+ ports: None

Network Performance

Switching capacity: 32 Gbps

Maximum packet forwarding rate: 23.81 Mpps

MAC address table: 8192 entries (8K)

Packet buffer memory: 512 KB

Jumbo Frame: 9216 Bytes (J1/K1 revisions)

Forwarding method: Store-and-Forward

MAC address learning: Automatic

MAC address aging: Supported

Head-of-Line (HOL) Blocking Prevention: Supported

Network Standards

IEEE 802.3 — Ethernet

IEEE 802.3u — Fast Ethernet

IEEE 802.3ab — Gigabit Ethernet

IEEE 802.3x — Flow Control

IEEE 802.3az — Energy-Efficient Ethernet (EEE)

IEEE 802.1p — Quality of Service (QoS)

Network Features

Plug and Play: Supported

IEEE 802.1p QoS: Supported

QoS queues: 8 (J1) / 4 (K1)

Flow Control: Supported

Port Isolation: Supported

Broadcast Storm Control: Supported

Cable Diagnostics: Supported through port LEDs

Energy-Efficient Ethernet (EEE): Supported

D-Link Green Technology: Supported

Automatic power saving based on link status and cable length

DIP Switch (J1 revision):

Energy-Efficient Ethernet (EEE)

Flow Control

Port Isolation and Storm Control

DIP Switch (K1 revision):

Normal Mode

Extend Mode

Flow Control Off

Port Isolation

Extend Mode (K1): Up to 250 m at 10 Mbps

Ethernet Cable Compatibility

10 Mbps: Cat.3 or higher

100 Mbps: Cat.5 or higher

1000 Mbps: Cat.5e or higher

Standard Ethernet cable distance: Up to 100 m

Cable type: UTP Twisted Pair

Power Specifications

Power supply: Internal Universal AC Power Supply

Input voltage: 100–240V AC

Input frequency: 50/60 Hz

Power connector: AC Power Input

Maximum power consumption:

J1 revision: 7.7 W

K1 revision: 9.74 W

Standby power consumption:

J1 revision: 2.42 W

K1 revision: 2.5 W

Protection and Reliability

Surge protection on Ethernet ports:

J1 revision: 1 kV

K1 revision: 4 kV

MTBF:

J1 revision: 538,692 hours

K1 revision: 530,336 hours

Indicators and Controls

Power LED: Supported

Link/Activity/Speed LEDs: Per Port

DIP Switch: Supported (functions depend on revision)

Web Management: No

CLI Management: No

Physical Specifications

Housing material: Metal

Color: Black

Cooling: Passive / Fanless

Acoustic noise: 0 dB(A)

Installation: Desktop / 19-inch Rack

Dimensions (J1/K1): 280 × 126 × 44 mm

Weight:

J1 revision: 952 g

K1 revision: 850 g

Operating Conditions

Operating temperature: 0 to +40 °C

Storage temperature: −10 to +70 °C (J1)

Operating humidity: 10–90%, non-condensing

Storage humidity: 5–90%, non-condensing

Certifications and Compliance

CE Class A

FCC Class A

ICES-003

VCCI Class A

RoHS

UL / CB / LVD

Specifications such as power consumption, weight, Jumbo Frame size and DIP Switch functions may vary between hardware revisions.
