In stock

Cudy GS1018PS2 16-port Gigabit poe+ 2port Gigabit uplink+2port Gigabit SFP 200W Unmanaged Switch

SKU: 009077

Network switches

Features

Name	Description
Number of RJ45 Ports	16
Ethernet Port Speed	Gigabit Ethernet
Management Type	Unmanaged
PoE Support	No, IEEE 802.3af PoE+
Uplink Ports	Gigabit RJ45, SFP

MAC Addresses	2048
Jumbo Frames	15 KB
Power supply (W)	200 W, Built-In, 100–240 V AC
Dimensions	440 × 180 × 44 mm

66 830 ֏

or 3 533 ֏ / month

← Back to «Network switches»

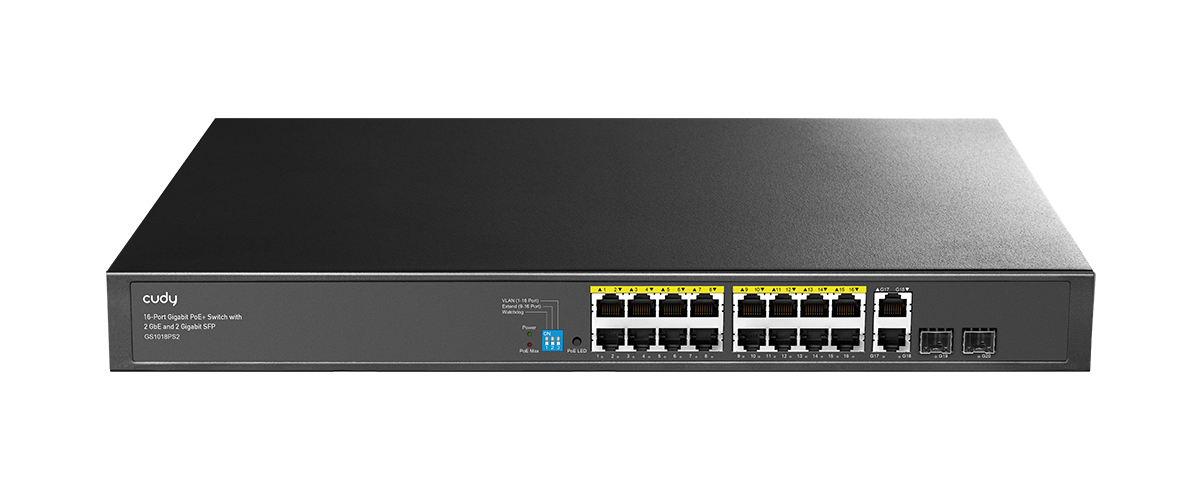

Cudy GS1018PS2 — 16-Port Gigabit PoE+ Switch with 2 Gigabit RJ45 Uplink and 2 Gigabit SFP
Device type: Gigabit PoE+ Ethernet Switch
Model: GS1018PS2
Hardware version: GS1018PS2 3.0
Management: Unmanaged
Total RJ45 ports: 18
SFP slots: 2
Total network interfaces: 20
Ethernet and Uplink
Ports 1–16: 16 × 10/100/1000 Mbps Gigabit RJ45 with PoE+
RJ45 Uplink: 2 × 10/100/1000 Mbps Gigabit RJ45
SFP Uplink: 2 × 1.25G SFP
All 18 RJ45 interfaces support Gigabit Ethernet. The two SFP slots are dedicated optical uplinks and their transmission distance depends on the installed SFP module.
PoE
PoE ports: 1–16
PoE standards: IEEE 802.3af / IEEE 802.3at
PoE mode: Mode A
Maximum power per PoE port: 30 W
PoE management: Intelligent Power Management
If the available power limit is exceeded, Intelligent Power Management can disconnect the most recently powered PoE device.
Operating Modes
Default Mode — normal Gigabit Ethernet switching.
VLAN Mode — isolates ports 1–16 from each other while retaining communication with the Uplink interfaces.
Extend Mode — applies to ports 9–16 and extends Ethernet/PoE transmission up to 250 m using Cat.5e or better cable, while limiting those ports to 10 Mbps.
PoE Watchdog — monitors connected PoE devices. If a client stops transmitting data for approximately five minutes, the Switch can restart the corresponding PoE port.
Cudy specifically warns against enabling Watchdog for devices performing an online automatic firmware upgrade.
Performance
Switching capacity: 40 Gbps
Packet forwarding rate: 29.76 Mpps
MAC address table: 2048 entries
Packet buffer: 3 Mbit
Jumbo Frame: 15 KB.
Network Standards
IEEE 802.3i — 10BASE-T
IEEE 802.3u — 100BASE-TX
IEEE 802.3ab — 1000BASE-T
IEEE 802.3z — 1000BASE-X
IEEE 802.3x — Flow Control
IEEE 802.3af — PoE
IEEE 802.3at — PoE+.
Power
Power input: 100–240 V AC, 50/60 Hz
Power supply: 200 W, built-in
Maximum switch consumption excluding PoE: 18 W
Power input: AC Inlet
Grounding: Three-Prong Plug.
Construction
Housing material: Metal
Installation: Desktop / 19" Rackmount
Height: 1U
Dimensions: 440 × 180 × 44 mm
Weight: 2257.1 g
Mounting brackets are included.
Protection
ESD protection:
Contact: 6 kV
Air: 8 kV
Surge protection:
Power: DM 2 kV / CM 4 kV
RJ45: CM 4 kV.
Environment
Operating temperature: 0 to +40 °C
Storage temperature: −40 to +70 °C
Operating humidity: 10–90%, non-condensing
Storage humidity: 10–95%, non-condensing

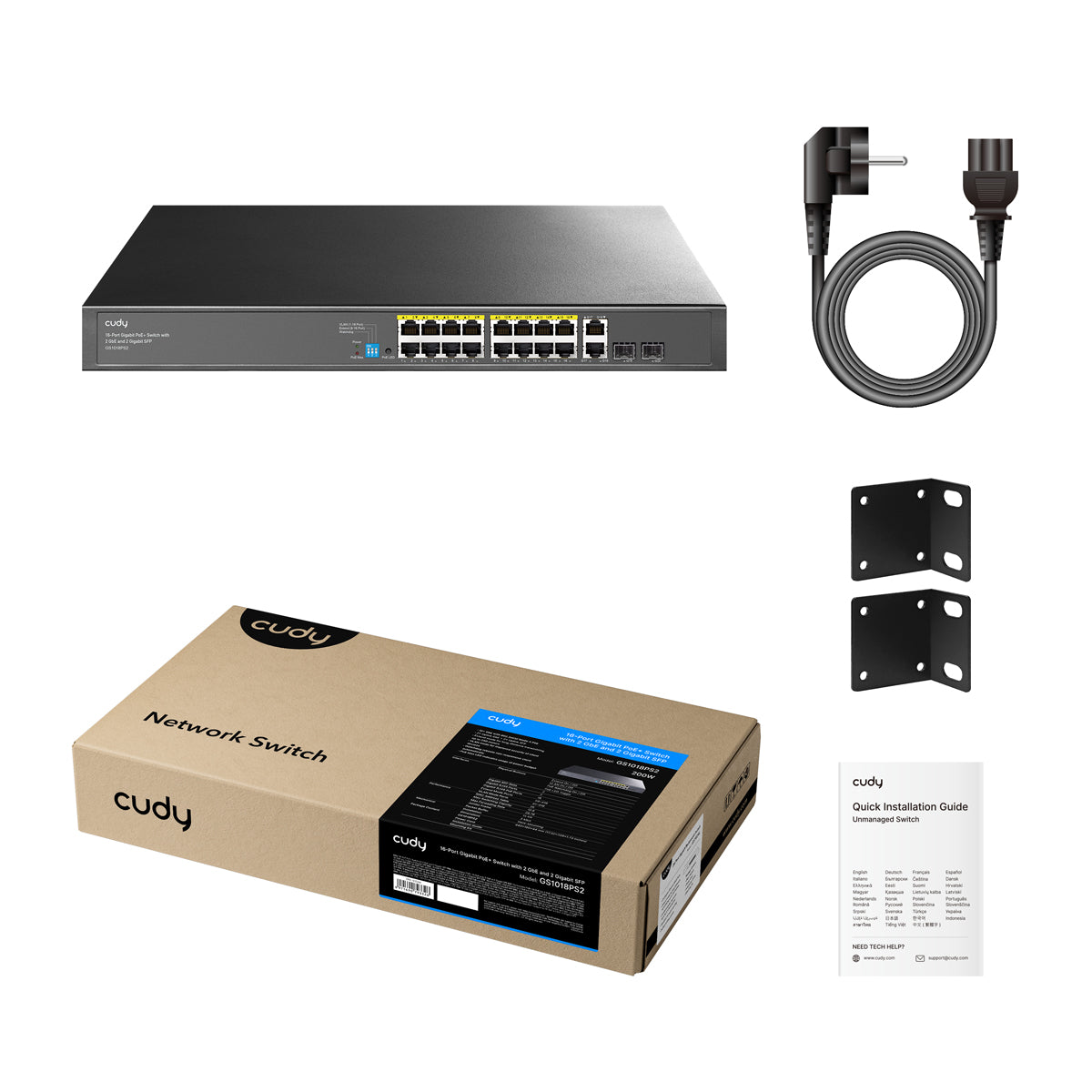

Package Contents
Cudy GS1018PS2
Power Cord
Rack Mounting Kit
Installation Guide
