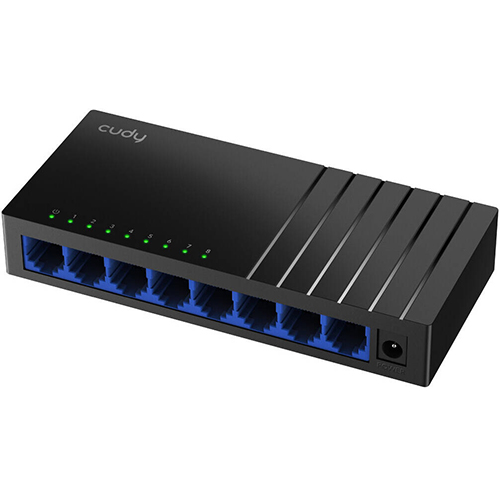

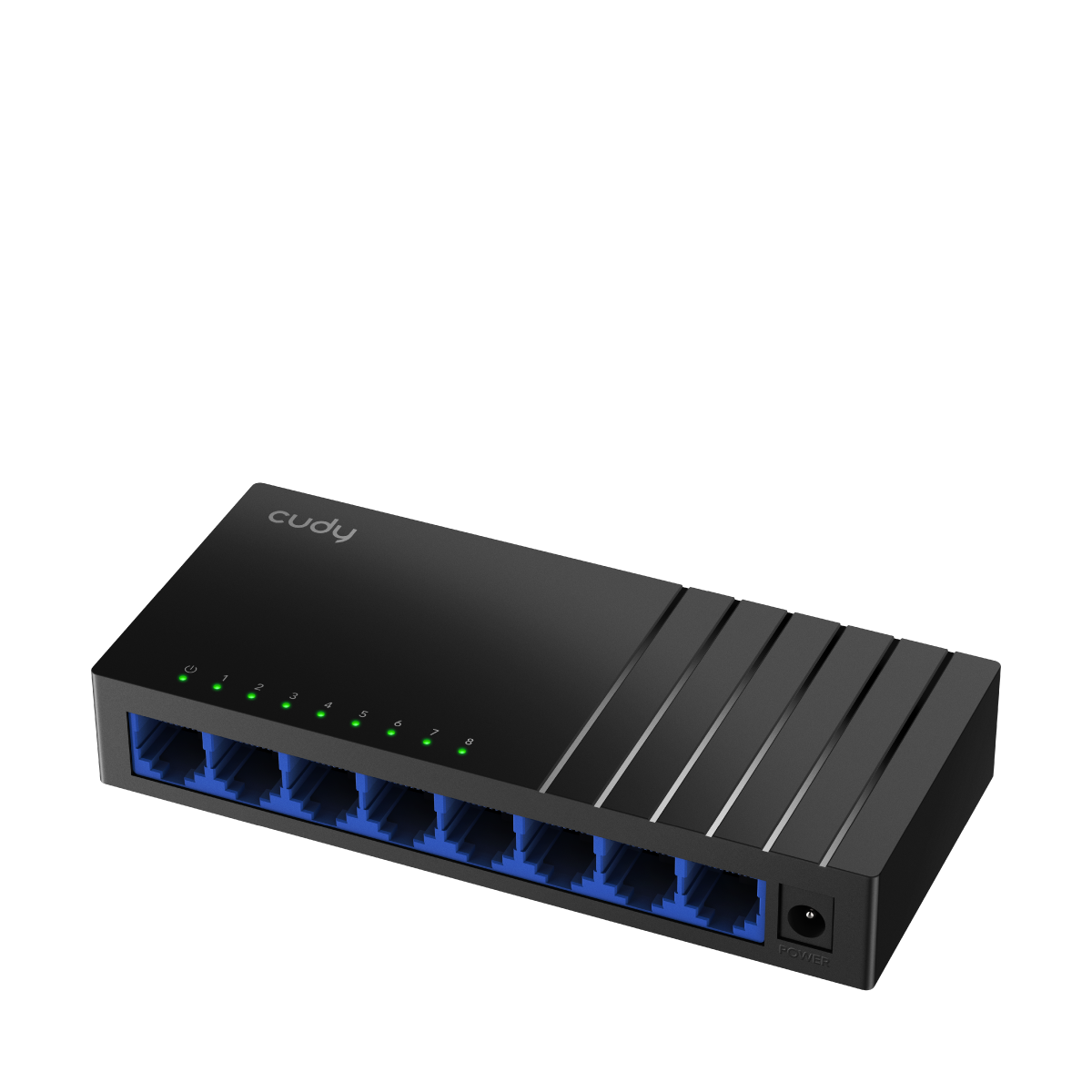

Cudy GS108D 8-port 10/100/1000Mbps Desktop Switch

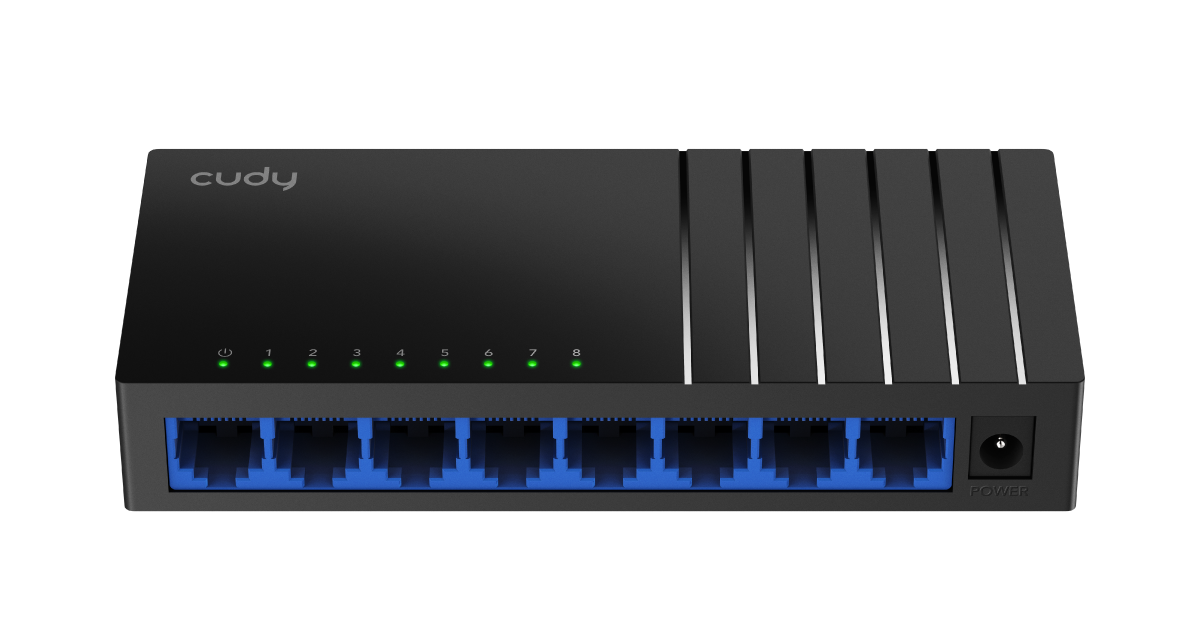

Cudy GS108D — 8-Port Gigabit Unmanaged Desktop Switch

Key Specifications:

Device type: Unmanaged Network Switch

Model: GS108D

Hardware version: GS108D 5.0

Number of RJ45 ports: 8

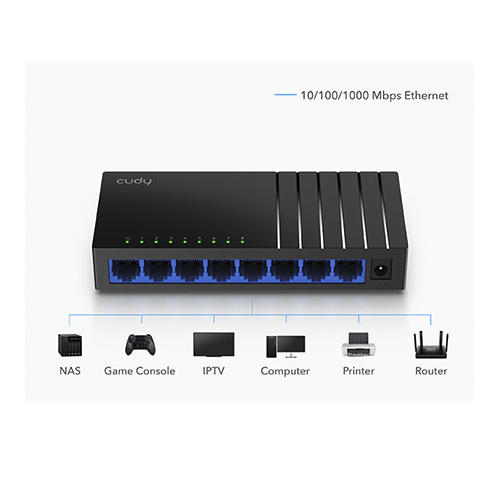

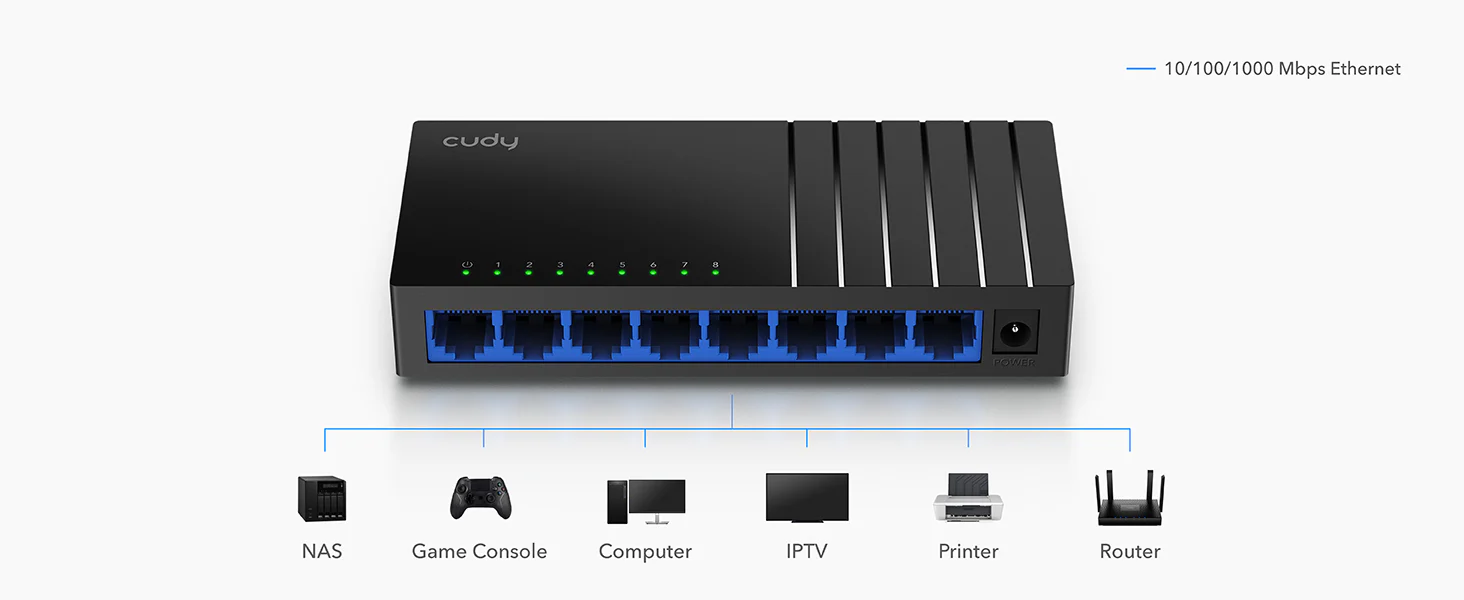

Ethernet port speed: 10/100/1000 Mbps

Port type: Gigabit RJ45

Management type: Unmanaged

Configuration: Plug and Play, no setup required

PoE support: No

Dedicated uplink ports: None

SFP/SFP+ ports: None

Maximum connection distance:

• up to 100 m at 10 Mbps;
• up to 100 m at 100 Mbps;
• up to 170 m at 1 Gbps using Cat.5e or higher cable.

The 170 m figure is the manufacturer’s stated maximum and depends on cable quality and installation conditions.

Switching capacity: 16 Gbps

Packet forwarding rate: 11.904 Mpps

MAC address table: 4096

Jumbo Frame: up to 15 KB

Packet buffer: 1.5 Mbit

Flow control: IEEE 802.3x Flow Control

Supported standards: IEEE 802.3i, 802.3u, 802.3ab and 802.3x

IGMP Snooping: supported

Loop detection: supported

Loop prevention: supported

Basic power saving: supported.

Enclosure material: plastic

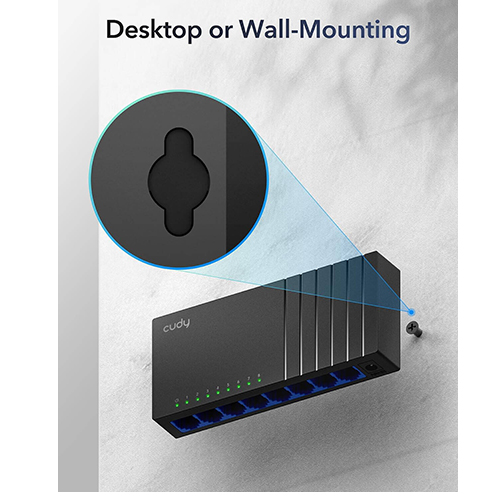

Installation: desktop or wall-mounted

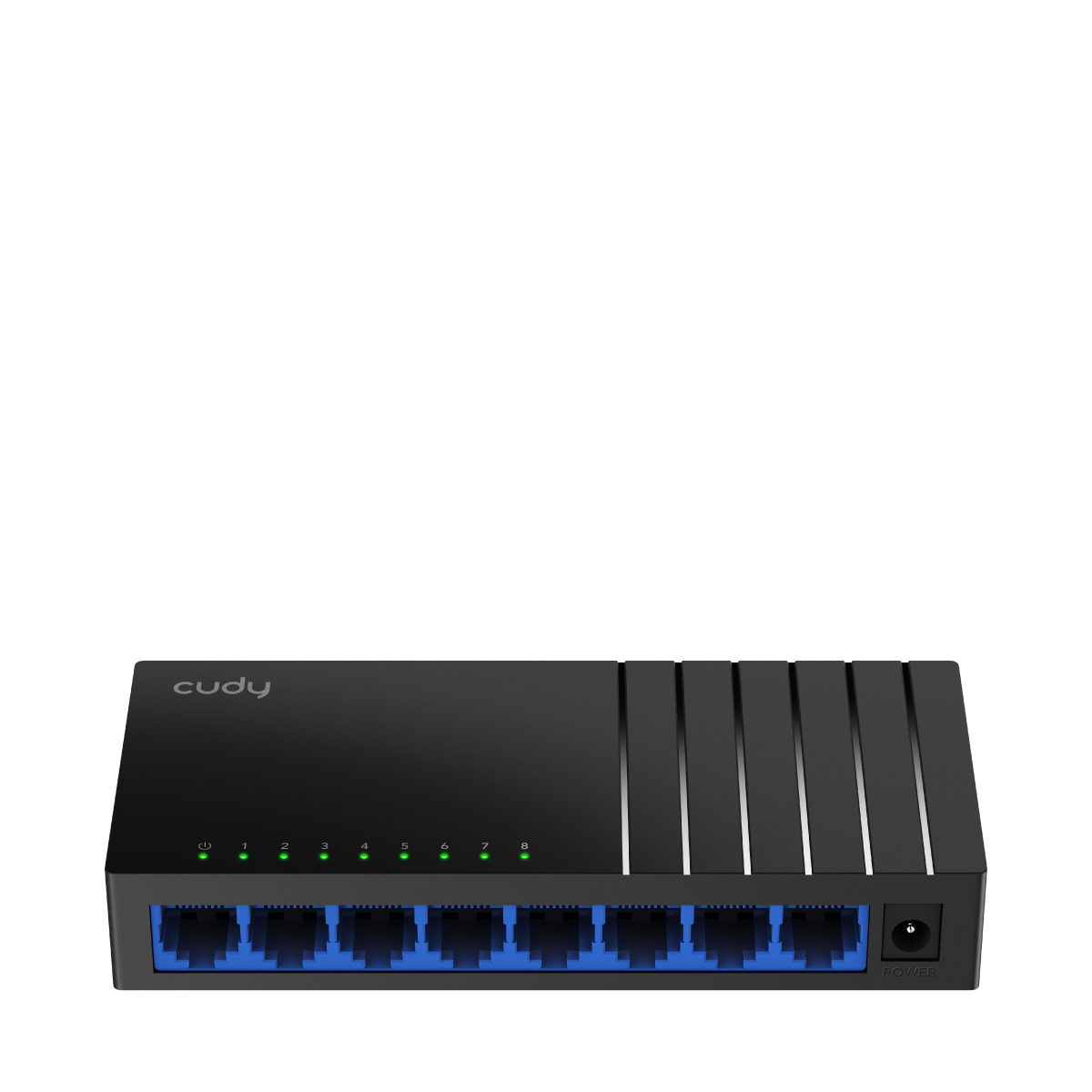

LED indicators: Power and Link/Activity for each Ethernet port

Power supply: external DC adapter

Switch power input: 5 V DC / 0.55 A

Adapter input: 100–240 V AC, 50/60 Hz

Power adapter: included

Maximum power consumption: 1.8 W

Idle power consumption: 0.3 W

Surge protection: up to 2 kV

ESD protection: 4 kV contact / 8 kV air

Operating temperature: 0 to +40 °C

Storage temperature: −40 to +70 °C

Operating humidity: 10–90% noncondensing

Dimensions: 138 × 61.5 × 24 mm

Weight: 80.5 g

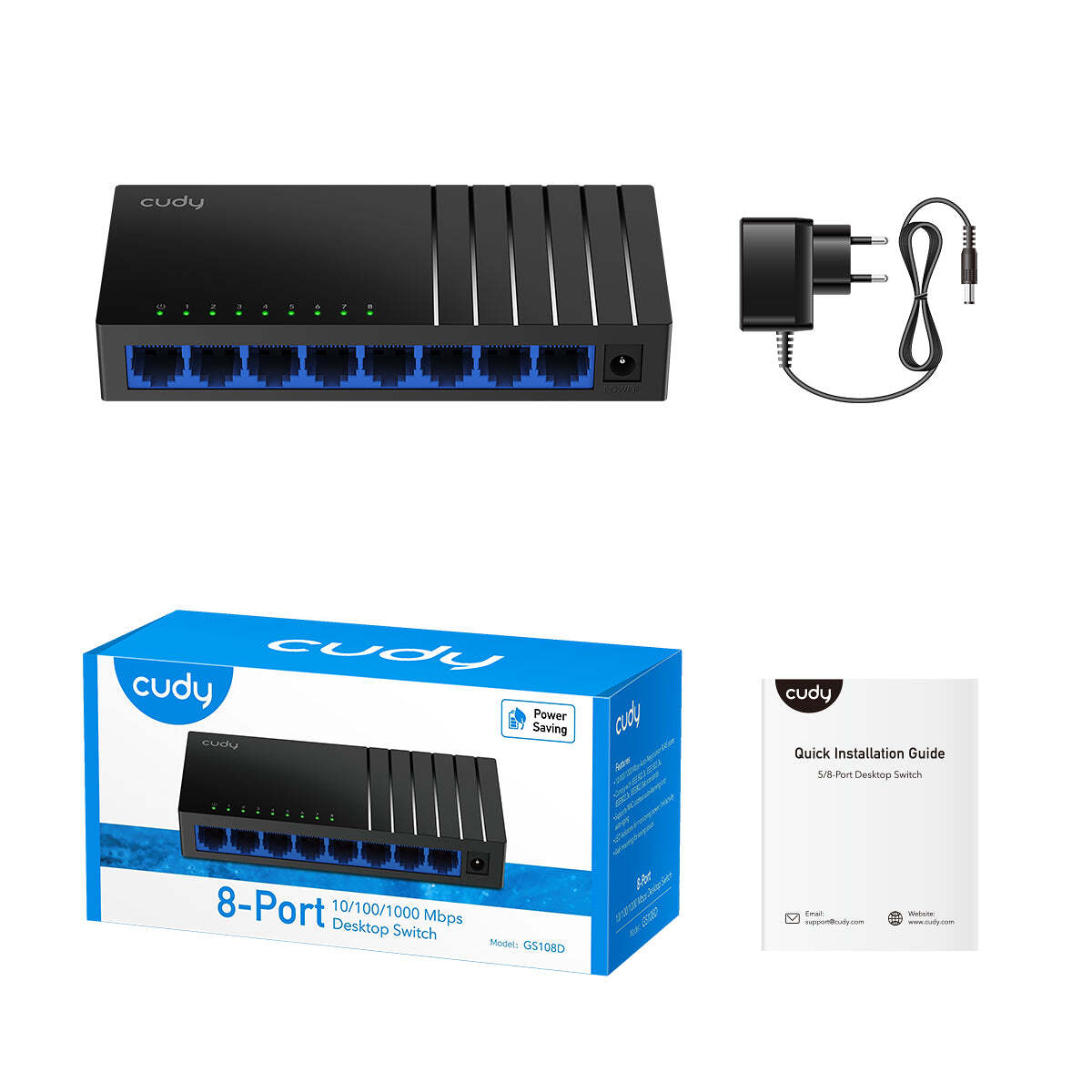

Package contents: switch, power adapter and installation guide.
