SKU: 2688
Network switches
or 1 604 ֏ / month
"

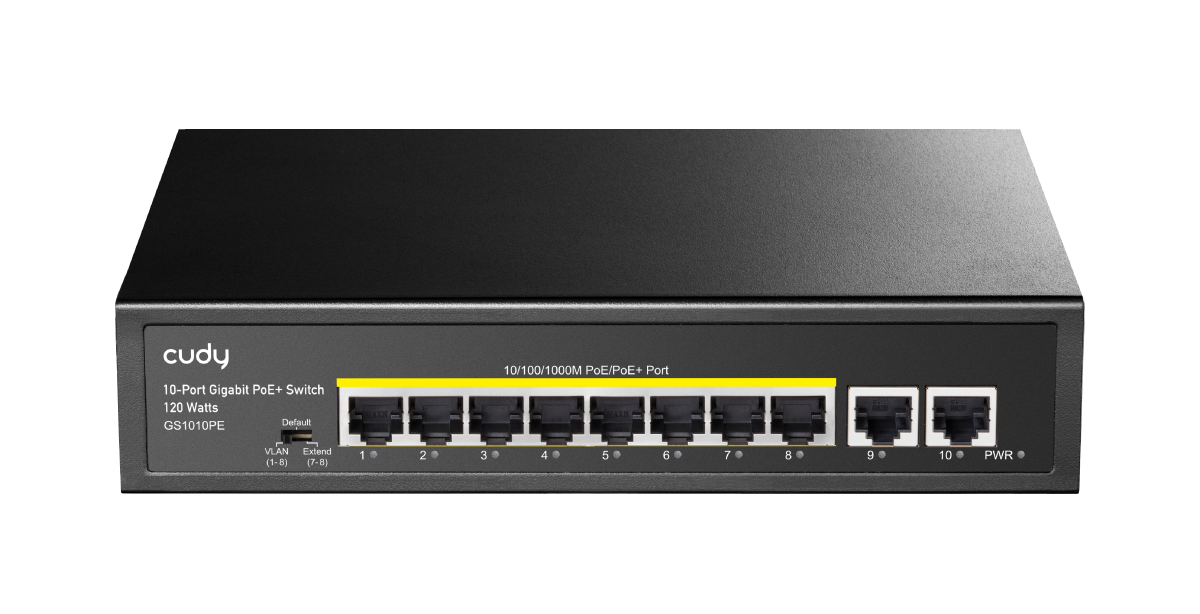

Model Version GS1010PE 1.0
Interfaces Gigabit RJ45 Ports 2
Gigabit RJ45 PoE Ports 8
Max Power on a Single PoE Port 30W

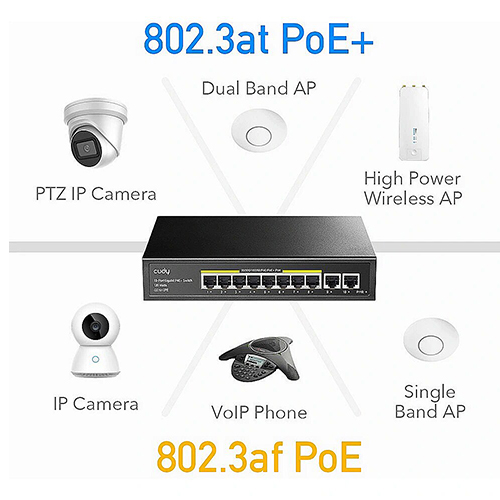

PoE Port Notes The PoE ports comply with IEEE 802.3at/af standards.
Extend Mode Ports #7~#8
VLAN Mode Ports #1~#8
LED Power
Link/ACT of Each Ethernet Port

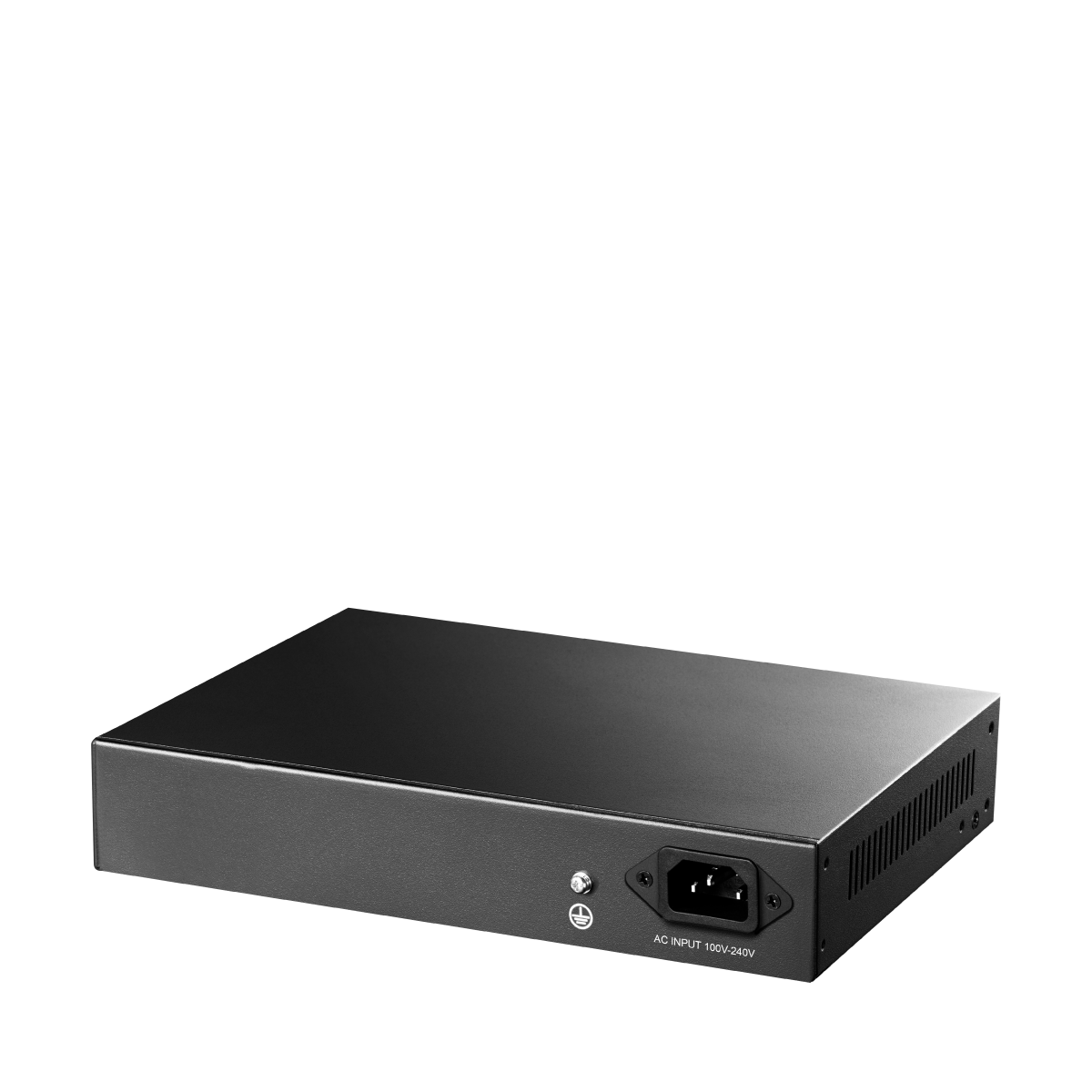

Power Input AC Inlet
Physical Buttons VLAN/Default/Extend DIP Switch
Physical Buttons Note The PoE Watchdog is on under the Extend mode and will attempt to reboot the plugged-in but inactive client.
Performance Copper Speed and Distance
Cat. 3 or higher cable: 100 meters at 10 Mbps
Cat. 5 or higher cable: 100 meters at 100 Mbps
Cat. 5e or higher cable: 100 meters at Gigabit
Cat. 5e or higher cable: 250 meters at 10 Mbps
Copper Speed and Distance Note 250-meter transmission is only available on the Extend Mode ports.
MAC Address Table 2048
Max Switching Capacity 20 Gbps
Packet Buffer 2 Mbit
Power Power Methods AC
AC 100-240V 50/60Hz
"
