In stock

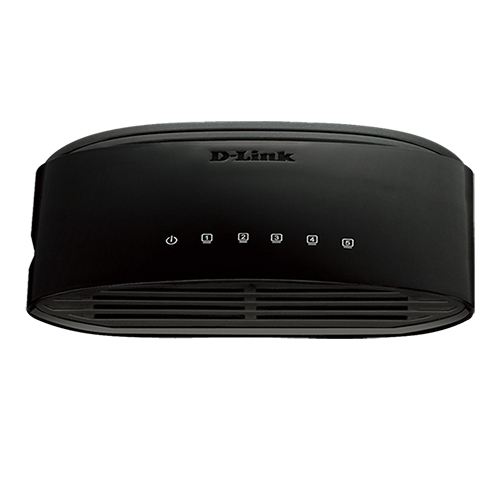

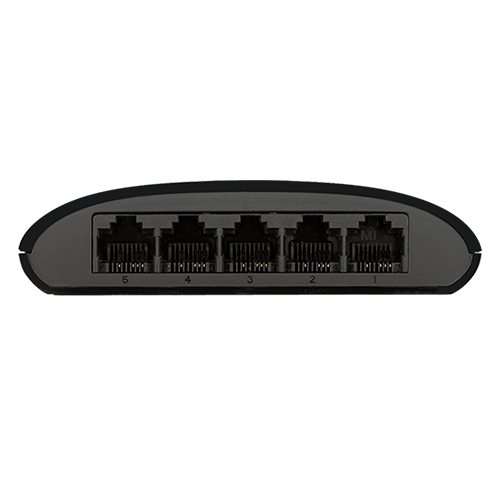

D-LINK DES-1005D 5-Port 10/100Mbps Switch

Name: D-LINK DES-1005D 5-Port 10/100Mbps Switch
Brand: D-Link
SKU: 006370
Price: 5170 AMD
Availability: InStock
Rating: 4.96 (1 reviews)

SKU: 006370

Network switches

Features

Name	Description
Number of RJ45 Ports	5
Ethernet Port Speed	Gigabit Ethernet
Management Type	Unmanaged
PoE Support	No
Uplink Ports	None

5 170 ֏

or 273 ֏ / month

← Back to «Network switches»

D-Link DES-1005D — 5-Port Fast Ethernet Unmanaged Desktop Switch
Key Specifications:
Device type: Unmanaged Network Switch
Model: DES-1005D
Hardware revision: Revision C
Switching layer: Layer 2
Number of RJ45 ports: 5
Ethernet port speed: 10/100 Mbps
Port type: Fast Ethernet RJ45
Auto-negotiation: supported
Half-Duplex and Full-Duplex operation: supported
Auto-MDI/MDIX: supported on all ports
Management type: Unmanaged
Configuration: Plug and Play, no setup required
PoE support: No
Dedicated uplink ports: None
SFP/SFP+ ports: None.
Performance
Switching capacity: 1 Gbps
Full-Duplex transfer rate: up to 200 Mbps per port — 100 Mbps in each direction
Forwarding rate at 10 Mbps: 14,880 pps per port
Forwarding rate at 100 Mbps: 148,800 pps per port
MAC address table: 2K
Packet buffer: 64 KB
Switching method: Store-and-Forward
Automatic MAC address learning: supported
Flow control: IEEE 802.3x Flow Control.
Supported standards
IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX
IEEE 802.3x Flow Control
ANSI/IEEE 802.3 NWay Auto-Negotiation
IEEE 802.3az Energy Efficient Ethernet
Network protocol: CSMA/CD
Network topology: Star.
Cabling and distance
10BASE-T cabling: UTP Cat.3 or higher
100BASE-TX cabling: UTP Cat.5 or higher
Maximum Ethernet cable length: up to 100 m
Crossover cable: not required due to Auto-MDI/MDIX.
Power and enclosure
Power supply: external AC/DC adapter
Power adapter output: 5 V DC / 1.2 A
Standby power consumption: approximately 1.8 W at AC input
Maximum power consumption: approximately 3.8 W at AC input
Enclosure material: plastic
Form factor: desktop
Cooling: fanless passive cooling
LED indicators: Power and Link/Activity for each port
Dimensions: 125.3 × 83.4 × 29.1 mm
Operating temperature: 0 to +50 °C
Storage temperature: −10 to +70 °C
Operating humidity: 10–90% noncondensing
Storage humidity: 5–90% noncondensing
Certifications: FCC Class B, CE Class B, ICES-003, VCCI, C-Tick, cUL and CB
RoHS compliant: Yes.
