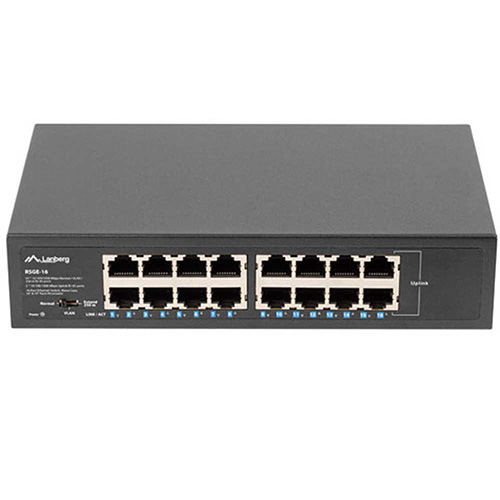

Lanberg RSGE-16 16port 10/100/1000Mbps RACK Switch

Name: Lanberg RSGE-16 16port 10/100/1000Mbps RACK Switch
Brand: Lanberg
SKU: 007262
Price: 37020 AMD
Availability: BackOrder
Rating: 4.97 (2 reviews)

SKU: 007262

Network switches

Features

Name	Description
Number of RJ45 Ports	16
Ethernet Port Speed	10/100/1000 Mbps — Gigabit Ethernet
Management Type	Unmanaged
PoE Support	No
Uplink Ports	Gigabit RJ45

— not available for cart checkout; contact us to order.

37 020 ֏

or 1 957 ֏ / month

← Back to «Network switches»

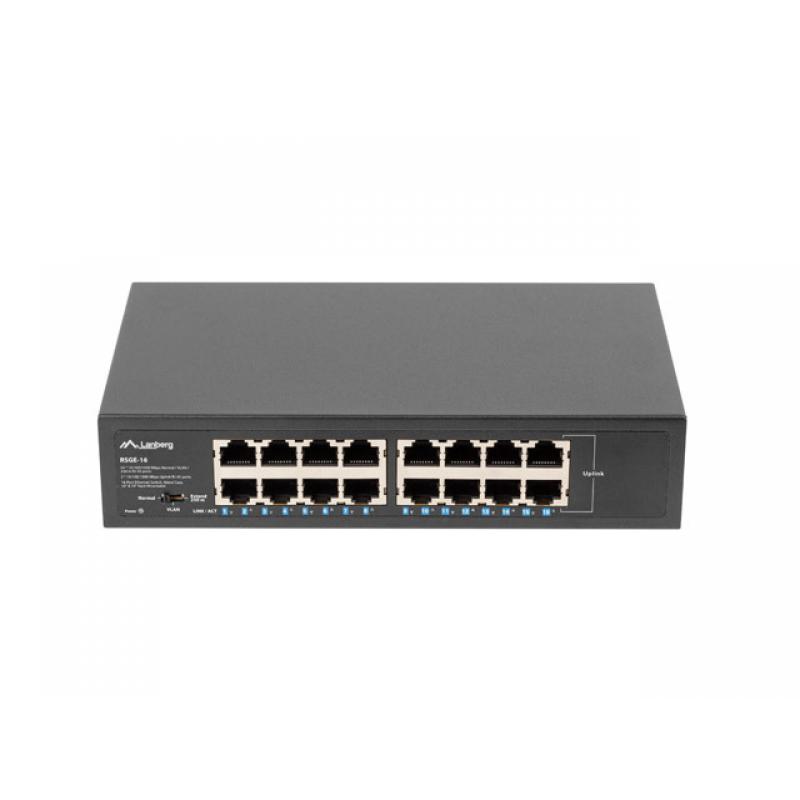

Lanberg RSGE-16 — 16-Port Gigabit Ethernet Unmanaged Rack Switch
Key Specifications:
Device type: Unmanaged Network Switch
Model: RSGE-16
Manufacturer code: RSGE-16
EAN: 5901969429015
Number of RJ45 ports: 16
Ethernet port speed: 10/100/1000 Mbps
Port type: Gigabit RJ45
Maximum network link speed: 1 Gbps
Management type: Unmanaged
Configuration: Plug and Play
PoE support: No
SFP/SFP+ ports: None
Dedicated optical uplinks: None.
Operating modes
Operating modes: Standard, VLAN and Extend
Standard Mode: normal operation of all 16 Gigabit Ethernet ports.
VLAN Mode: Ports 1–14 are isolated from one another and communicate only with Ports 15–16, which act as uplinks.
Extend Mode: extends Ethernet transmission distance up to 250 m while limiting the connection speed to 10 Mbps. It is intended mainly for surveillance and access-control installations.
Performance
Switching capacity: 32 Gbps
MAC address table: 8K
Packet buffer: 4.1 Mbit
Flow control: IEEE 802.3x Flow Control
Auto-Negotiation: supported
Gigabit Ethernet: supported on all 16 ports.
Supported standards
IEEE 802.3i 10BASE-T
IEEE 802.3u 100BASE-TX
IEEE 802.3ab 1000BASE-T
IEEE 802.3x Flow Control
Gigabit Ethernet.
Protection
Ethernet port surge protection: up to 2 kV
Enclosure protection rating: IP20.
Power and enclosure
Power supply: integrated AC power supply
Input voltage: 100–240 V AC
Maximum power consumption: 9.6 W
Enclosure material: metal
Cooling: passive with ventilation openings
Form factor: Rack Mount
Rack compatibility: 10" and 19"
Height: 1U
10" and 19" rack-mounting brackets: included
Dimensions: 200 × 118 × 44 mm
Weight: 0.84 kg
Operating temperature: 0 to +50 °C
Storage/environment temperature: −20 to +70 °C
Humidity: 5–95%
Manufacturer warranty: 24 months.
