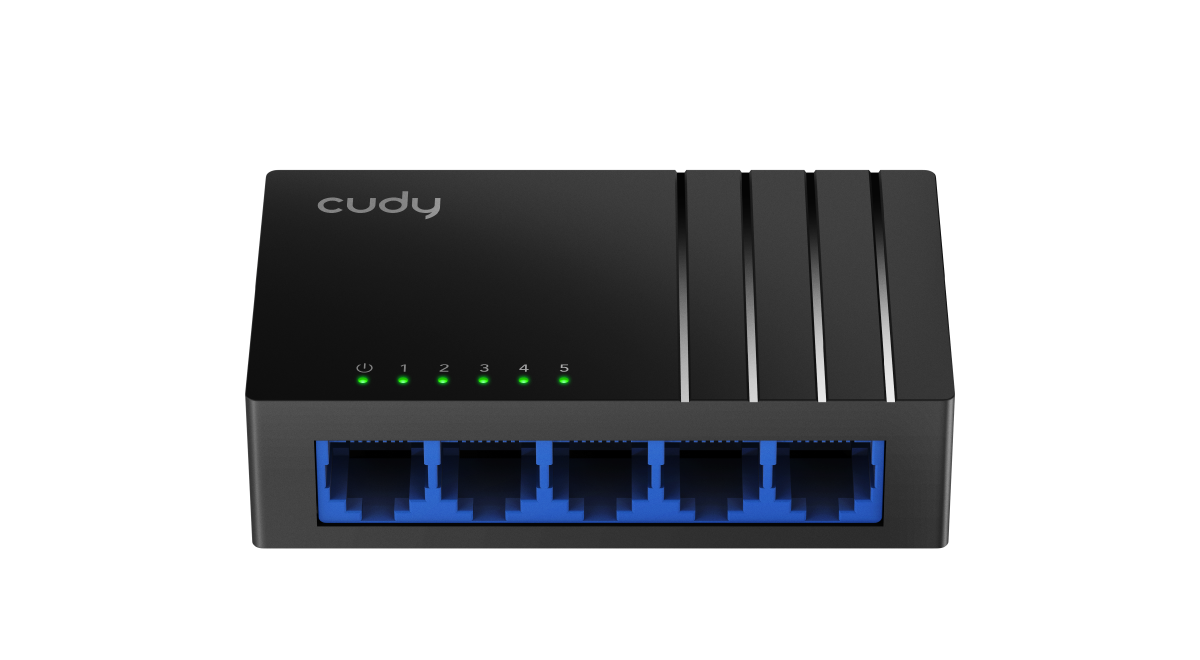

Cudy GS105D — 5-Port Gigabit Unmanaged Desktop Switch

Cudy GS105D — 5-Port Gigabit Unmanaged Desktop Switch

General Specifications

Device type: Gigabit Ethernet Switch

Model: GS105D

Hardware version: GS105D 5.0

Management type: Unmanaged

Switching layer: Layer 2

Installation: Desktop / Wall Mount

Ethernet Ports

Number of Ethernet ports: 5 × RJ45

Ethernet speed: 10/100/1000 Mbps

Maximum port speed: 1 Gbps

Auto-Negotiation: Supported

Auto-MDI/MDIX: Supported

Full Duplex: Supported

Half Duplex: Supported

PoE support: No

Dedicated Uplink ports: None

SFP / SFP+ ports: None

Network Performance

Switching capacity: 10 Gbps

Packet forwarding rate: 7.44 Mpps

MAC address table: 2048 entries

Packet buffer: 1 Mbit

Jumbo Frame: 9 KB

Forwarding method: Store-and-Forward

Network Standards

IEEE 802.3i — 10BASE-T

IEEE 802.3u — 100BASE-TX

IEEE 802.3ab — 1000BASE-T

IEEE 802.3x — Flow Control

Network Features

Plug and Play: Supported

IGMP Snooping: Supported

Flow Control: Supported

Auto-Negotiation: Supported

Auto-MDI/MDIX: Supported

Automatic power saving: Supported

Ethernet Transmission Distance

10 Mbps: Up to 100 m with Cat.3 or higher

100 Mbps: Up to 100 m with Cat.5 or higher

1000 Mbps: Up to 140 m with Cat.5e or higher

Power

Power input: 5V DC / 0.55A

Power connector: DC Jack

External power adapter: 100–240V AC, 50/60 Hz

Maximum power consumption: 1.2 W

Idle power consumption: 0.2 W

Physical Specifications

Housing material: Plastic

Cooling: Passive / Fanless

Installation: Desktop / Wall Mount

LED indicators: Power, Link/ACT for each port

Dimensions: 88 × 52.5 × 24 mm

Weight: 57.1 g

Protection and Environment

ESD protection: Contact 4 kV / Air 8 kV

Surge protection: 2 kV

MTBF: 200,000 hours

Operating temperature: 0 to +40 °C

Storage temperature: −40 to +70 °C

Operating humidity: 10–90%, non-condensing

Storage humidity: 5–90%, non-condensing

Package Contents

Cudy GS105D

Power Adapter

Installation Guide
