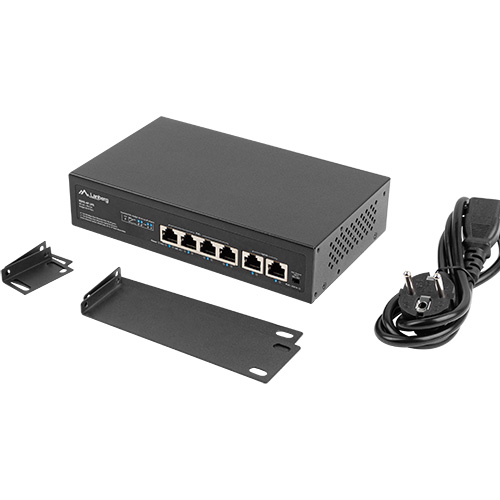

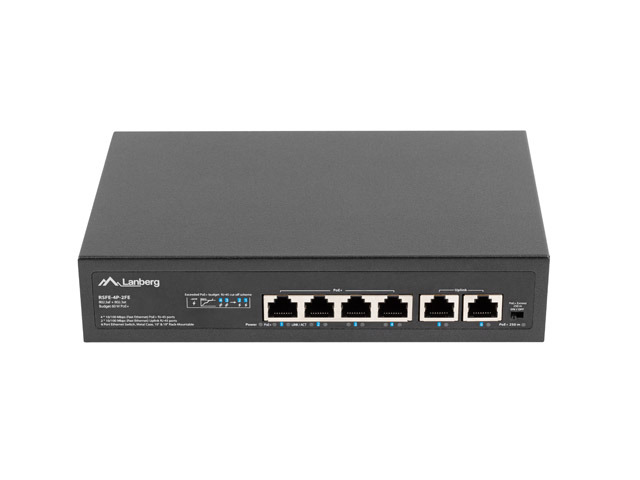

Lanberg RSFE-4P-2FE-60 10/100Mbps Rack PoE+Switch

Name: Lanberg RSFE-4P-2FE-60 10/100Mbps Rack PoE+Switch
Brand: Lanberg
SKU: 007261
Price: 15930 AMD
Availability: InStock
Rating: 4.88 (1 reviews)

SKU: 007261

Network switches

Features

Name	Description
Number of RJ45 Ports	6
Ethernet Port Speed	10/100 Mbps
Management Type	Unmanaged
PoE Support	IEEE 802.3af PoE, IEEE 802.3af PoE+
Uplink Ports	10/100 Mbps Fast Ethernet RJ45

15 930 ֏

or 842 ֏ / month

← Back to «Network switches»

Lanberg RSFE-4P-2FE-60 — 4-Port Fast Ethernet PoE+ Switch with Two Fast Ethernet Uplink Ports, 60 W
Key Specifications:
Device type: Unmanaged PoE+ Network Switch
Model: RSFE-4P-2FE-60
Manufacturer code: RSFE-4P-2FE-60
EAN: 5901969428797
Management type: Unmanaged
Configuration: Plug and Play
Primary application: IP surveillance, VoIP, access control and other PoE installations
Total RJ45 ports: 6
PoE ports: 4 × Fast Ethernet RJ45
Uplink ports: 2 × Fast Ethernet RJ45
Ethernet port speed: 10/100 Mbps
Maximum network link speed: 100 Mbps
Gigabit Ethernet: Not supported
SFP/SFP+ ports: None.
PoE
PoE standards: IEEE 802.3af PoE and IEEE 802.3at PoE+
Number of PoE ports: 4
Maximum power per PoE port: 30 W
Total PoE budget: 60 W
IEEE 802.3bt PoE++: Not supported
The available PoE budget supports up to:
4 × IEEE 802.3af devices at up to 15 W each;
2 × IEEE 802.3at devices at up to 30 W each.
When the PoE budget is exceeded, the switch starts disabling power from the highest-numbered PoE ports until total consumption returns within the 60 W limit.
Extend Mode
Extend Mode: supported
Maximum transmission distance: up to 250 m
Data rate in Extend Mode: up to 10 Mbps
Long-range PoE+ transmission: supported
The PoE+ Extend 250 m mode allows remote cameras and other PoE devices to operate over a single Ethernet cable at distances up to 250 m, with the data rate limited to 10 Mbps.
Performance
Switching capacity: 1.2 Gbps
MAC address table: 1K
Packet buffer: 0.4 Mbit
Flow control: IEEE 802.3x Flow Control
Plug and Play: supported.
Supported standards
IEEE 802.3i 10BASE-T
IEEE 802.3u 100BASE-TX
IEEE 802.3x Flow Control
IEEE 802.3af PoE
IEEE 802.3at PoE+.
Protection
Ethernet port surge protection: up to 4 kV
Enclosure protection rating: IP20
Intelligent PoE port disconnection: supported.
Power and enclosure
Power supply: integrated AC power supply
Input voltage: 100–240 V AC
Total PoE budget: 60 W
Maximum power consumption: 65 W
Enclosure material: metal
Cooling: passive with ventilation openings
Fan: None
Form factor: Rack Mount
Rack compatibility: 10" and 19"
Height: 1U
10" and 19" rack-mounting brackets: included
Dimensions: 200 × 118 × 44.45 mm
Weight: 0.73 kg
Operating temperature: +5 to +55 °C
Operating humidity: 0–85%
Manufacturer warranty: 24 months.
