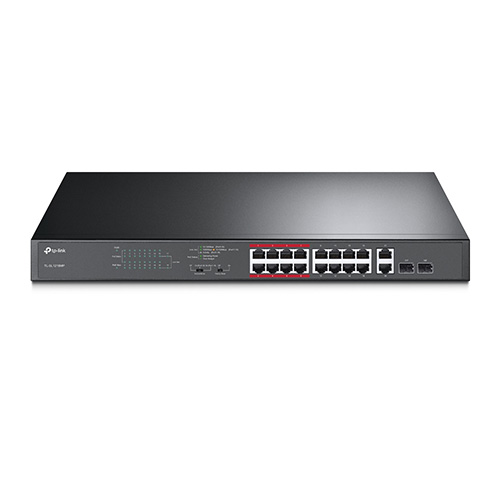

TP-Link TL-SL1218MP 16Port PoE Switch

Name: TP-Link TL-SL1218MP 16Port PoE Switch
Brand: TP-Link
SKU: 007271
Price: 77490 AMD
Availability: InStock
Rating: 4.87 (2 reviews)

SKU: 007271

Network switches

Features

Name	Description
Number of RJ45 Ports	18
Ethernet Port Speed	10/100 Mbps, Gigabit Ethernet
Management Type	Unmanaged
PoE Support	IEEE 802.3af PoE, IEEE 802.3af PoE+
Uplink Ports	Gigabit RJ45, SFP

77 490 ֏

or 4 097 ֏ / month

← Back to «Network switches»

TP-Link TL-SL1218MP — 16-Port Fast Ethernet PoE+ Unmanaged Switch with Two Gigabit Combo Uplink Ports
Key Specifications:
Device type: Unmanaged PoE+ Network Switch
Model: TL-SL1218MP
Hardware version: V6.0
Primary application: IP surveillance and PoE device powering
Form factor: Rack Mount 1U
Total RJ45 ports: 18
PoE ports: 16 × 10/100 Mbps RJ45, Ports 1–16
Gigabit RJ45 ports: 2 × 10/100/1000 Mbps, Ports 17–18
Optical ports: 2 × 1G SFP, Ports 17F–18F
Optical port type: Combo with RJ45 Ports 17–18
Maximum simultaneously active network interfaces: 18
SFP modules: not included.
PoE
PoE standards: IEEE 802.3af PoE and IEEE 802.3at PoE+
Number of PoE ports: 16
Maximum output per PoE port: up to 30 W
Total PoE budget: 250 W
IEEE 802.3bt PoE++: not supported
24V Passive PoE: not supported
Intelligent power management: supported
PoE Auto Recovery: supported on Ports 1–16
When the total PoE budget is exceeded, the switch maintains power to higher-priority ports and disconnects power from ports with higher port numbers.
Operating modes
Default Mode: normal data transmission at distances up to 100 m.
Extend Mode: extends data and PoE transmission through Ports 1–16 up to 250 m while limiting their speed to 10 Mbps.
Priority Mode: provides higher traffic priority to Ports 1–8 for critical applications such as video surveillance.
Isolation Mode: isolates client Ports 1–16 from one another while maintaining communication with the uplink ports.
Recovery Mode: monitors PoE devices and automatically reboots the power of a dropped or unresponsive device.
Performance
Switching capacity: 7.2 Gbps
Packet forwarding rate: 5.36 Mpps
MAC address table: 8K
Jumbo Frame: up to 10 KB
Switching method: Store-and-Forward
Automatic MAC learning and aging: supported
Flow control: IEEE 802.3x Flow Control.
Management
Management type: Unmanaged
Configuration: Plug and Play, no setup required
Web interface: not supported
Omada Controller management: not supported
Configurable IEEE 802.1Q VLANs: not supported
Extend, Priority, Isolation and Recovery modes: controlled by physical switches.
Power and enclosure
Power supply: integrated AC power supply
Input voltage: 100–240 V AC, 50/60 Hz
Maximum V6.0 power consumption: 299.96 W with PoE load
Cooling: active cooling
Number of fans: 2
Acoustic noise: approximately 38.8–45 dBA
Enclosure material: metal
Installation: standard 19-inch rack
Enclosure height: 1U
Physical security lock: supported
Dimensions: 440 × 180 × 44 mm
Operating temperature: 0 to +50 °C
Storage temperature: −40 to +70 °C
Operating humidity: 10–90% noncondensing
Certifications: CE, FCC and RoHS
Package contents: switch, power cord, installation guide, two rack-mount brackets and mounting hardware.
