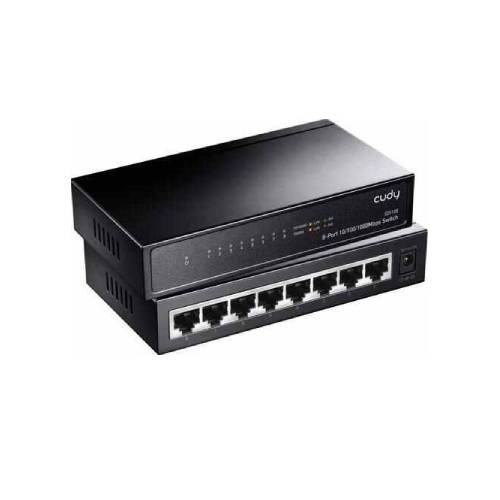

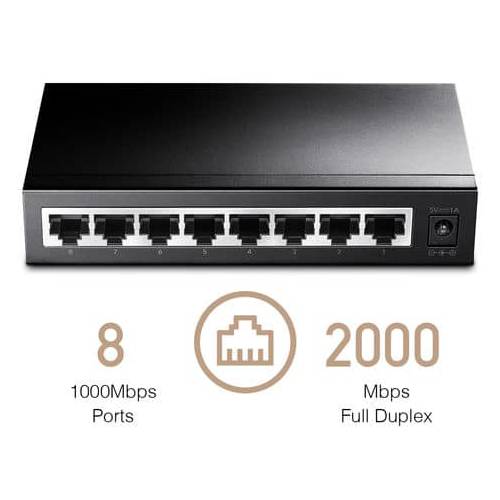

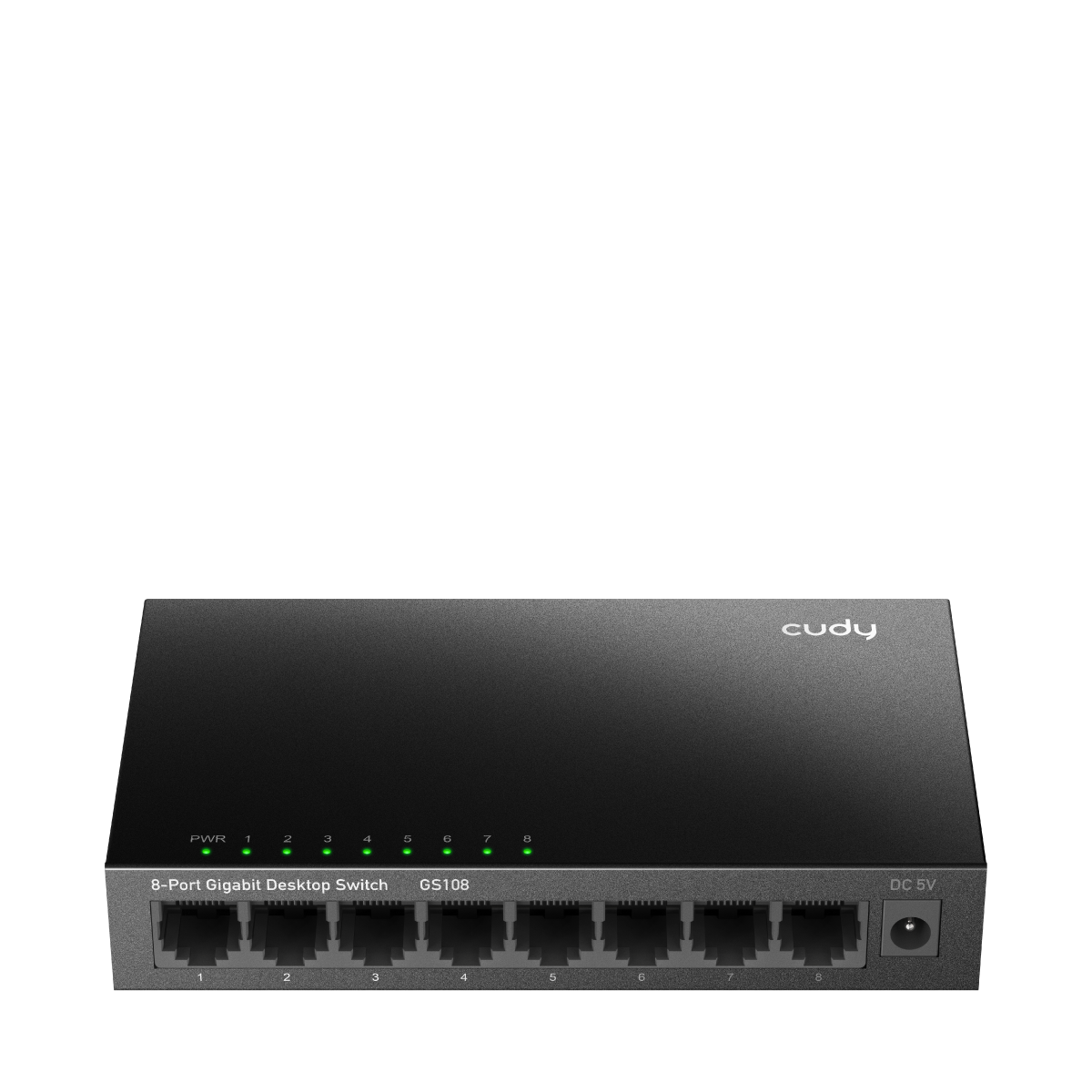

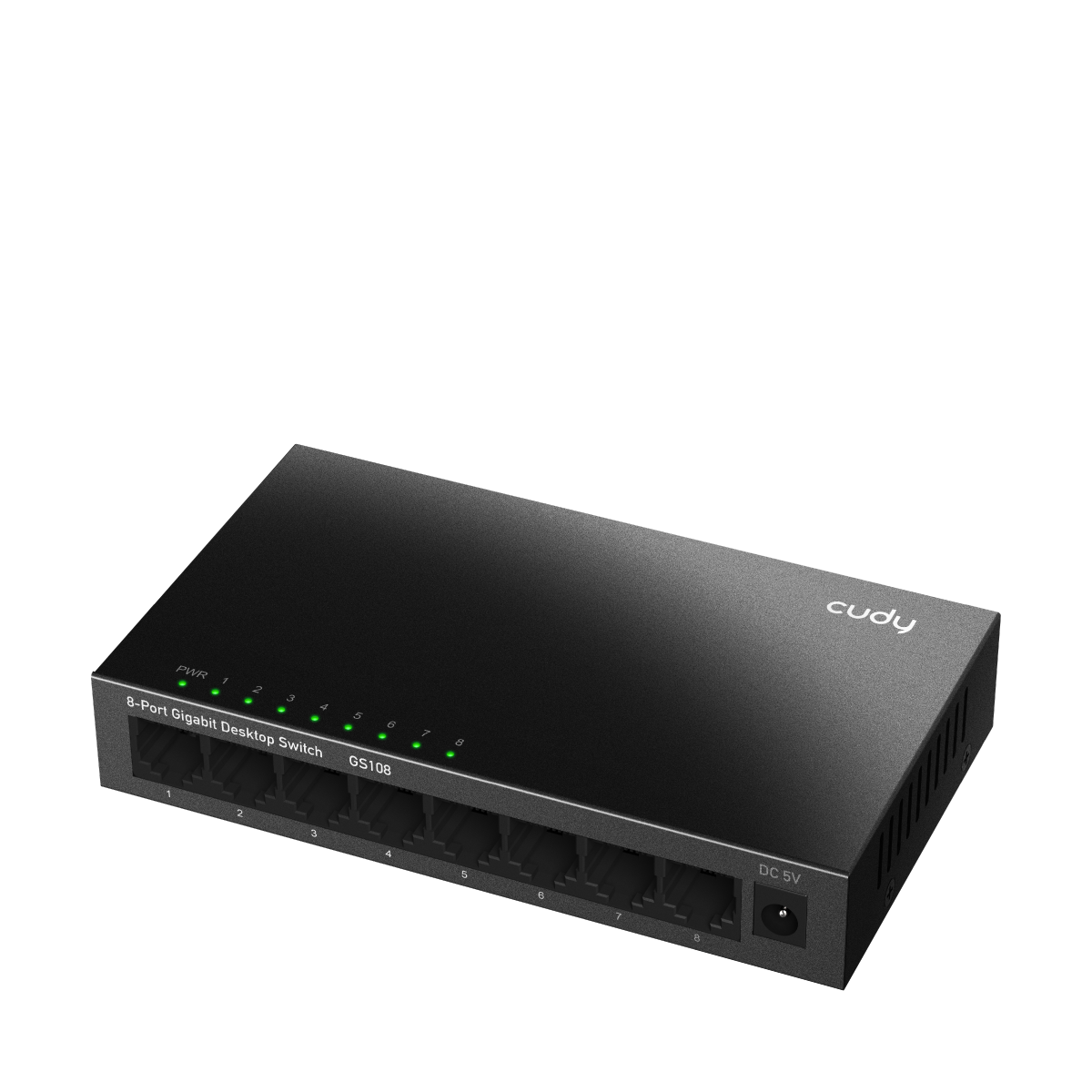

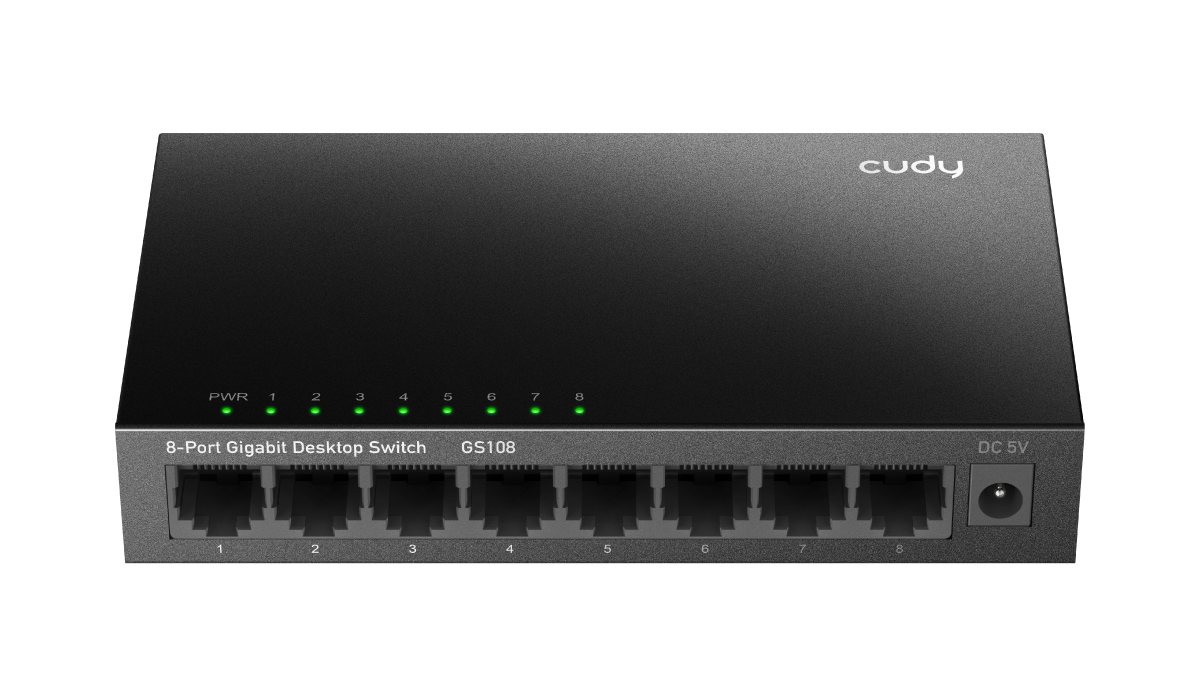

Cudy GS108 8-port 10/100/1000Mbps Desktop Switch

SKU: 008025

Network switches

Features

Name Description
Number of RJ45 Ports 8
Ethernet Port Speed 10/100/1000 Mbps — Gigabit Ethernet
Management Type Unmanaged
PoE Support No
Uplink Ports None
10 760 ֏

or 569 ֏ / month

← Back to «Network switches»

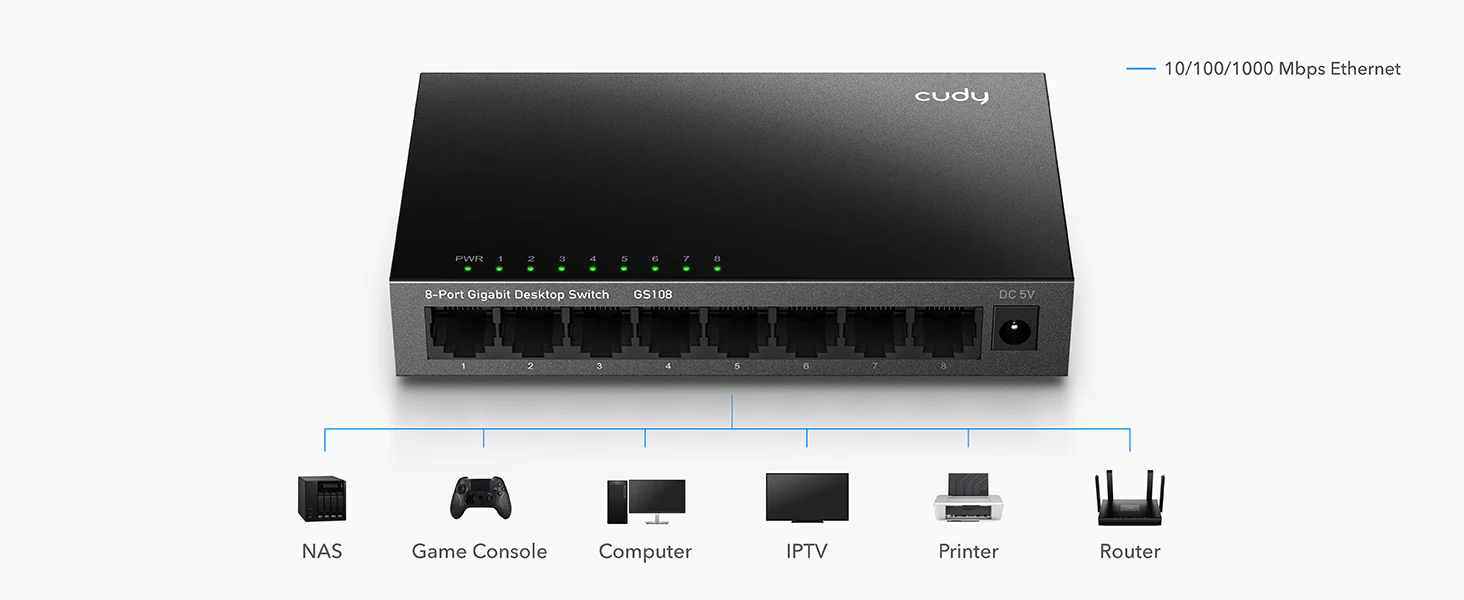

  • Cudy GS108 — 8-Port Gigabit Unmanaged Desktop Switch
  • Key Specifications:
  • Device type: Unmanaged Network Switch
  • Model: GS108
  • Hardware version: GS108 5.0
  • Number of RJ45 ports: 8
  • Ethernet port speed: 10/100/1000 Mbps
  • Port type: Gigabit RJ45
  • Management type: Unmanaged
  • Configuration: Plug and Play, no setup required
  • PoE support: No
  • Dedicated uplink ports: None
  • Optical ports: None
  • Maximum connection distance:
  • up to 100 m at 10 Mbps;
  • up to 100 m at 100 Mbps;
  • up to 170 m at 1 Gbps using Cat.5e or higher cable.
  • Switching capacity: 16 Gbps
  • Packet forwarding rate: 11.904 Mpps
  • MAC address table: 4096
  • Jumbo Frame: up to 15 KB
  • Packet buffer: 1.5 Mbit
  • Flow control: IEEE 802.3x Flow Control
  • Supported standards: IEEE 802.3i, 802.3u, 802.3ab and 802.3x
  • IGMP Snooping: supported
  • Loop detection: supported
  • Loop prevention: supported
  • Power-saving mode: supported
  • LED indicators: Power and Link/Activity for each port
  • Cooling: fanless passive cooling
  • Enclosure material: metal
  • Installation: desktop or wall-mounted
  • Power supply: external DC adapter
  • Switch power input: 5 V DC / 0.55 A
  • Adapter input: 100–240 V AC, 50/60 Hz
  • Maximum power consumption: 1.8 W
  • Idle power consumption: 0.3 W
  • Surge protection: up to 2 kV
  • ESD protection: 4 kV contact / 8 kV air
  • Operating temperature: 0 to +40 °C
  • Storage temperature: −40 to +70 °C
  • Operating humidity: 10–90% noncondensing
  • Dimensions: 138 × 78 × 25 mm
  • Weight: 205.9 g

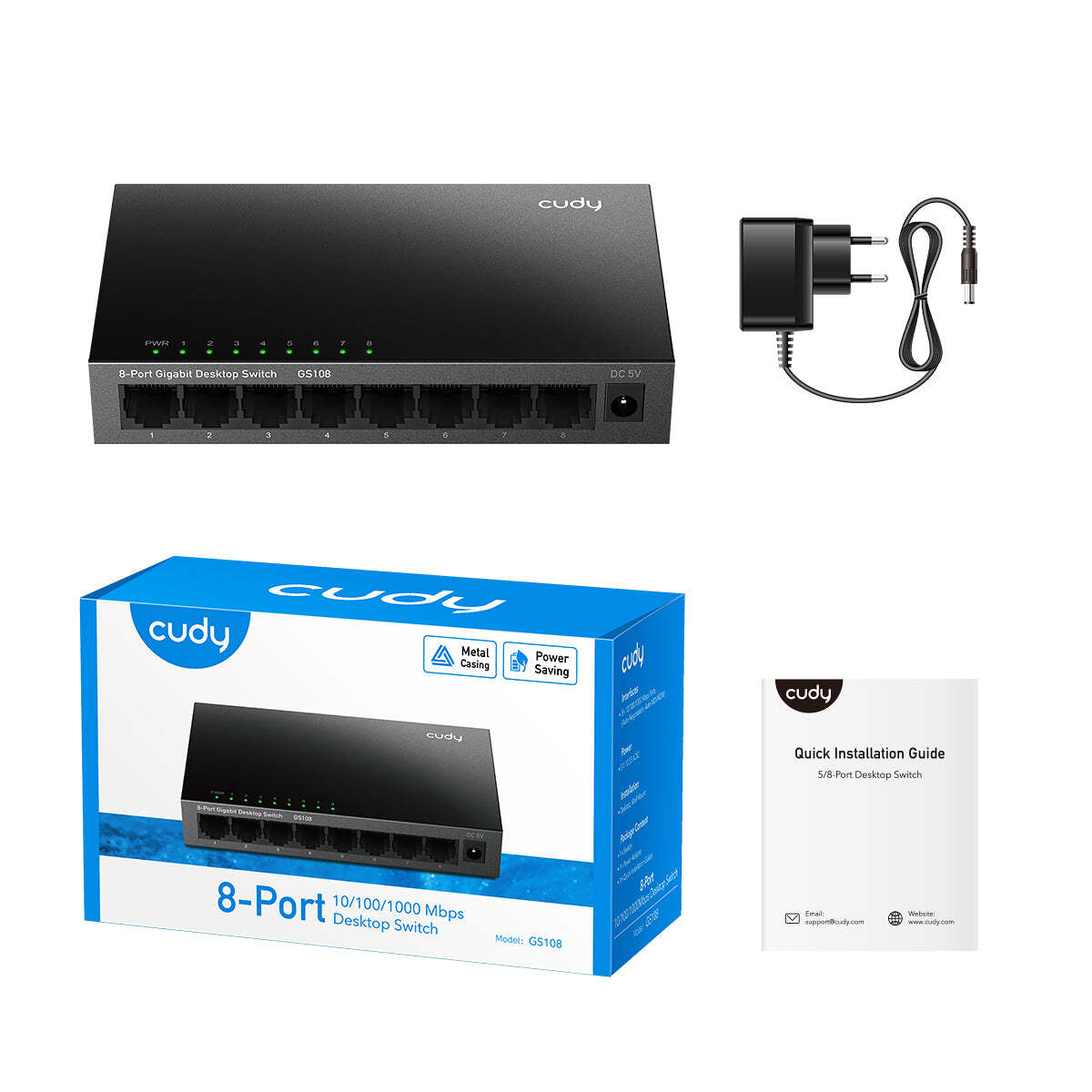

  • Package contents: switch, power adapter and installation guide.
