Mercusys MS105G 5-Port 10/100/1000 Mbps Switch

Name: Mercusys MS105G 5-Port 10/100/1000 Mbps Switch
Brand: Mercusys
SKU: 006503
Price: 9270 AMD
Availability: BackOrder
Rating: 4.90 (2 reviews)

SKU: 006503

Network switches

Features

Name	Description
Number of RJ45 Ports	5
Ethernet Port Speed	10/100/1000 Mbps — Gigabit Ethernet
Management Type	Unmanaged
PoE Support	No
Uplink Ports	None

— not available for cart checkout; contact us to order.

9 270 ֏

or 490 ֏ / month

← Back to «Network switches»

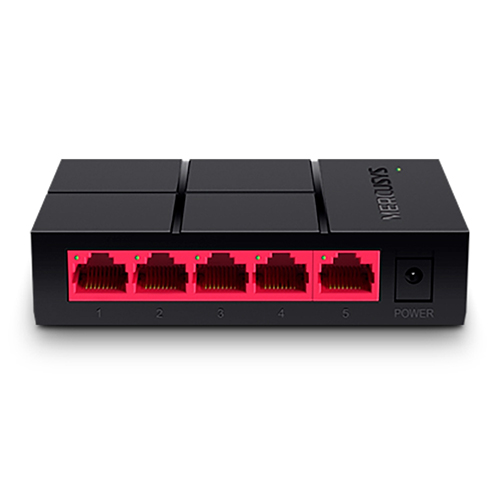

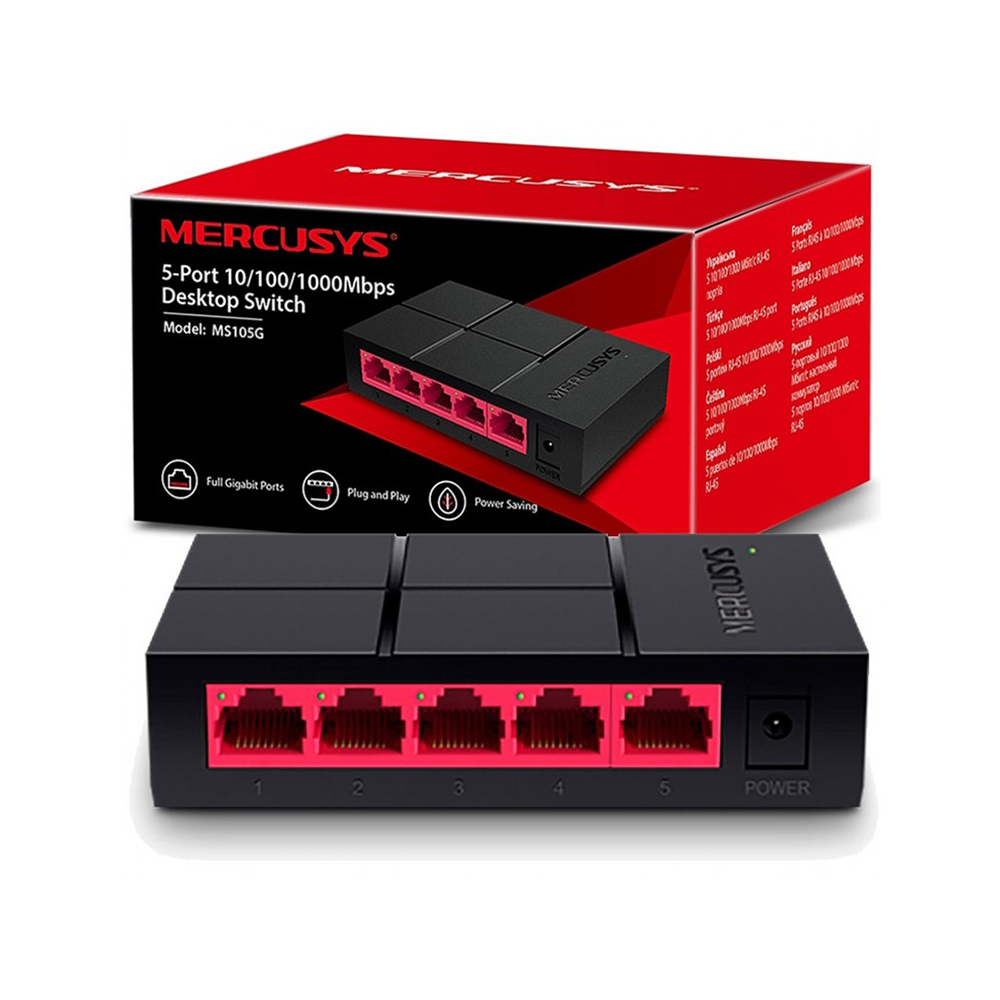

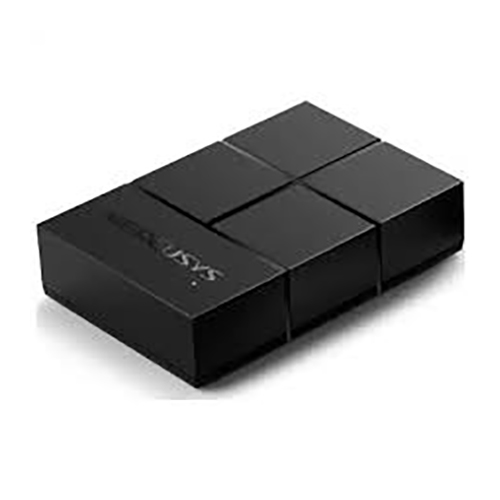

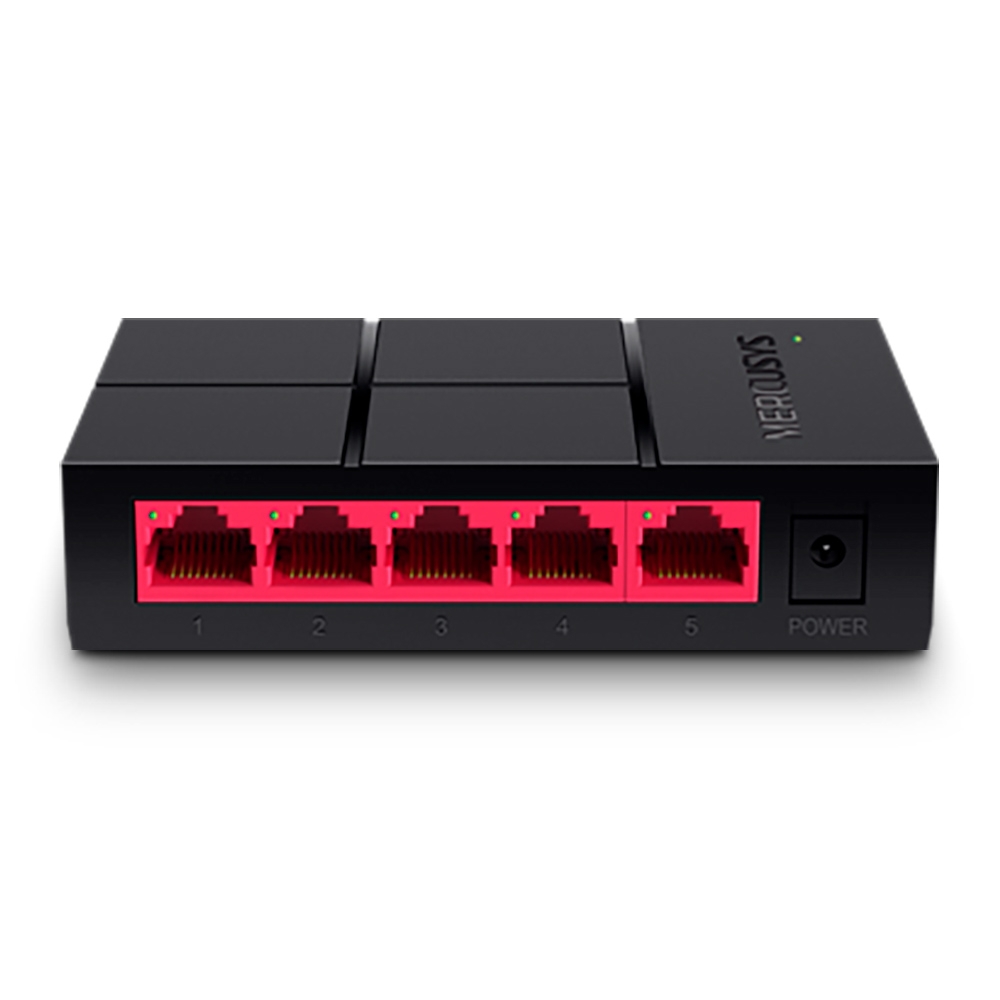

MERCUSYS MS105G — 5-Port Gigabit Ethernet Unmanaged Desktop Switch
Key Specifications:
Device type: Unmanaged Network Switch
Model: MS105G
Hardware version used: V3
Number of RJ45 ports: 5
Ethernet port speed: 10/100/1000 Mbps
Port type: Gigabit RJ45
Auto-Negotiation: supported
Auto-MDI/MDIX: supported
Management type: Unmanaged
Configuration: Plug and Play, no setup required
PoE support: No
Dedicated uplink ports: None
SFP/SFP+ ports: None.
Performance
Switching capacity: 10 Gbps
Half-Duplex data rates: 10/100/1000 Mbps
Full-Duplex data rates: 20/200/2000 Mbps aggregate in both directions
Buffer capacity: 1 Mbit
Jumbo Frame: up to 9 KB
Transfer method: Store-and-Forward
MAC Address Learning: supported.
Supported standards
IEEE 802.3
IEEE 802.3u
IEEE 802.3x
Network protocol: CSMA/CD.
Power and enclosure
Power supply: external DC adapter
Switch power input: 5 V DC / 0.6 A
Cooling: fanless passive cooling
Form factor: compact desktop
Dimensions: 105 × 70 × 24.9 mm
LED indicators: Power and Ethernet Ports 1–5.
Package contents: MERCUSYS MS105G, power adapter and Quick Installation Guide.
