Cudy GS1024L 24port Gigabit 1U RM VLAN Switch

SKU: 008130

Network switches

Features

Name	Description
Number of RJ45 Ports	24
Ethernet Port Speed	10/100/1000 Mbps — Gigabit Ethernet
Management Type	Unmanaged
PoE Support	No
Uplink Ports	Gigabit RJ45

27 680 ֏

or 1 463 ֏ / month

← Back to «Network switches»

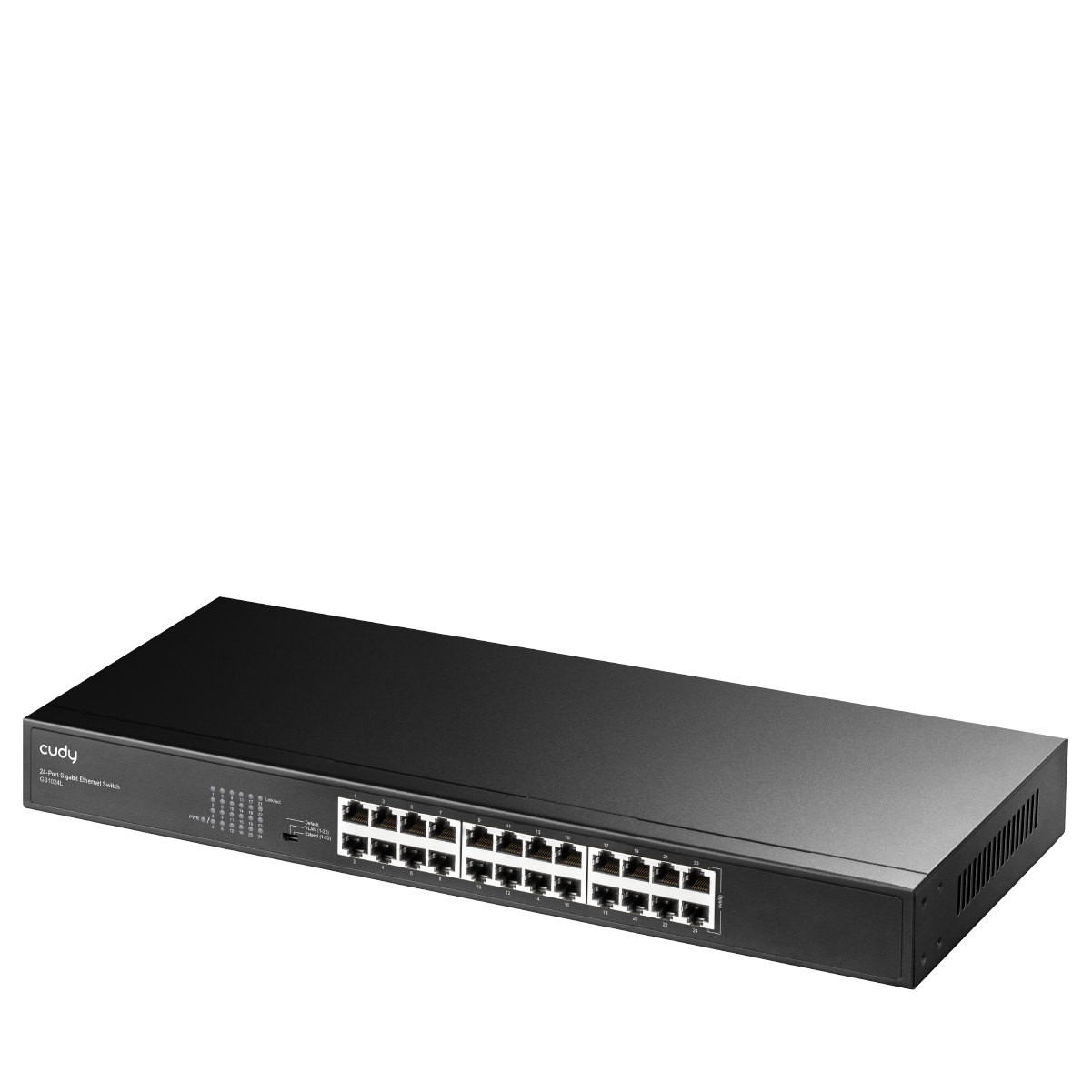

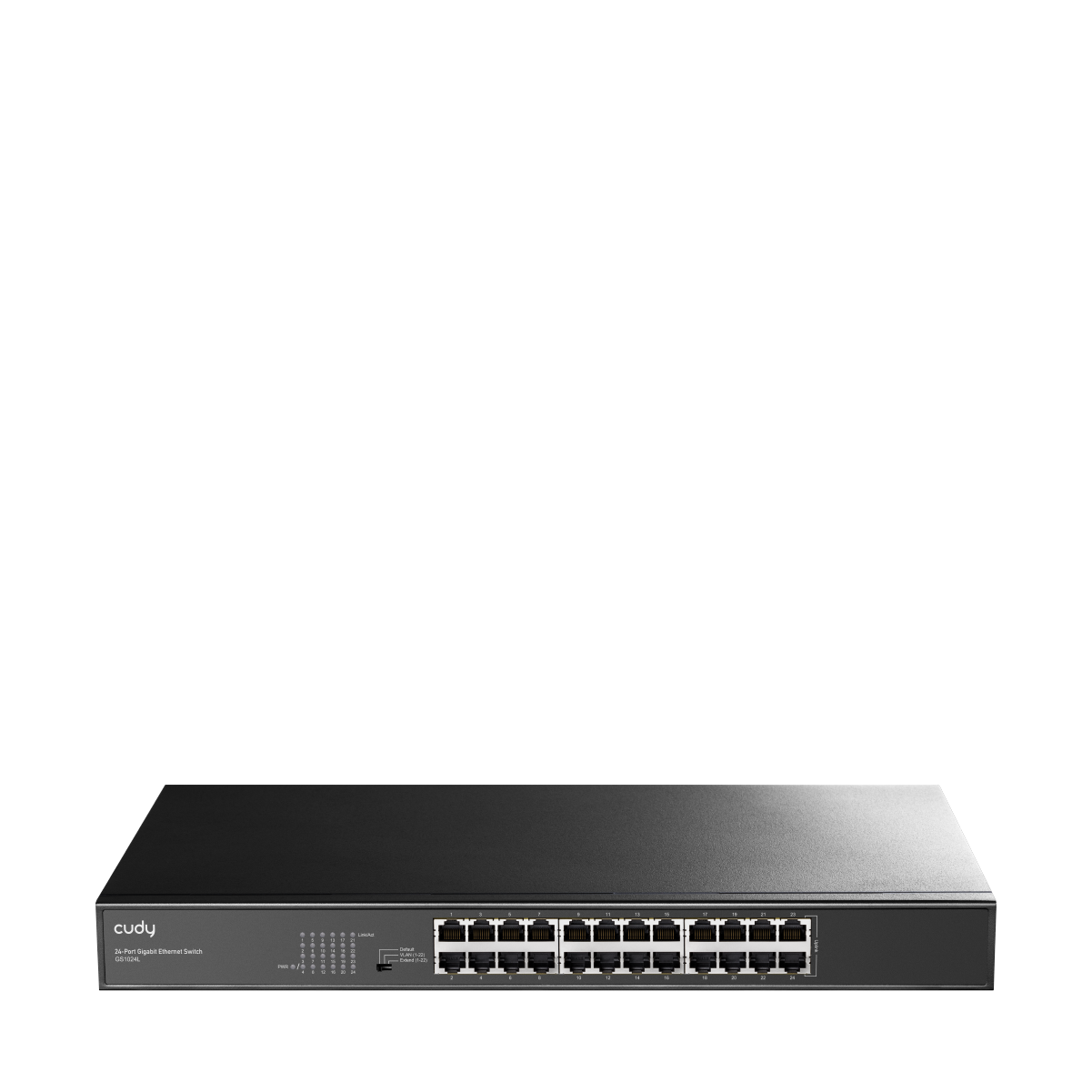

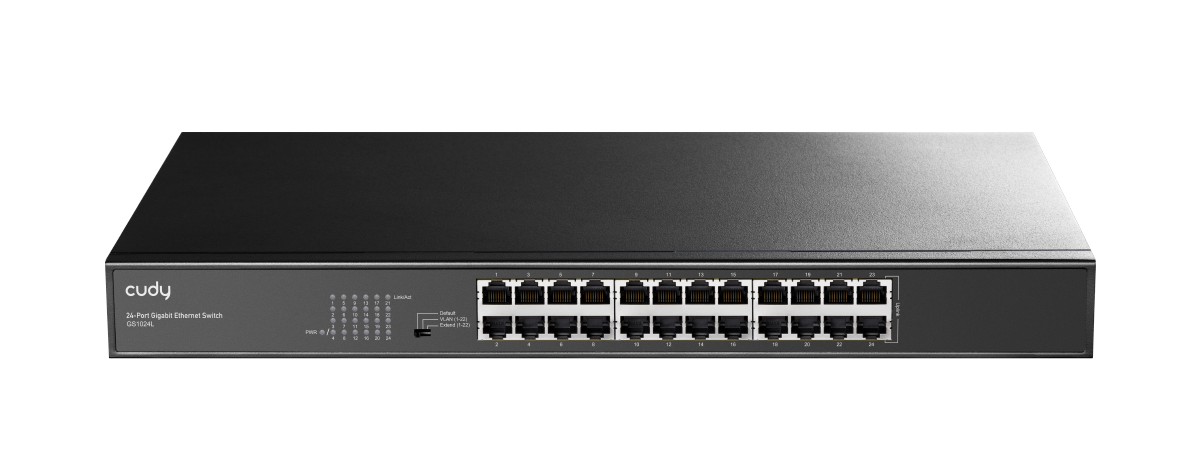

Cudy GS1024L — 24-Port Gigabit Unmanaged 1U Switch with VLAN and Extend Mode
Key Specifications:
Device type: Unmanaged Network Switch
Model: GS1024L
Model version: GS1024L 1.0
Number of RJ45 ports: 24
Ethernet port speed: 10/100/1000 Mbps
Port type: Gigabit RJ45
Auto-negotiation: supported
Management type: Unmanaged
Web management: not supported
PoE support: No
Optical ports: None
Uplink ports: Gigabit RJ45, ports 23–24 in special operating modes

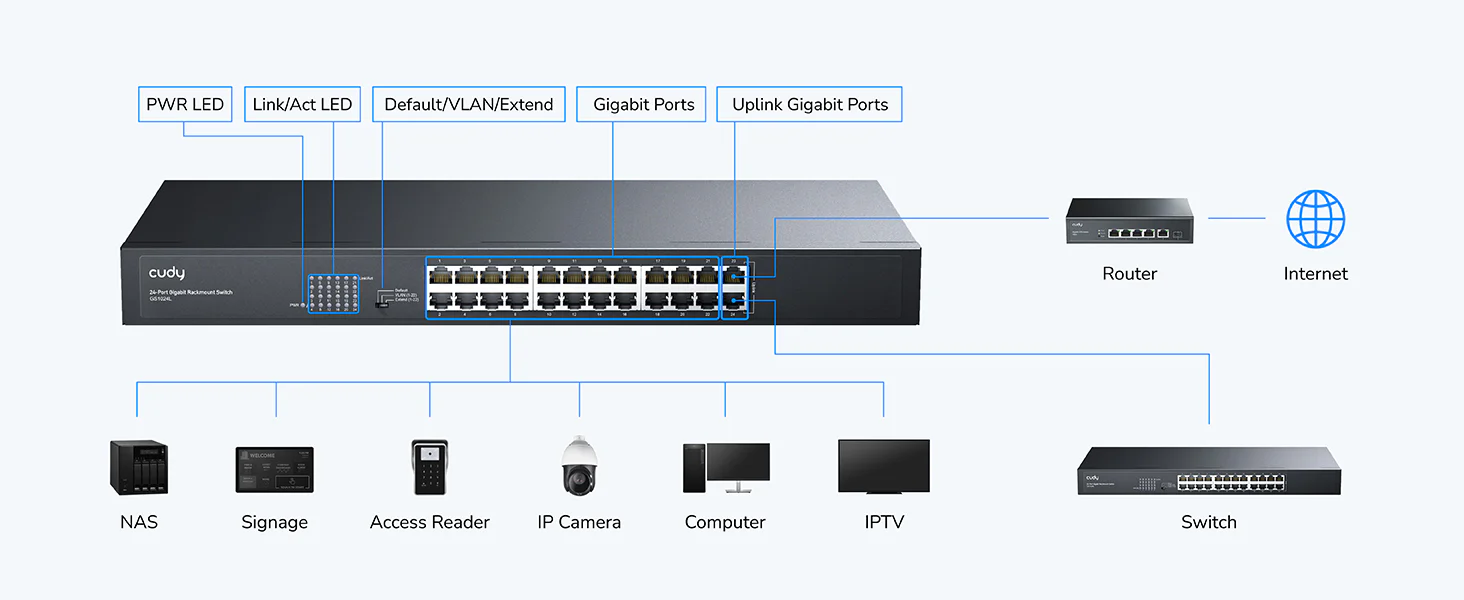

Operating modes: Default, VLAN and Extend
Mode selection: hardware DIP switch
VLAN/Extend Mode ports: 1–22
Uplink ports in VLAN/Extend modes: 23–24
VLAN Mode: isolates client ports 1–22 from each other; they can communicate only with the uplink ports.
Extend Mode: increases the transmission distance of ports 1–22 up to 250 m, with their speed limited to 10 Mbps.
Standard Gigabit Ethernet distance: up to 100 m using Cat.5e or higher cable.
Switching capacity: 48 Gbps
Packet forwarding rate: 35.712 Mpps
MAC address table: 8192
Jumbo Frame: up to 15 KB
Packet buffer: 4 Mbit
Flow control: IEEE 802.3x
Supported standards: IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab and IEEE 802.3x
QoS: DSCP and IEEE 802.1p
IGMP Snooping: supported
Loop detection: supported
Automatic loop prevention: supported.
LED indicators: Power, Speed, Link and Activity for each Ethernet port
Cooling: fanless passive cooling
Enclosure material: metal

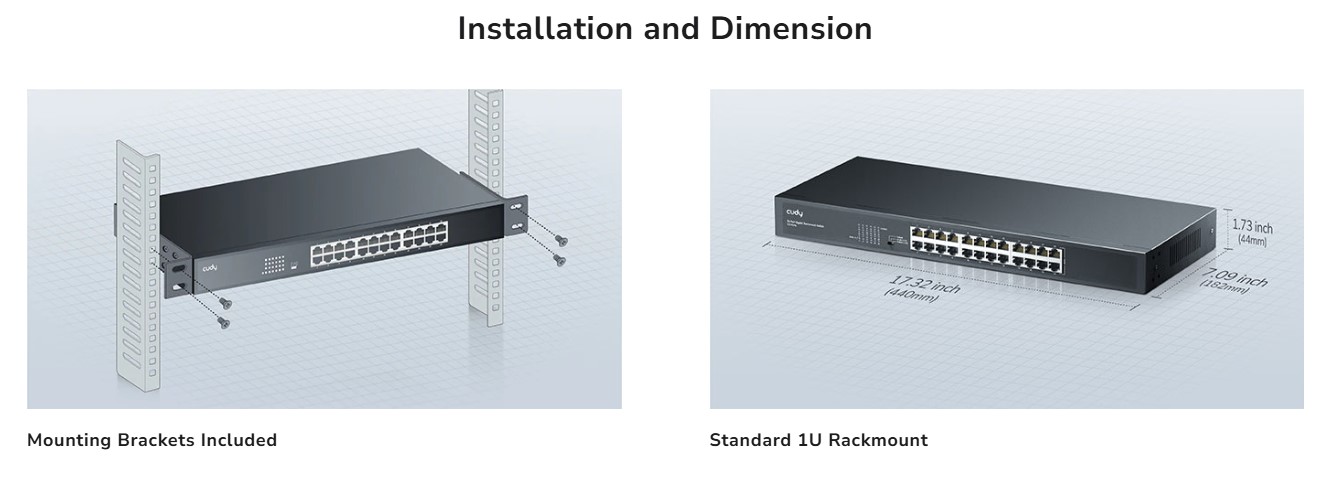

Form factor: standard 19-inch 1U
Installation: desktop or rack-mounted
Rack-mount brackets: included

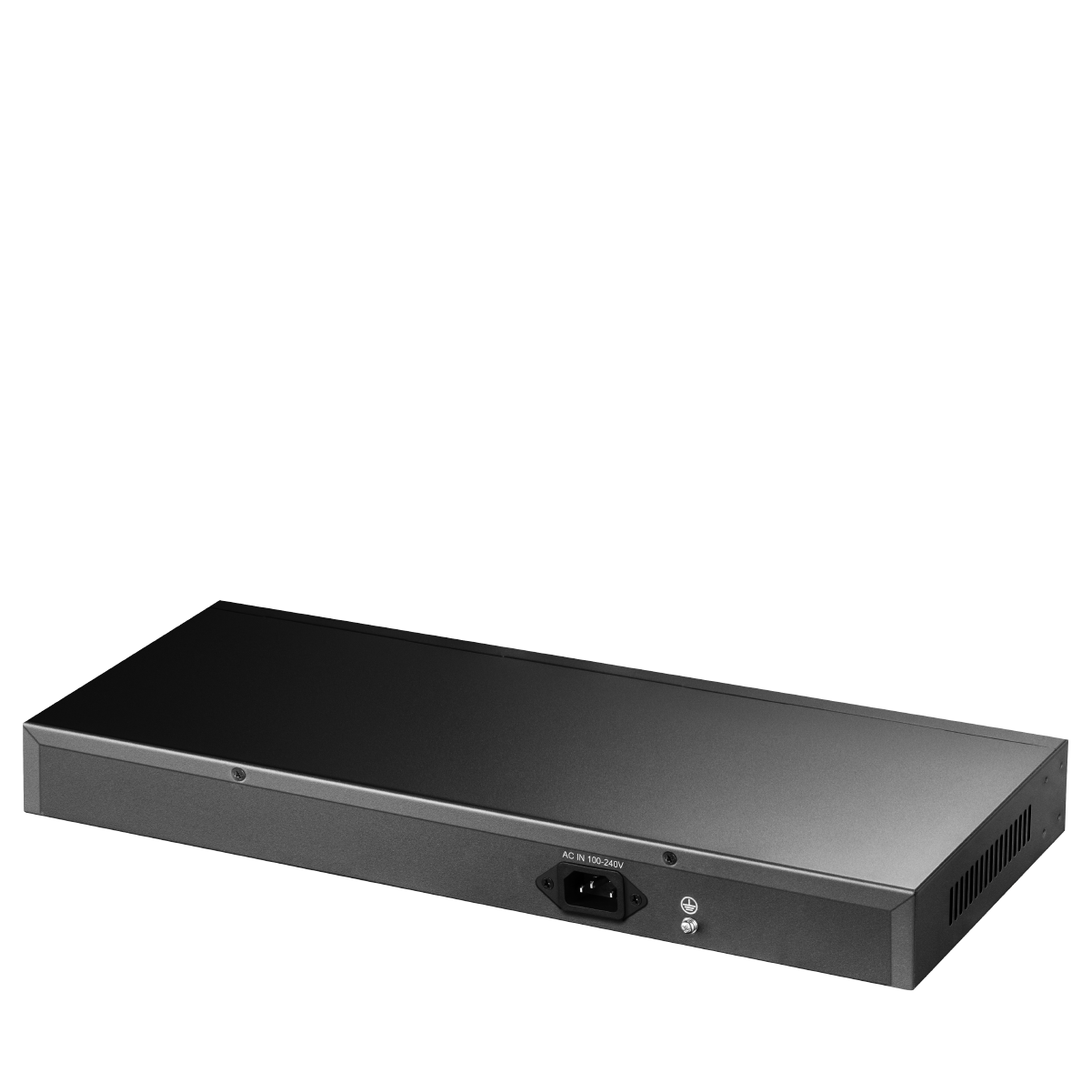

Power method: integrated AC power supply
Power input: 90–260 V AC, 50/60 Hz
Maximum power consumption: 11 W
Idle power consumption: 6.8 W
Grounding: three-prong power connection and dedicated grounding point.
RJ45 surge protection: up to 4 kV
Power surge protection: 2 kV differential mode / 4 kV common mode
ESD protection: 6 kV contact / 8 kV air
Operating temperature: 0 to +40 °C
Storage temperature: −40 to +70 °C
Operating humidity: 10–90% noncondensing
Storage humidity: 5–90% noncondensing
Dimensions: 440 × 180 × 44 mm
Weight: approximately 1.65–1.67 kg, depending on the regional version

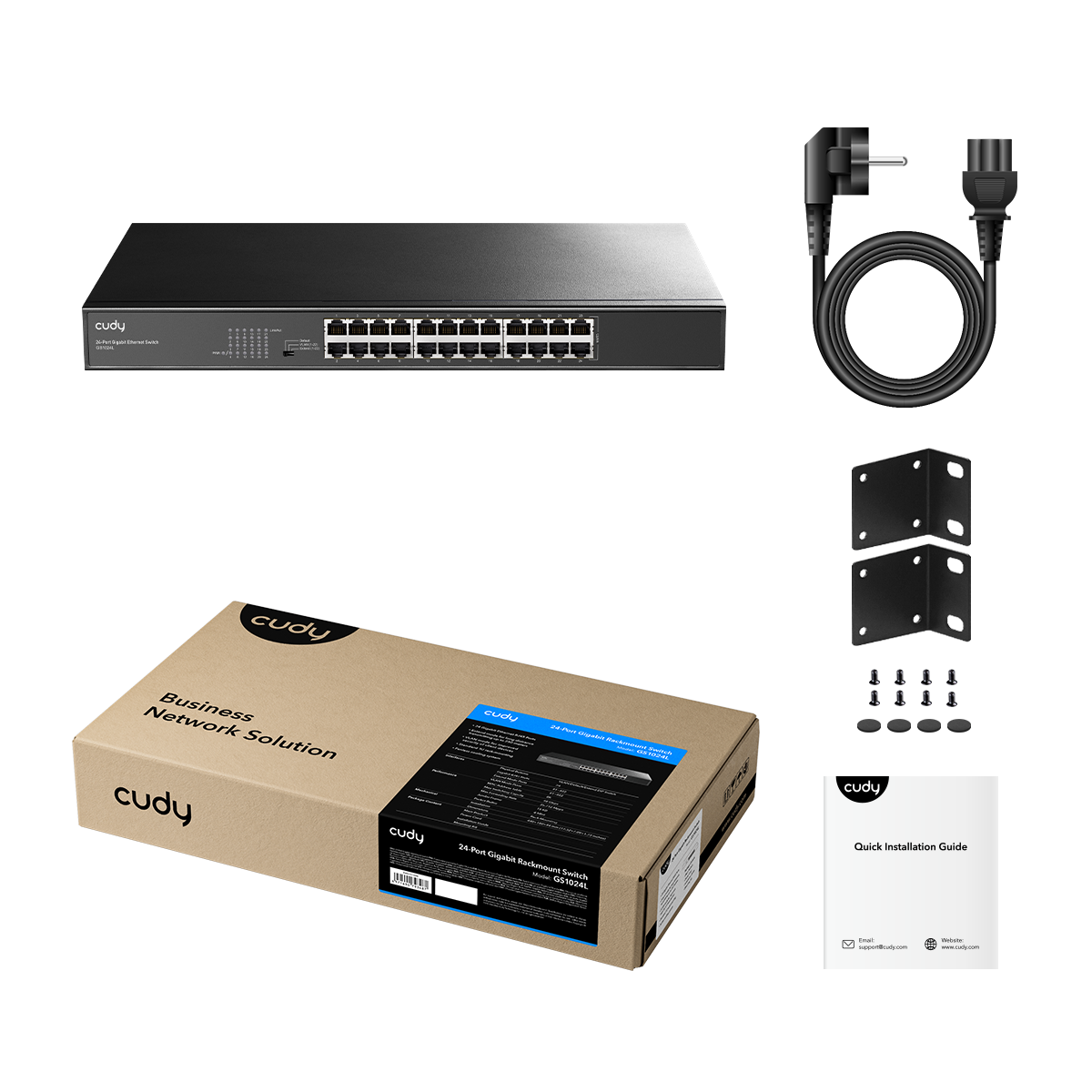

Package contents: switch, power cord, installation guide and rack-mounting kit.
