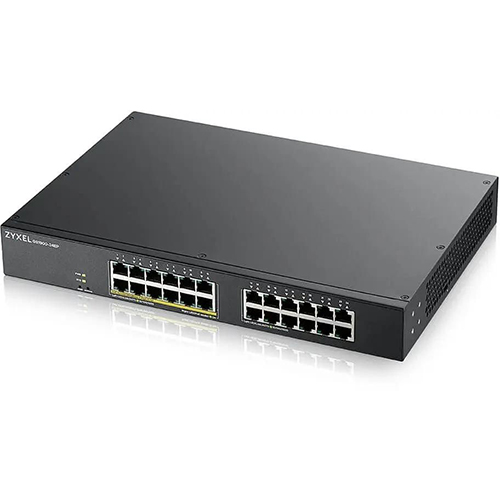

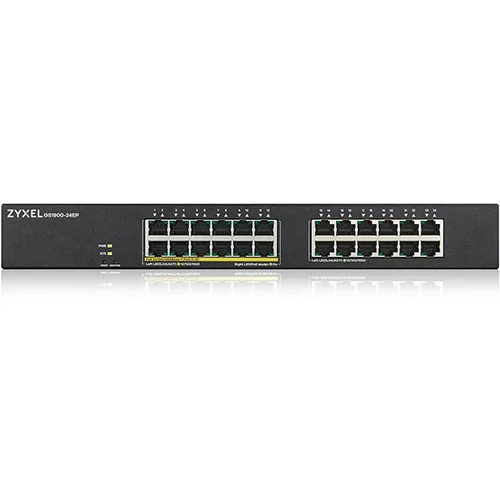

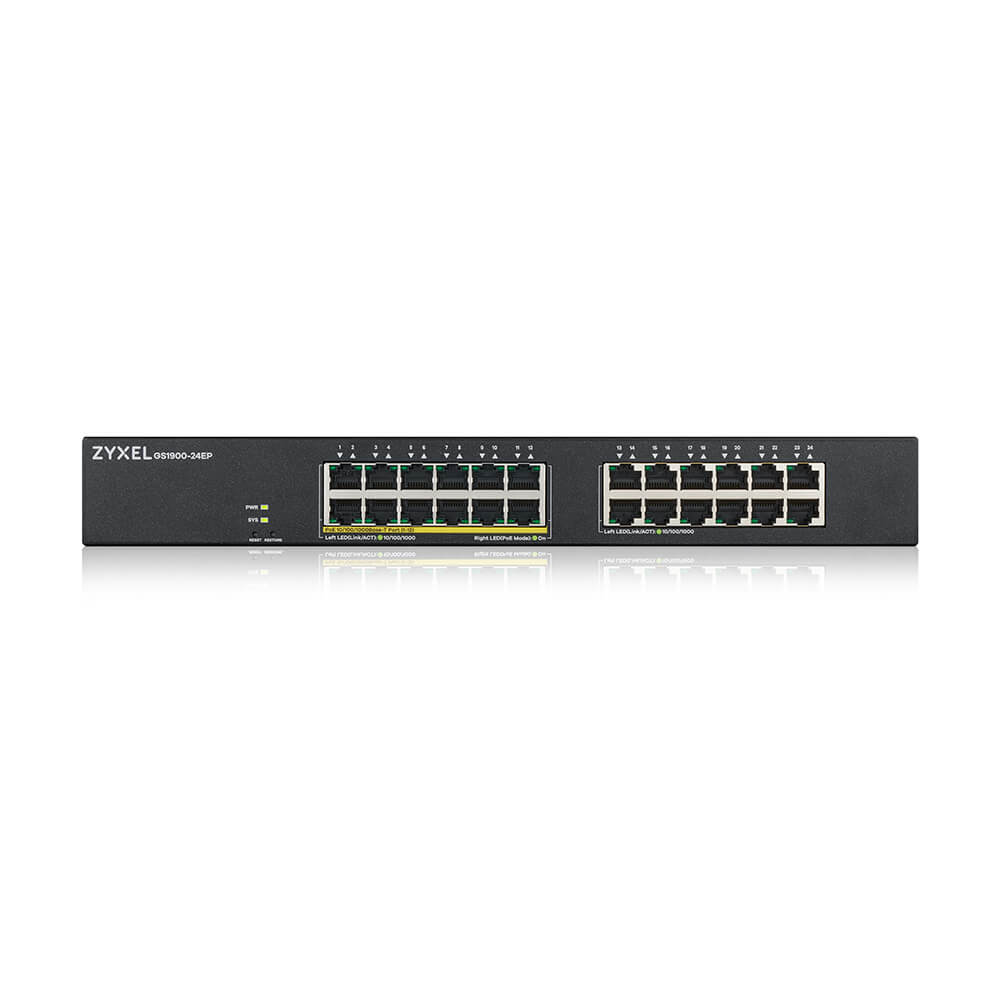

Zyxel GS1900-24EP 24-port GbE Smart Managed Switch

Name: Zyxel GS1900-24EP 24-port GbE Smart Managed Switch
Brand: Zyxel
SKU: 007862
Price: 116240 AMD
Availability: InStock
Rating: 4.90 (1 reviews)

SKU: 007862

Network switches

Features

Name	Description
Number of RJ45 Ports	24
Ethernet Port Speed	Gigabit Ethernet
Management Type	Smart Managed
PoE Support	IEEE 802.3af PoE, IEEE 802.3af PoE+
Uplink Ports	None

116 240 ֏

or 6 146 ֏ / month

← Back to «Network switches»

Zyxel GS1900-24EP — 24-Port Smart Managed Gigabit PoE+ Switch with 130 W PoE Budget
Key Specifications:
Device type: Smart Managed PoE Network Switch
Model: GS1900-24EP
Product family: Zyxel GS1900
Switching layer: Layer 2
Total number of RJ45 ports: 24
Ethernet port speed: 10/100/1000 Mbps
Port type: Gigabit RJ45
PoE ports: 12 × Gigabit RJ45
Non-PoE ports: 12 × Gigabit RJ45
SFP/SFP+ ports: None
Dedicated uplink ports: None
10G ports: None.
PoE
Supported standards: IEEE 802.3af PoE and IEEE 802.3at PoE+
Maximum power per PoE port: up to 30 W
Total PoE budget: 130 W
Intelligent power allocation: supported
PoE port priority configuration: supported
Scheduled PoE: supported
PoE power monitoring: supported
24V Passive PoE: not supported
IEEE 802.3bt PoE++: not supported.
Performance
Switching capacity: 48 Gbps
Forwarding rate: 35.7 Mpps
MAC address table: 8K
Packet buffer: 525 KB
Jumbo Frame: up to 9 KB
Switching method: Store-and-Forward
Auto-Negotiation: supported
Auto-MDI/MDIX: supported
Flow control: IEEE 802.3x Flow Control
Energy-saving standard: IEEE 802.3az Energy Efficient Ethernet.
Network features
IEEE 802.1Q VLAN
Guest VLAN and Voice VLAN
Link Aggregation and IEEE 802.3ad LACP
STP, RSTP and MSTP
IGMP Snooping v1/v2/v3
Port Mirroring
Port Security
MAC Filtering
802.1X Authentication
Storm Control
Ingress and Egress Rate Limiting
QoS, IEEE 802.1p CoS, SPQ and WRR
IPv6 Management
DoS Prevention
Management VLAN
LLDP and LLDP-MED
Dual Configuration Files and Dual Firmware Images.
Management
Management type: Smart Managed
Primary interface: built-in Web interface
Setup wizard: supported
SNMP: v1, v2c and v3
Monitoring: RMON and Syslog
ZON Utility management: supported
Remote firmware upgrade: via Web or SNMP
Configuration backup and restore: supported
IP assignment: DHCP Client
Nebula cloud management: not supported.
Power and enclosure
Power supply: integrated AC power supply
Input voltage: 100–240 V AC, 50/60 Hz
Maximum power consumption with PoE load: 166.5 W
Cooling: intelligent smart fan
Acoustic noise: approximately 19–40 dBA
Installation: standard 19-inch rack
Form factor: Rack Mount 1U
Dimensions: 330 × 230 × 44 mm
Weight: 2.48 kg.
Certifications: CE, FCC, RCM and RoHS
EMC classification: Class A.
