Ubiquiti EdgeSwitch ES-24-250W 24 PoE Switch

SKU: 007869

Network switches

Features

Name	Description
Number of RJ45 Ports	24
Ethernet Port Speed	10/100/1000 Mbps — Gigabit Ethernet
Management Type	Managed
PoE Support	Passive PoE, IEEE 802.3af PoE, IEEE 802.3af PoE+
Uplink Ports	SFP

239 030 ֏

or 12 638 ֏ / month

← Back to «Network switches»

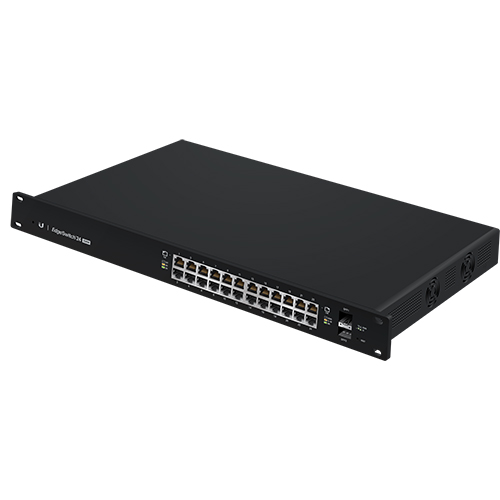

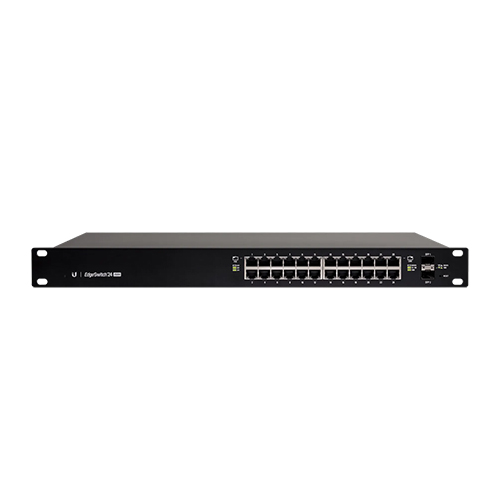

Ubiquiti EdgeSwitch ES-24-250W — 24-Port Managed Gigabit PoE+ Switch with Two SFP Ports
Key Specifications:
Device type: Managed PoE Network Switch
Model: ES-24-250W
Product family: EdgeSwitch / EdgeMAX
Switching layer: Layer 2/3

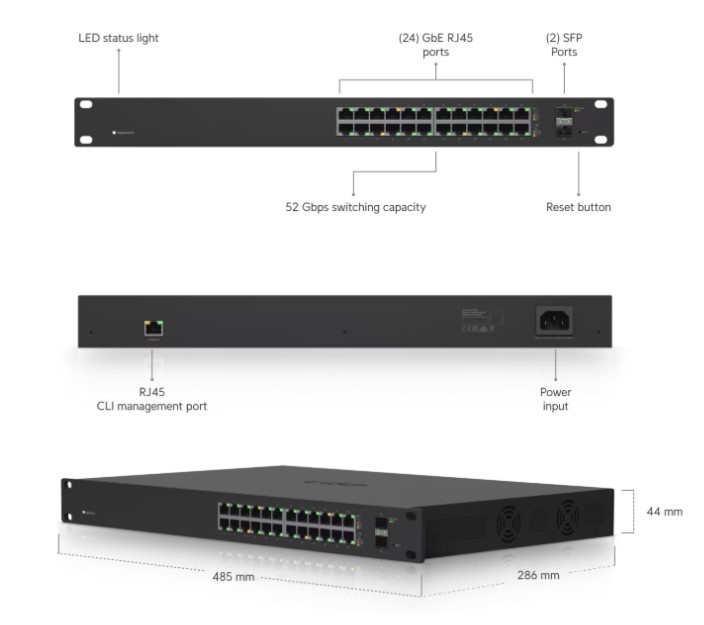

Number of RJ45 ports: 24
RJ45 port speed: 10/100/1000 Mbps
Optical uplink ports: 2 × 1G SFP
Console port: 1 × RJ45 Serial Console
SFP modules: not included
PoE ports: 24
Active PoE standards: IEEE 802.3af PoE and IEEE 802.3at PoE+
Additional power option: 24V Passive PoE
Default PoE mode: automatic PoE+
Total stated PoE budget: 250 W
Maximum PoE+ output per port by PSE: 34.2 W
Maximum 24V Passive PoE output per port: 17 W
PoE+ voltage range: 50–57 V
Passive PoE voltage range: 20–27 V
PoE configuration: individually configurable per port.
Switching capacity: 52 Gbps
Total non-blocking throughput: 26 Gbps
Forwarding rate: 38.69 Mpps
MAC address table: 16,384
Supported VLANs: up to 4,093
LAG groups: up to 6
Layer 2 features: VLAN, Private VLAN, Voice VLAN, STP, RSTP, MSTP, Link Aggregation, Port Mirroring, IGMP Snooping, DHCP Snooping and Jumbo Frames
Security features: ACL, 802.1X, MAC Filtering, RADIUS and TACACS+
Layer 3 features: Static Routing and DHCP Server
QoS: DiffServ, CoS, Traffic Classes and interface rate limiting.
Management: EdgeSwitch Web UI, CLI and UISP
CLI access: Serial Console, SSH and Telnet
Monitoring: SNMP v1/v2/v3 and Syslog
IP assignment: DHCP
Fallback IP address: 192.168.1.2
Power supply: integrated AC/DC power supply
Power input: 100–240 V AC, 50/60 Hz
Power supply rating: 250 W
Maximum switch consumption: 30 W excluding PoE output
Form factor: Rack Mount 1U
Installation: standard 19-inch rack
Dimensions: 485 × 43.7 × 285.4 mm
Weight: 4.7 kg
Operating temperature: −5 to +40 °C
Operating humidity: 5–95% noncondensing
ESD/EMP protection: ±24 kV
NDAA compliant: Yes
Certifications: CE, FCC, IC and Anatel
Package contents: switch, power cord, four mounting screws and four cage nuts.
