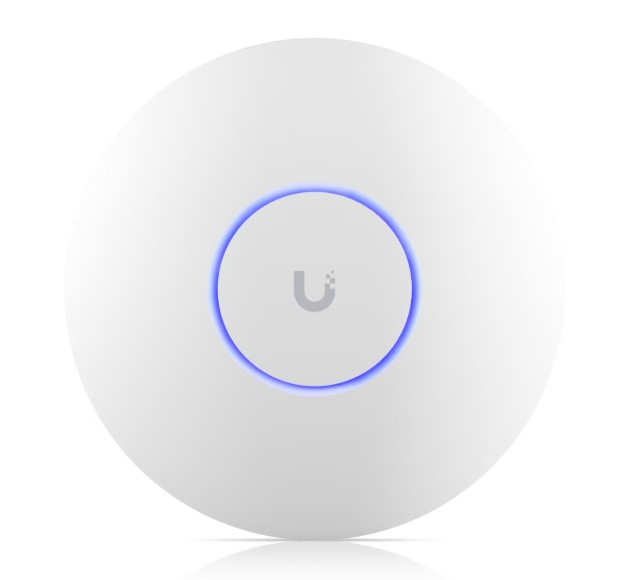

Ubiquiti UniFi U6 Long-Range — Extended-Coverage Wi-Fi 6 Access Point with PoE+
Key Specifications:
Device type: Dual-Band Wi-Fi Access Point
Model: U6-LR
Product family: UniFi U6 Long-Range
5 GHz Wi-Fi standard: Wi-Fi 6 / IEEE 802.11ax
2.4 GHz Wi-Fi standard: Wi-Fi 4 / IEEE 802.11n
Supported standards: IEEE 802.11a/b/g/n/ac/ax
Wi-Fi bands: 2.4 GHz and 5 GHz
Combined theoretical Wi-Fi speed: up to 3 Gbps
5 GHz Wi-Fi speed: up to 2.4 Gbps
2.4 GHz Wi-Fi speed: up to 600 Mbps
Spatial streams: 8
5 GHz MIMO: 4 × 4 DL/UL MU-MIMO
2.4 GHz MIMO: 4 × 4 SU-MIMO
Maximum channel width: 160 MHz on 5 GHz and 40 MHz on 2.4 GHz
5 GHz antenna gain: 5.5 dBi
2.4 GHz antenna gain: 4 dBi
Maximum transmit power: 26 dBm on 2.4 and 5 GHz
Wi-Fi coverage: up to 185 m²
Maximum client count: 350+

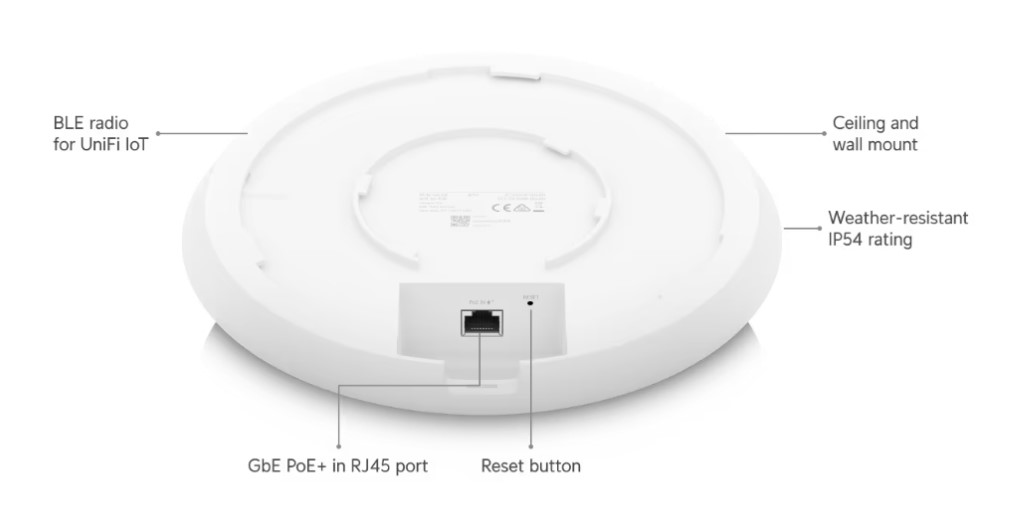

Ethernet port: 1 × Gigabit RJ45
Mesh: Wireless Meshing
Seamless roaming: IEEE 802.11k, 802.11r and 802.11v
Additional Wi-Fi features: Band Steering and Advanced Radio Management
Maximum BSSIDs: 8 per radio
Guest networking: Guest Network Isolation and Client Device Isolation
Hotspot features: Captive Portal, Voucher Authentication, Passpoint and External Portal Server
Access management: PPSK, RADIUS over TLS and Dynamic VLAN
Client speed limiting: supported
Wi-Fi scheduling: supported
Wi-Fi security: WPA/WPA2/WPA3-Personal and WPA-Enterprise
Management: UniFi Network via Ethernet and Bluetooth
Minimum UniFi Network version: 6.0.45
Power method: PoE+
Supported voltage range: 44–57 V DC
Maximum power consumption: 18.5 W
Mounting: ceiling or wall

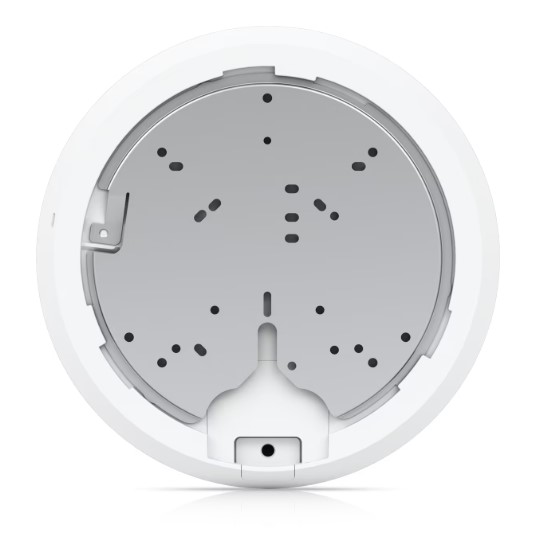

Mount: Pro Mount included
Enclosure protection: IP54
Enclosure material: polycarbonate
Mount material: SUS304 stainless steel
System LED: white/blue
Operating temperature: −30 to +60 °C
Operating humidity: 5–95% noncondensing

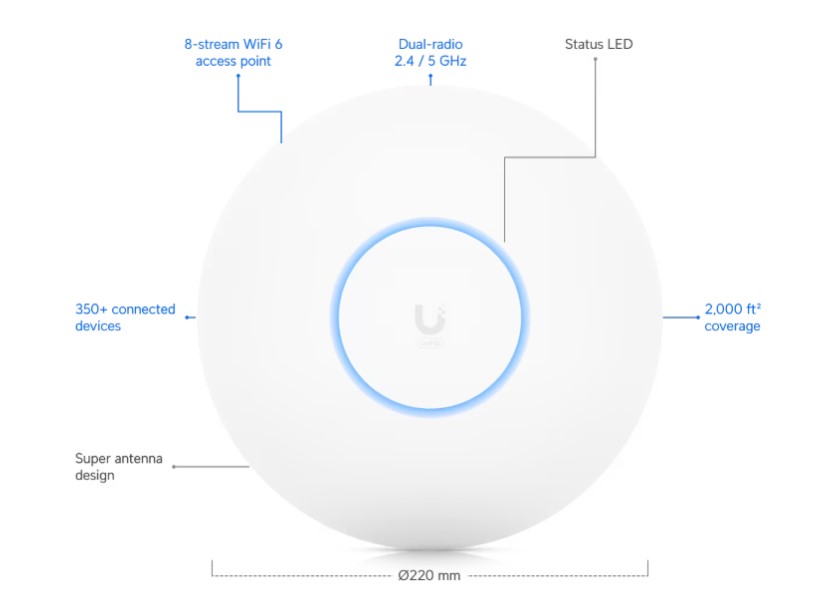

Dimensions: Ø220 × 48 mm
Device weight: 800 g
Weight with mount: 930 g
NDAA compliant: Yes
Certifications: CE, FCC, IC, SRRC and Anatel

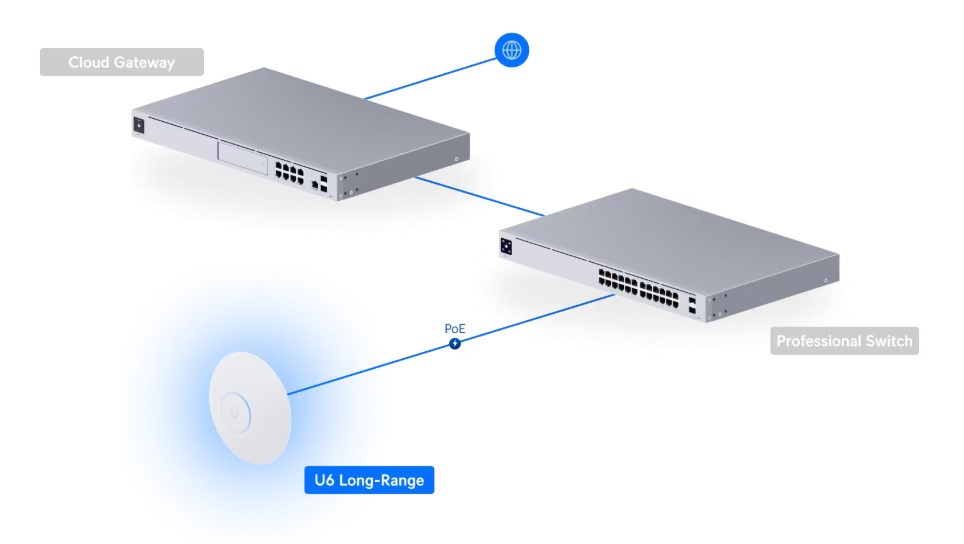

PoE+ power is required. A compatible 48 V / 0.5 A PoE+ adapter is not included in the standard package and must be purchased separately, or the access point can be connected to a compatible PoE+ switch. The Pro Mount mounting bracket is included.
