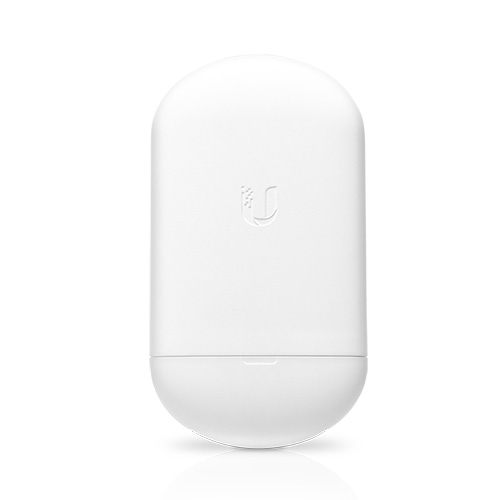

Ubiquiti NanoStation 5AC Loco Access Point
SKU:
007272
Access Point
Features
| Name |
Description |
| Mobile Network |
No / Нет / No |
| Outdoor |
No |
30 140 ֏
or 1 594 ֏ / month
← Back to «Access Point»
- Ubiquiti airMAX NanoStation 5AC Loco — Outdoor 5 GHz Access Point and Wireless Bridge with Passive PoE
- Key Specifications:
- Device type: Outdoor Directional Access Point / CPE / Wireless Bridge
- Model: Loco5AC
- Product family: airMAX NanoStation
- Primary use: Point-to-Point and Point-to-Multi-Point wireless links
- Operating modes: Access Point and Station
- Wireless technology: airMAX AC with TDMA
- Operating band: 5 GHz
- Supported frequency range: 5150–5875 MHz, region-dependent
- Real TCP/IP throughput: up to 450+ Mbps
- Channel widths: 10 / 20 / 30 / 40 / 50 / 60 / 80 MHz
- Modulation: up to 256-QAM
- Integrated antenna: Directional, Dual-Linear
- Antenna gain: 13 dBi
- Antenna beamwidth: 45° horizontal, vertical and elevation
- Maximum transmit power: up to 25 dBm
- Dedicated management Wi-Fi radio: 2.4 GHz
- Network interface: 1 × Gigabit RJ45
- Processor: 560 MHz Atheros MIPS 74Kc
- RAM: 64 MB DDR2
- Operating system: airOS 8
- Management: Web interface, SSH, SNMP and UISP
- Network features: Bridging, Routing, DHCP, QoS and Ping Watchdog
- RF monitoring: airView Spectrum Analyzer and RF diagnostics
- Wireless security: WPA2
- Power method: 24V Passive PoE
- PoE pinout: pins 4, 5 positive and 7, 8 negative
- Supported voltage range: 22–27 V DC
- Recommended power supply: 24 V / 0.3 A Gigabit PoE
- PoE injector: not included
- Maximum power consumption: 7 W
- ESD/EMP protection: ±24 kV
- Enclosure material: UV-stabilized polycarbonate

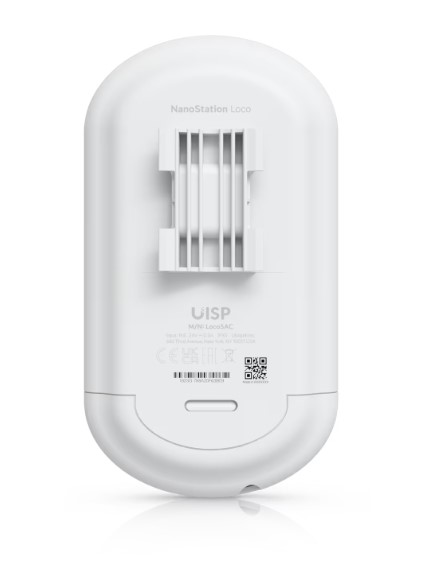

- Mounting: pole-mounted
- Pole mount: included
- Operating temperature: −40 to +70 °C
- Operating humidity: 5–95% noncondensing

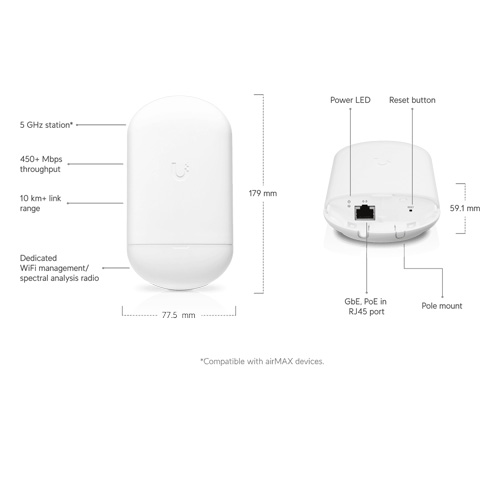

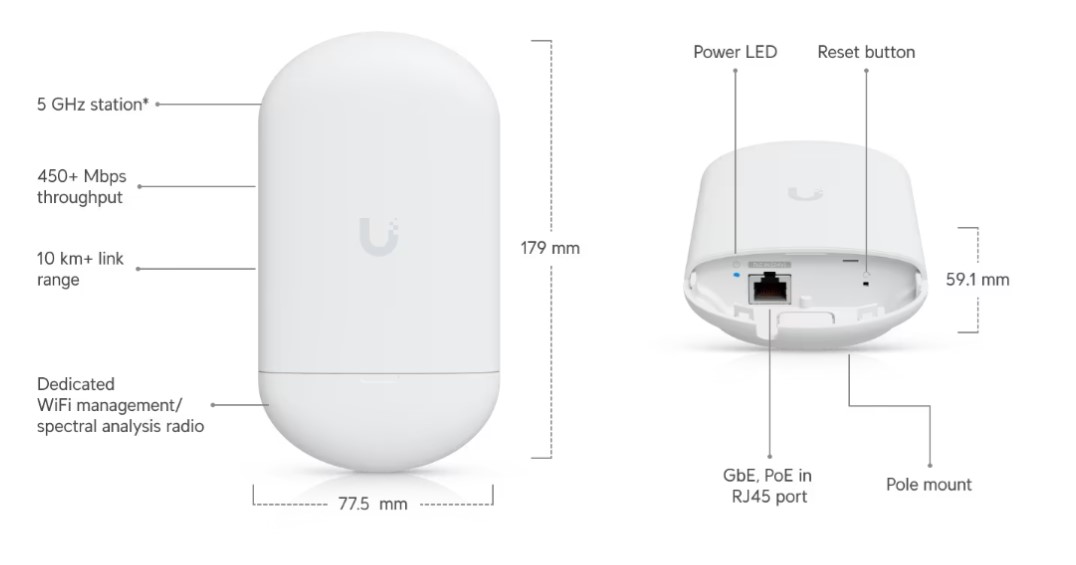

- Dimensions: 179 × 77.5 × 59.1 mm
- Weight: 180 g
- NDAA compliant: Yes
- Certifications: CE, FCC, IC and Anatel
