Ubiquiti UniFi NanoHD Access Point / WiFi 5

SKU: 006778

Access Point

Features

Name	Description
Wi-Fi Standard	Wi-Fi 5
Mobile Network	No / Нет / No
Outdoor	No

86 100 ֏

or 4 552 ֏ / month

← Back to «Access Point»

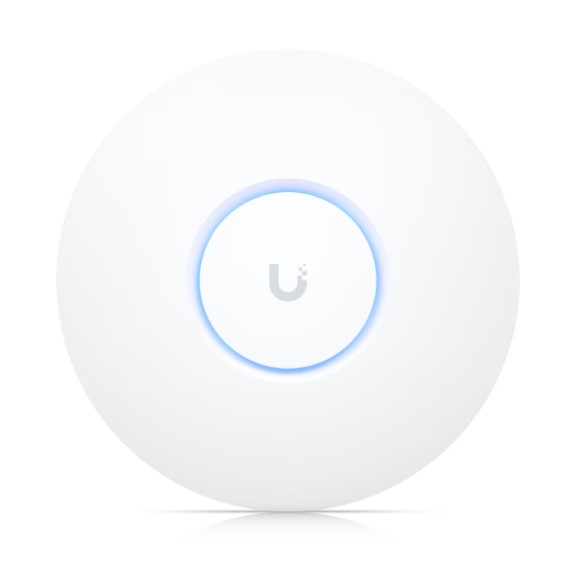

Ubiquiti UniFi nanoHD — Compact Dual-Band Wi-Fi 5 Wave 2 Access Point with PoE
Key Specifications:
Device type: Indoor Wi-Fi Access Point
Model: nanoHD
Product code: UAP-nanoHD
Wi-Fi standard: Wi-Fi 5 / IEEE 802.11ac Wave 2
Supported standards: IEEE 802.11a/b/g/n/ac
Wi-Fi bands: 2.4 GHz and 5 GHz
Combined theoretical Wi-Fi speed: up to 2.03 Gbps
5 GHz Wi-Fi speed: up to 1.7 Gbps
2.4 GHz Wi-Fi speed: up to 300 Mbps
Spatial streams: 6
5 GHz MIMO: 4 × 4 DL MU-MIMO
2.4 GHz MIMO: 2 × 2 MIMO
Maximum channel width: up to 160 MHz on 5 GHz and 40 MHz on 2.4 GHz
5 GHz antenna gain: 3 dBi
2.4 GHz antenna gain: 2.8 dBi
Maximum 5 GHz transmit power: 26 dBm
Maximum 2.4 GHz transmit power: 23 dBm
Wi-Fi coverage: up to 140 m²
Maximum client count: 200+

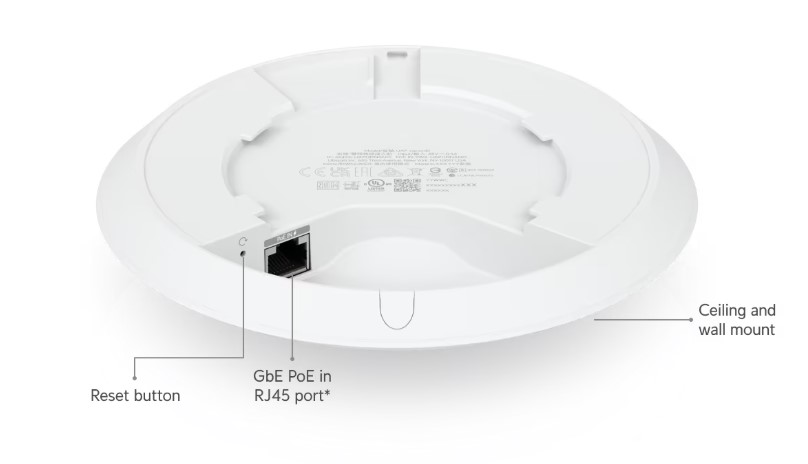

Ethernet port: 1 × Gigabit RJ45
Mesh: Wireless Meshing
Seamless roaming: IEEE 802.11k, 802.11r and 802.11v
Additional Wi-Fi features: Beamforming, Band Steering and Advanced Radio Management
Maximum BSSIDs: 8 per radio
Guest networking: Guest Network Isolation and Client Device Isolation
Hotspot features: Captive Portal, Voucher Authentication, Passpoint and External Portal Server
Access management: PPSK, RADIUS over TLS and Dynamic VLAN
Client speed limiting: supported
Wi-Fi scheduling: supported
Wi-Fi security: WPA/WPA2-Personal, WPA-Enterprise and 802.11w/PMF
Management: UniFi Network via Ethernet
Minimum UniFi Network version: 6.0.45

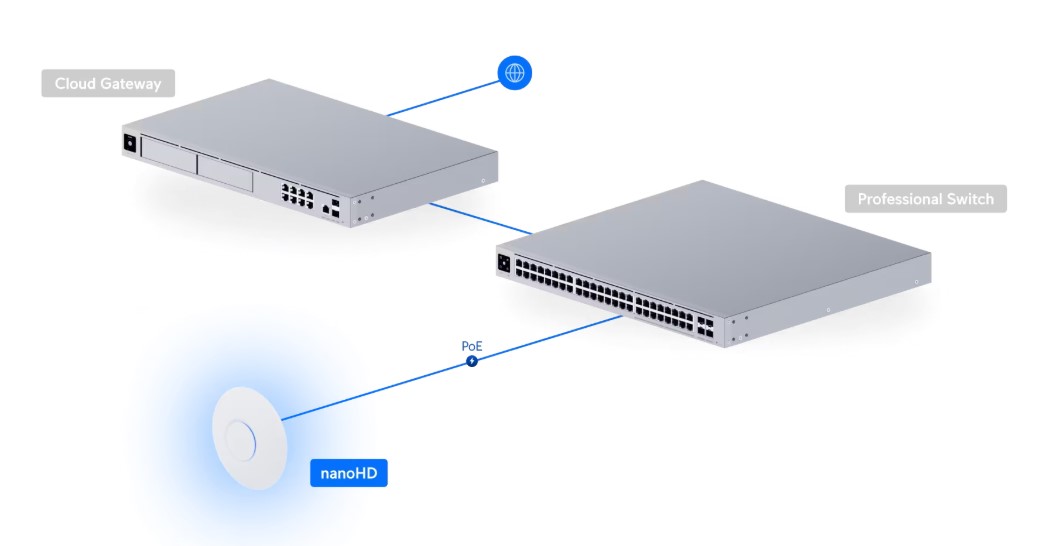

Power method: IEEE 802.3af PoE
Supported voltage range: 44–57 V DC
Maximum power consumption: 10.5 W

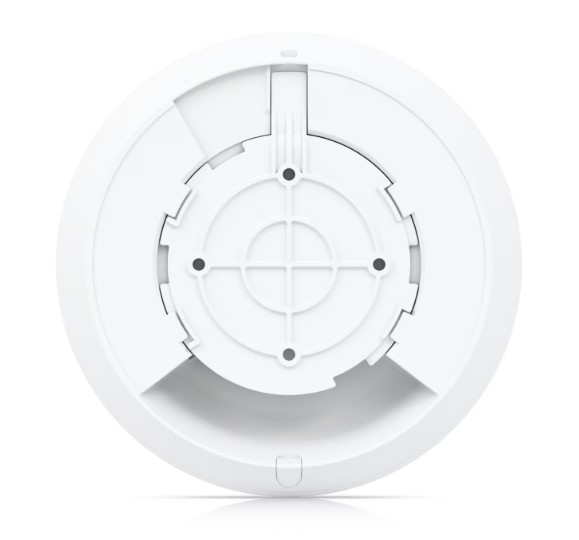

Mounting: ceiling or wall
Mount: Lite Mount included
Operating temperature: −10 to +70 °C
Operating humidity: 5–95% noncondensing

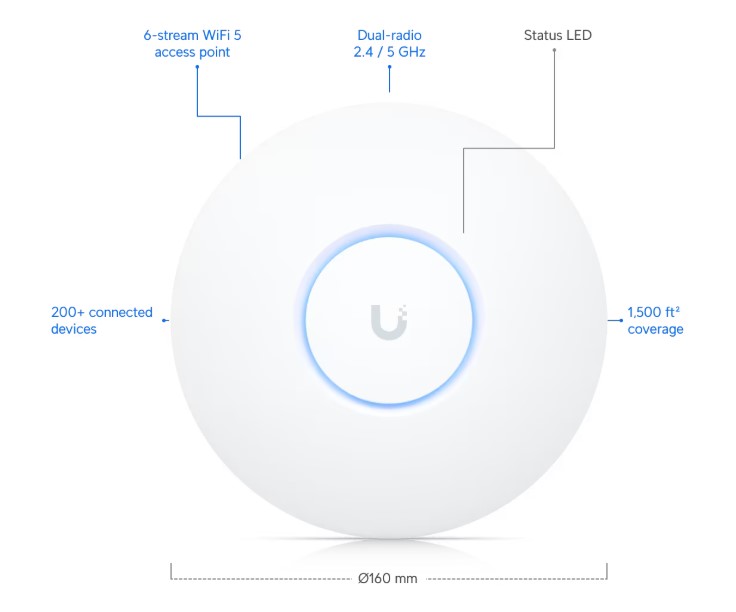

Dimensions: Ø160 × 32.7 mm
Device weight: 300 g
Weight with mount: 315 g
NDAA compliant: Yes
Certifications: CE, FCC, IC, cULus and Anatel
