In stock
MikroTik cAP XL ac Access Point
SKU:
007149
Access Point
Features
| Name |
Description |
| Wi-Fi Standard |
Wi-Fi 5 |
| Wi-Fi Speed |
300+867 Mbps (2.4+5 GHz) |
| Mobile Network |
No / Нет / No |
| Outdoor |
No |
60 270 ֏
or 3 187 ֏ / month
← Back to «Access Point»
-
-

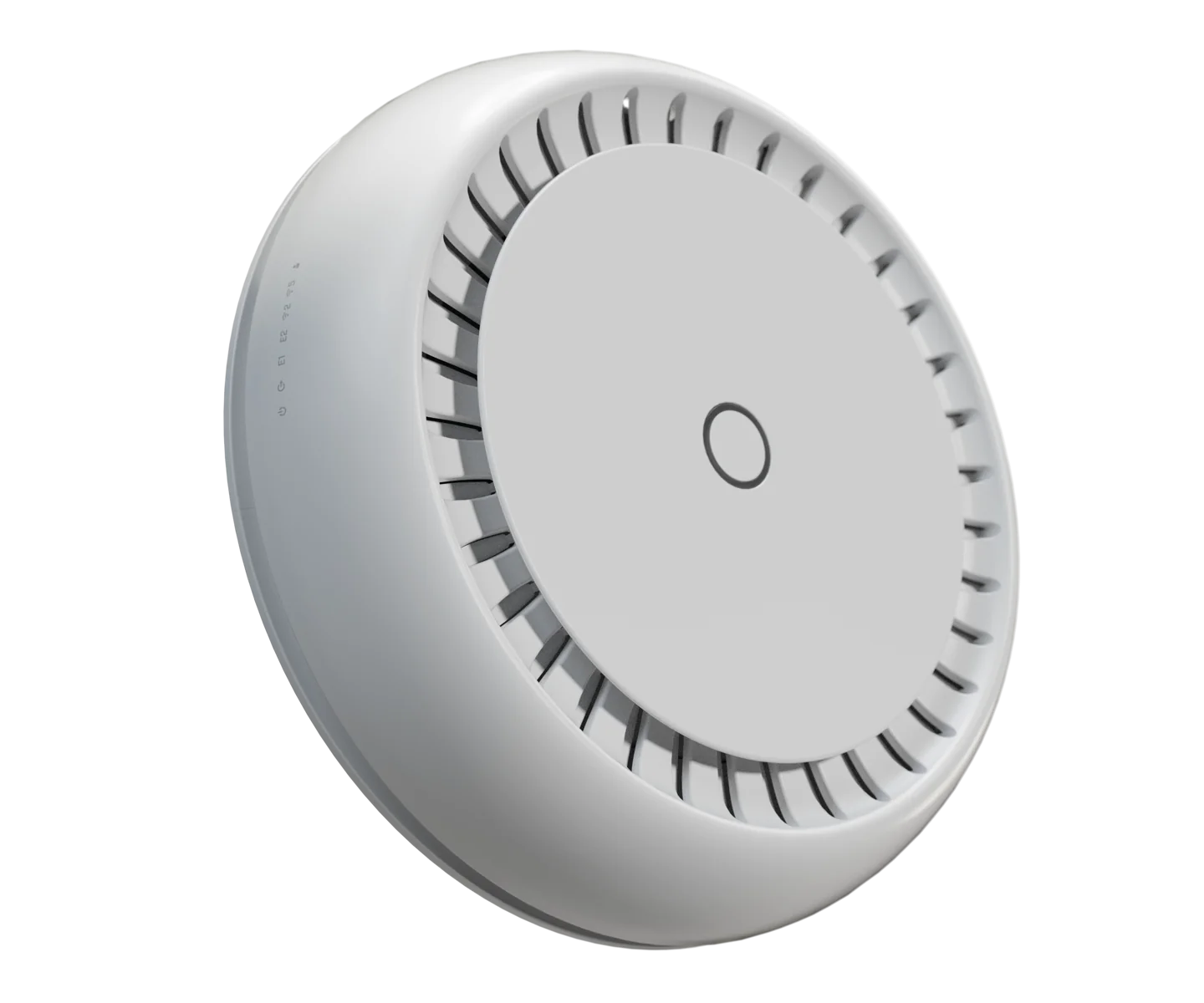

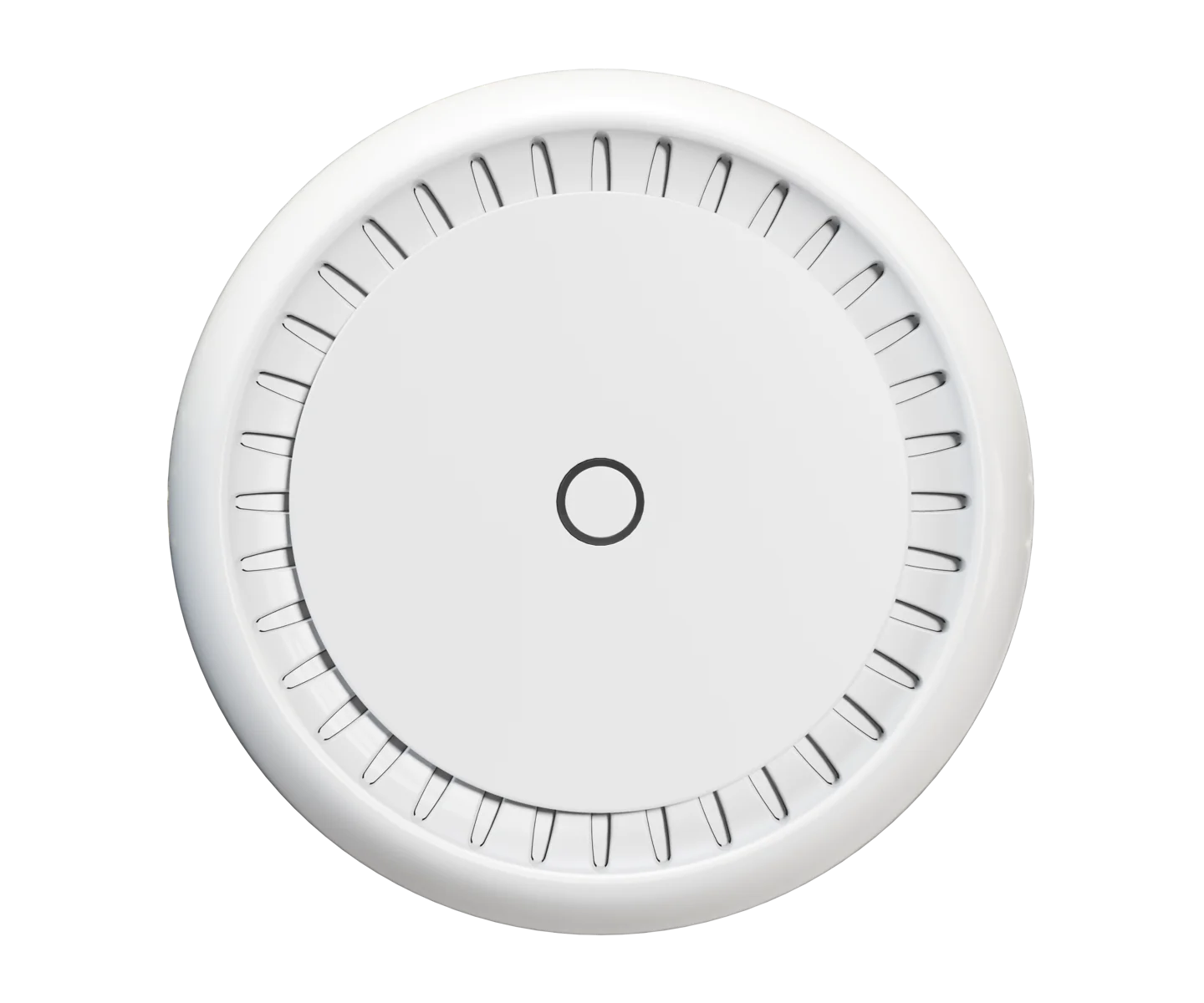

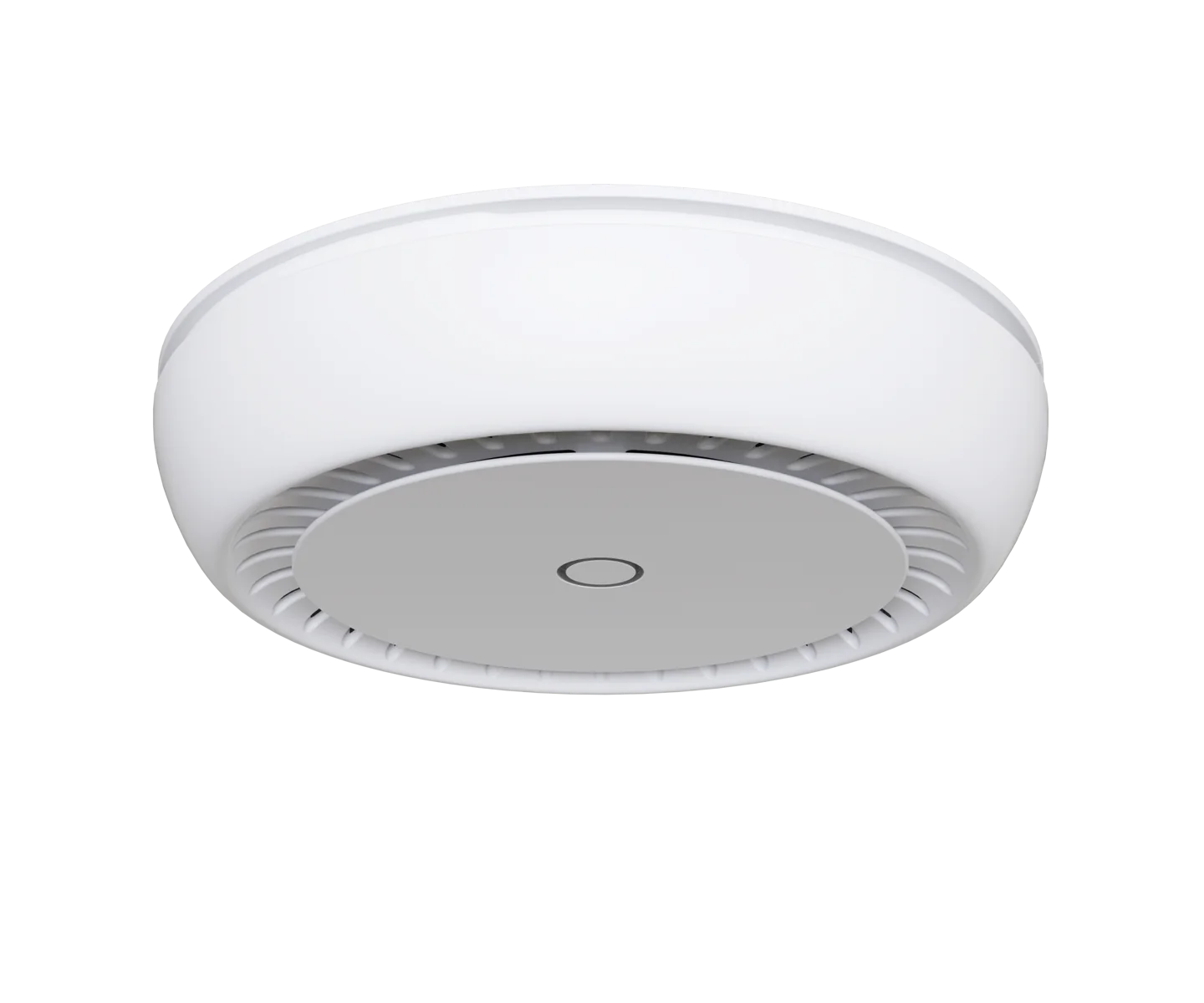

- MikroTik cAP XL ac — AC1200 Dual-Band Ceiling Access Point with PoE
- Key Specifications:
- Device type: Indoor Wi-Fi Access Point
- Model: cAP XL ac
- Product code: RBcAPGi-5acD2nD-XL
- Wi-Fi standard: Wi-Fi 5 / AC1200
- Supported standards: IEEE 802.11a/b/g/n/ac
- Combined Wi-Fi speed: up to 1167 Mbps
- Wi-Fi speed: up to 867 Mbps on 5 GHz + up to 300 Mbps on 2.4 GHz
- Wi-Fi bands: 2.4 GHz and 5 GHz
- Wi-Fi configuration: 2 × 2 MIMO on both bands
- Antennas: built-in omnidirectional antennas
- 2.4 GHz antenna gain: 6 dBi
- 5 GHz antenna gain: 5.5 dBi
- Signal distribution: 360° with ceiling installation
- Coverage: up to 100% greater than previous MikroTik cAP models

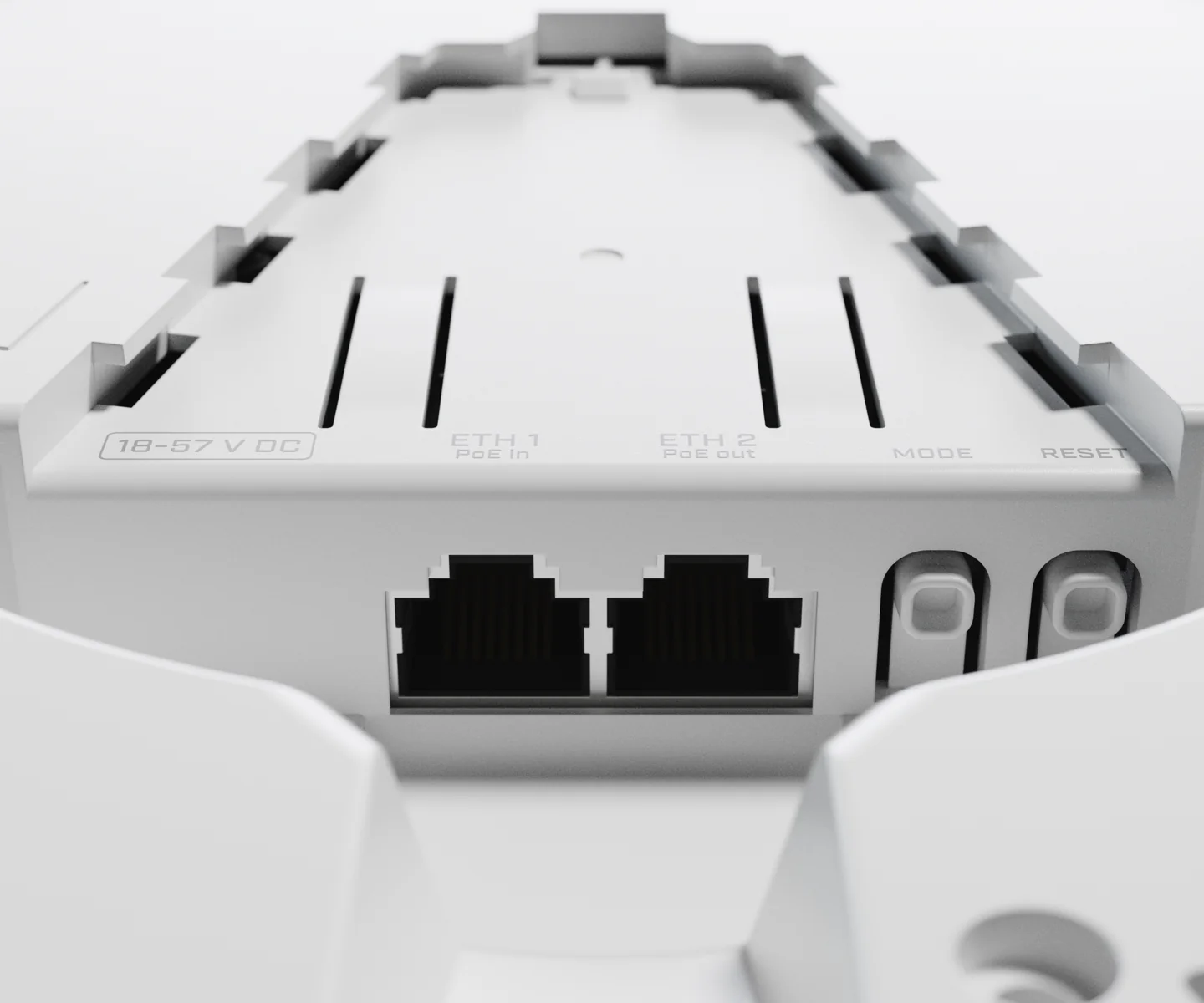

- Ethernet ports: 2 × Gigabit RJ45
- First Ethernet port: Gigabit Ethernet with PoE In
- Second Ethernet port: Gigabit Ethernet with Passive PoE Out
- PoE In: Passive PoE or IEEE 802.3af/at
- Supported input voltage: 18–57 V DC
- PoE Out: Passive PoE through Ether2, up to 57 V
- Maximum PoE Out current: 500 mA at low voltage or 330 mA at high voltage
- Operating modes: Access Point, Router and Repeater
- Centralized management: MikroTik CAPsMAN
- Operating system: MikroTik RouterOS
- RouterOS license: Level 4
- Management: WinBox, WebFig, CLI and MikroTik Mobile App
- Processor: Quad-Core IPQ-4018, 488–896 MHz
- RAM: 128 MB DDR3L
- Internal storage: 16 MB Flash
- Maximum power consumption without attachments: 11 W
- Maximum total power consumption: 24 W
- Cooling: passive
- Mounting: ceiling or wall
- Buttons: Reset and configurable Mode Button
- Operating temperature: −40 to +70 °C
- Operating humidity: 5–95% noncondensing
- Dimensions: Ø191 × 42 mm
- Certifications: CE, FCC, IC, EAC and RoHS

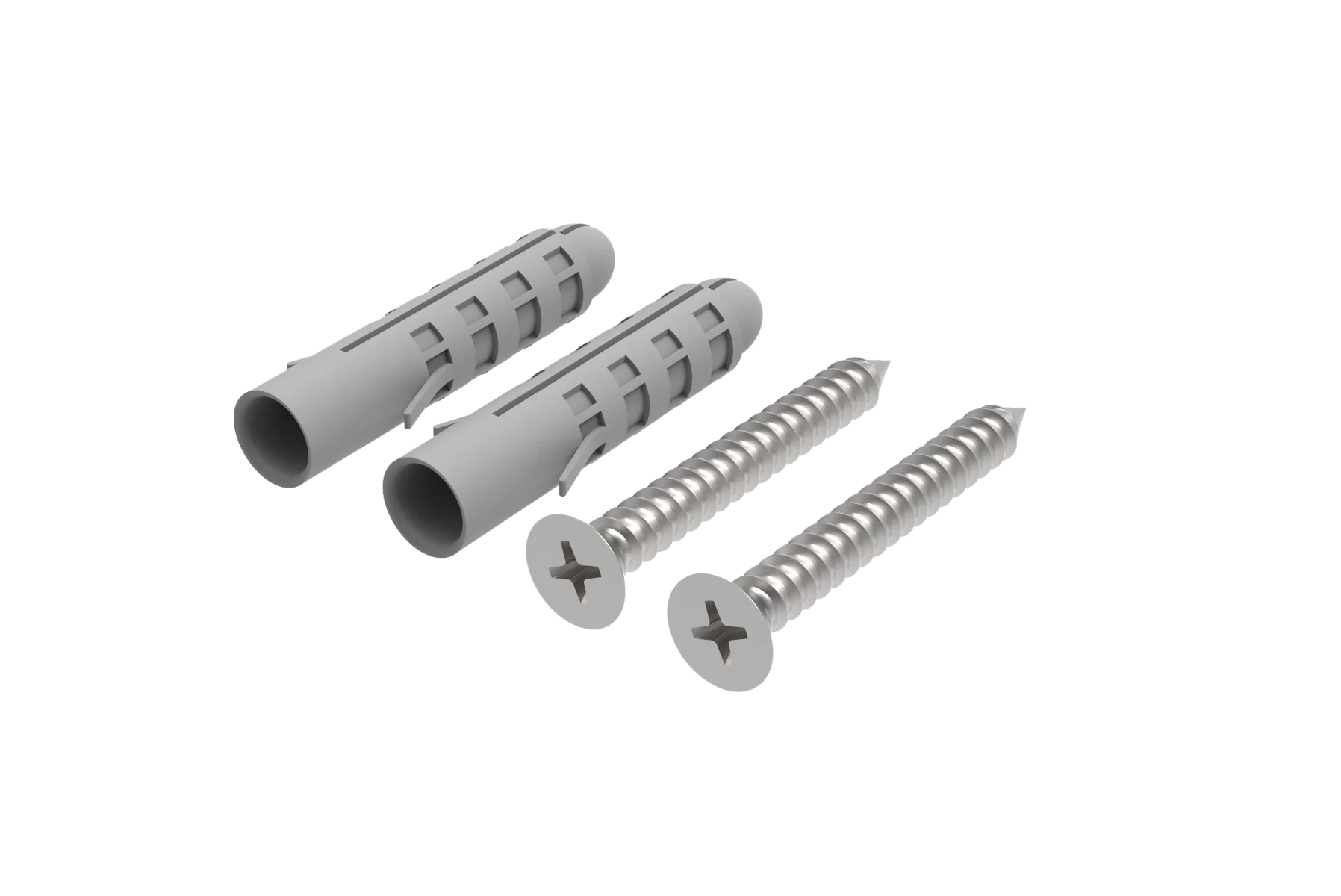

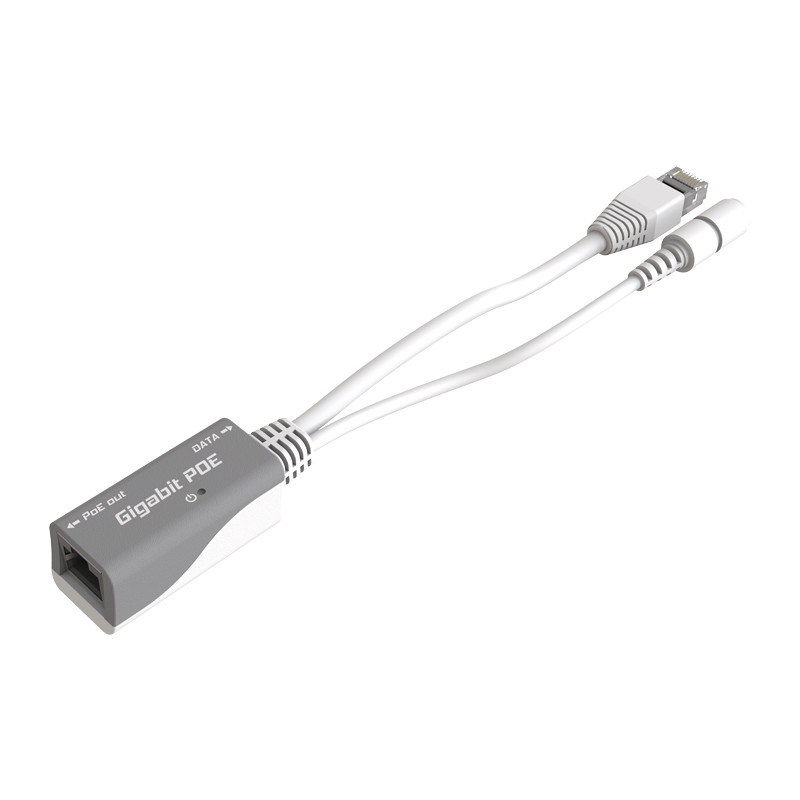

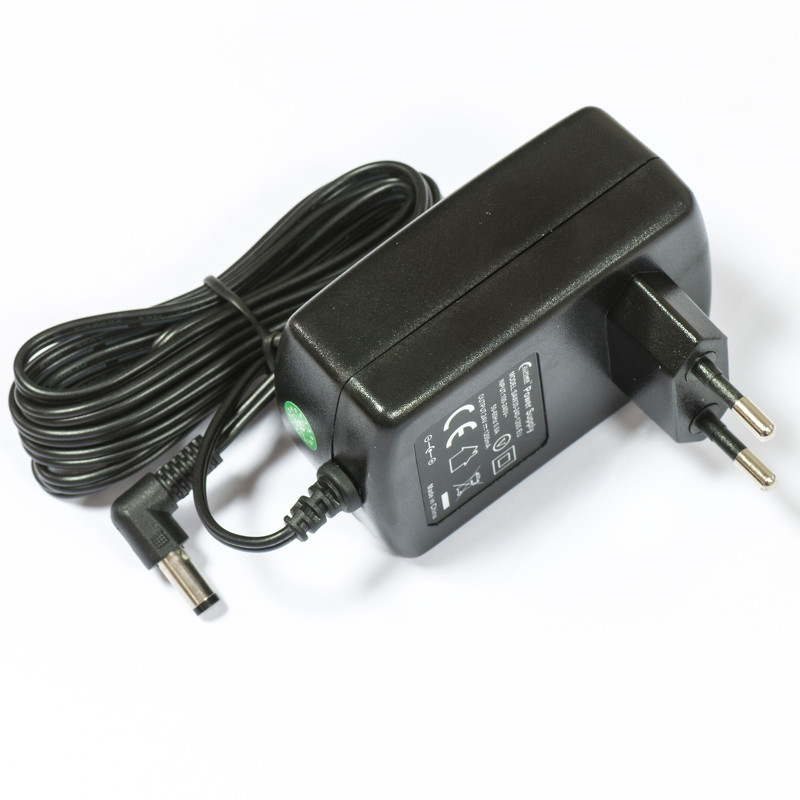

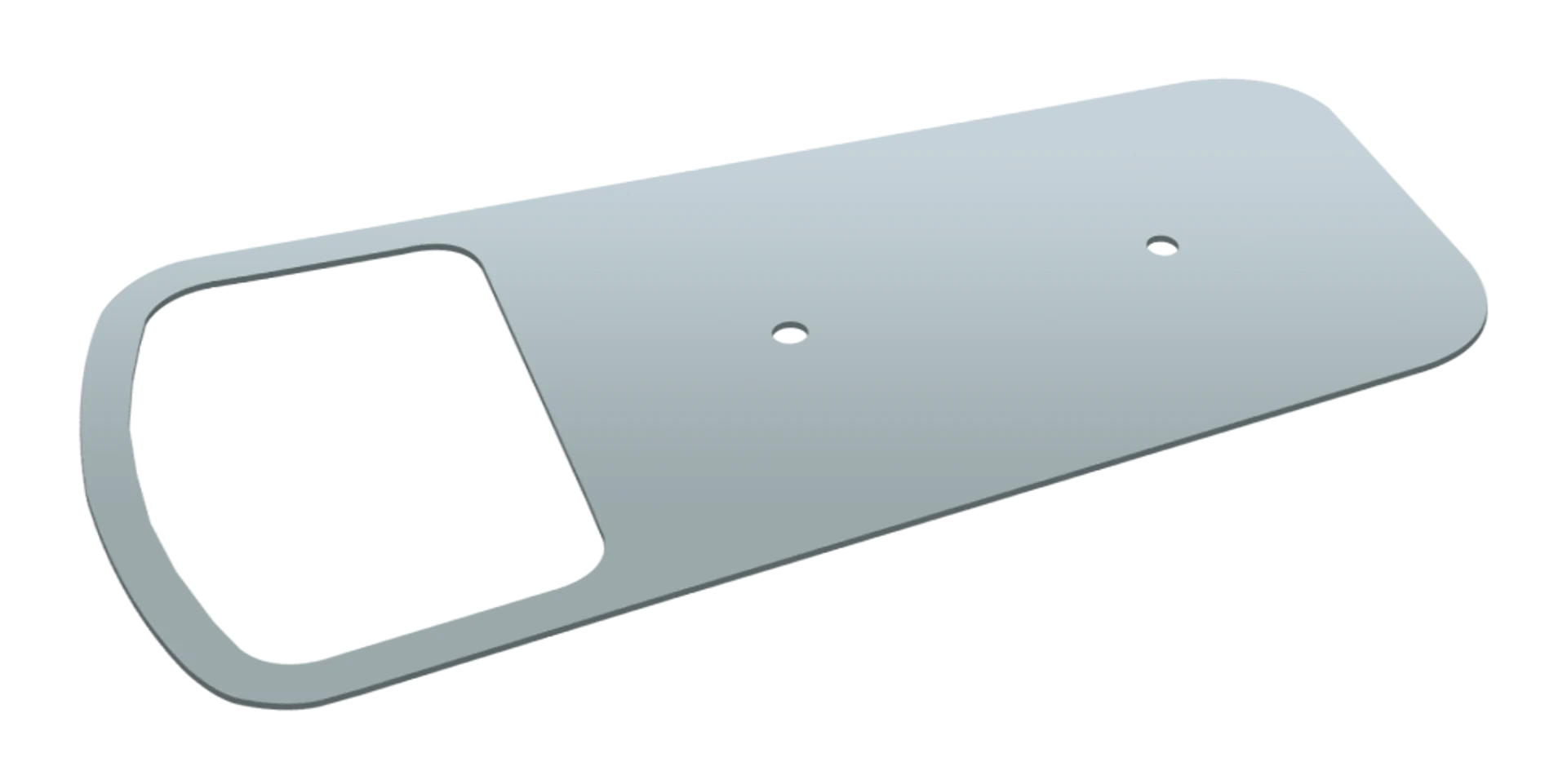

- Package contents: access point, 24 V / 1.2 A adapter, Gigabit PoE injector, ceiling mount and fastening set
