In stock

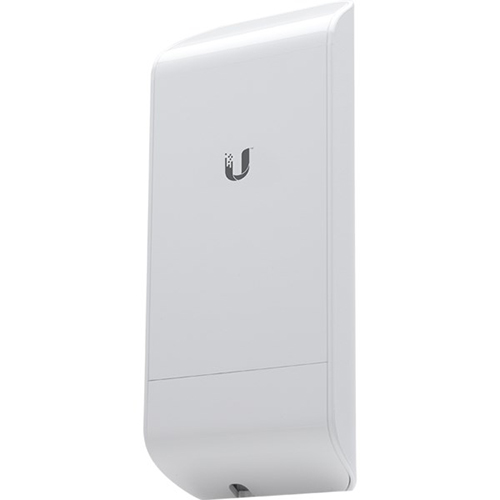

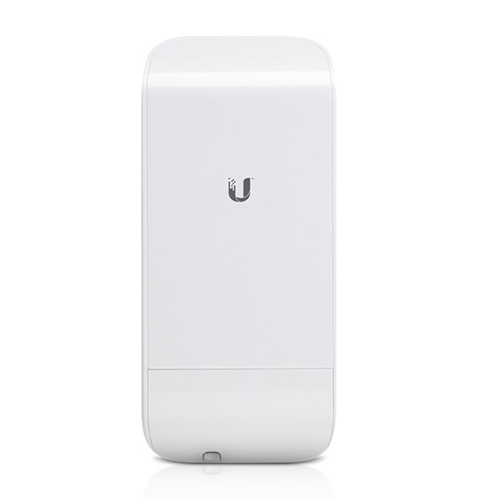

Ubiquiti Access Point NanoStation Loco M2 PoE
SKU:
006780
Access Point
Features
| Name |
Description |
| Wi-Fi Standard |
Wi-Fi 4 |
| Mobile Network |
No / Нет / No |
| Outdoor |
Yes |
30 140 ֏
or 1 594 ֏ / month
← Back to «Access Point»
- Ubiquiti airMAX NanoStation M2 loco — Outdoor 2.4 GHz Access Point and Wireless Bridge with Passive PoE
- Key Specifications:
- Device type: Outdoor Directional Access Point / CPE / Wireless Bridge
- Model: LocoM2
- Product family: airMAX NanoStation
- Primary use: Point-to-Point and Point-to-Multi-Point wireless links
- Operating modes: Access Point and Station
- Wireless technology: airMAX M with TDMA protocol
- Wireless standard: IEEE 802.11b/g/n
- Wi-Fi standard: Wi-Fi 4
- Operating band: 2.4 GHz
- Operating frequency: 2412–2462 MHz
- Radio configuration: 2 × 2 MIMO
- Modulation: up to MCS15
- Maximum transmit power: 23 dBm
- Integrated antenna: Directional, Dual-Linear
- Antenna gain: 8.5 dBi
- Antenna beamwidth: 60° horizontal, vertical and elevation
- Polarization: Dual Linear

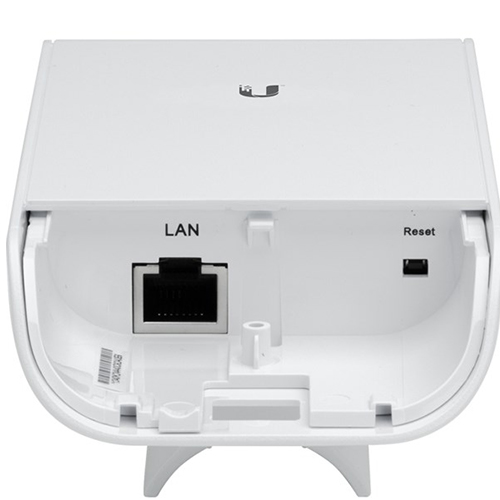

- Network interface: 1 × 10/100 Mbps RJ45
- Processor: 400 MHz Atheros MIPS 24Kc
- RAM: 32 MB SDRAM
- Internal storage: 8 MB Flash
- Operating system: airOS
- RF analysis: airView Spectrum Analyzer
- Network features: Bridge, Router, DHCP, NAT, QoS and Ping Watchdog
- Management: airOS Web interface
- Power method: 24V Passive PoE
- PoE pinout: pins 4, 5 positive and 7, 8 return
- Supported voltage range: 22–27 V DC
- PoE adapter: 24 V / 0.5 A, included
- Maximum power consumption: 5.5 W
- Enclosure material: Outdoor UV-stabilized plastic
- Mounting: pole-mounted
- Pole mount: included
- Operating temperature: −30 to +75 °C
- Operating humidity: 5–95% noncondensing
- Shock and vibration resistance: ETSI 300-019-1.4
- Dimensions: 161 × 31 × 80 mm
- Weight: 180 g
- NDAA compliant: Yes
- Certifications: CE, FCC, IC and RoHS
