Dell YGCV4 Broadcom 5719 Quad Port 1Gbe Ethernet Adapter

Name: Dell YGCV4 Broadcom 5719 Quad Port 1Gbe Ethernet Adapter
Brand: Dell
SKU: 008745
Price: 19370 AMD
Availability: BackOrder
Rating: 4.84 (3 reviews)

SKU: 008745

Lan adapter

Features

Name	Description
Ports	4
Port Type	4 × RJ45
Data Rate	10 / 100 / 1000 Mbps per port
Host Interface	PCI Express 2.0 x4
Controller	Broadcom BCM5719
Form factor	Low Profile PCIe
Applicable standards	IEEE 802.3 / 802.3u / 802.3ab / 802.3az
Jumbo Frames	Up to 9.6 KB
Features	Wake on LAN, EEE, RSS, VMQ, NetQueue, TCP/IP Offload
Supported OS	Windows Server / Linux / VMware ESXi

— not available for cart checkout; contact us to order.

19 370 ֏

or 1 024 ֏ / month

← Back to «Lan adapter»

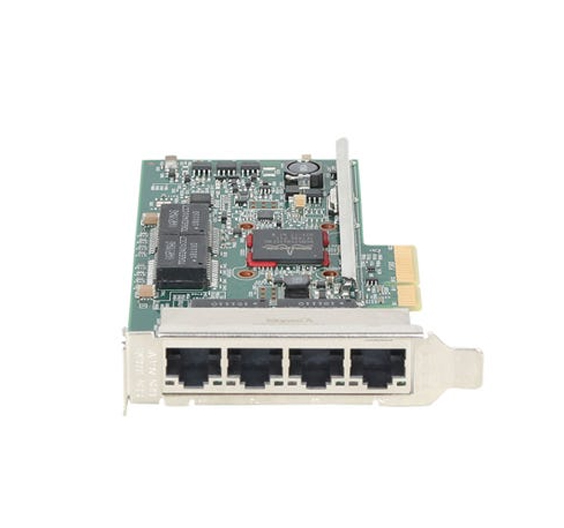

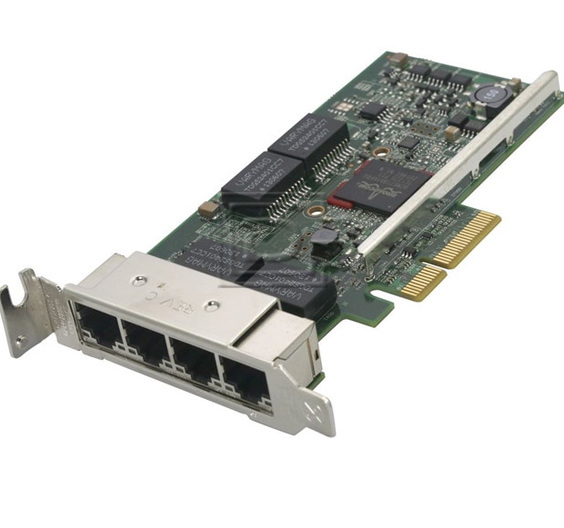

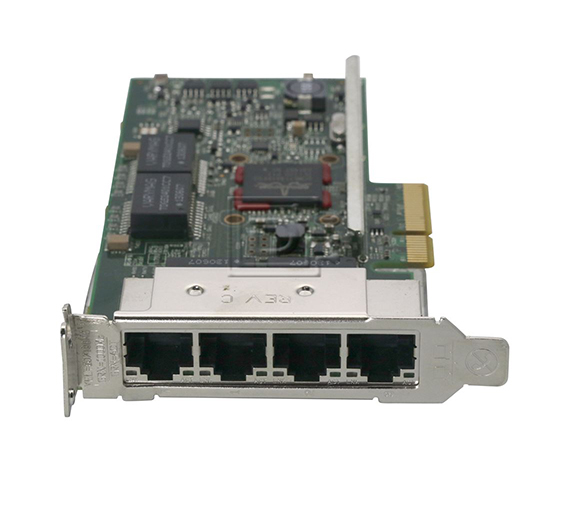

Dell YGCV4 Broadcom 5719 — Quad-Port 1GbE PCI Express Ethernet Adapter
Device type: Server Ethernet Network Adapter
Dell Part Number: YGCV4 / 0YGCV4
Controller: Broadcom BCM5719
Network ports: 4 × RJ45
Maximum speed per port: 1 Gbps
Supported speeds per port: 10 / 100 / 1000 Mbps
Host interface: PCI Express 2.0 x4
Form factor: Low Profile PCIe Adapter.
Ethernet:
Port configuration: 4 × 10/100/1000BASE-T RJ45
Full Duplex: supported
Half Duplex: supported at compatible Ethernet rates
Auto-Negotiation: supported
Full line-rate operation across all ports: supported
Energy Efficient Ethernet (EEE): supported
Network standards:
IEEE 802.3 — Ethernet
IEEE 802.3u — Fast Ethernet
IEEE 802.3ab — Gigabit Ethernet
IEEE 802.3az — Energy Efficient Ethernet.
Performance and Offloads:
Jumbo Frame: up to 9.6 KB
Receive Side Scaling (RSS): supported
TCP checksum offload: supported
UDP checksum offload: supported
IP checksum offload: supported
Large Send Offload (LSO): supported
TCP Segmentation Offload (TSO): supported
MSI / MSI-X: supported.
Virtualization:
VMware NetQueue: supported
Microsoft VMQ: supported
I/O Virtualization: supported
Multiple receive and transmit queues: supported.
Additional Features:
Wake on LAN: supported
IEEE 1588 Precision Time Protocol hardware assist: supported
IEEE 802.1AS time synchronization hardware assist: supported
PXE / network boot support: platform-dependent
Operating System Support:
Microsoft Windows / Windows Server
Red Hat Enterprise Linux
SUSE Linux Enterprise Server
Ubuntu
Debian
CentOS
Oracle Linux
Oracle Solaris
VMware ESX / ESXi / vSphere
Windows Hyper-V.
Physical Specifications:
Bracket: Low Profile
Card size: approximately 132 × 69 mm
Connectors: 4 × RJ45 with integrated Link/Activity indicators
RoHS compliant: Yes.
