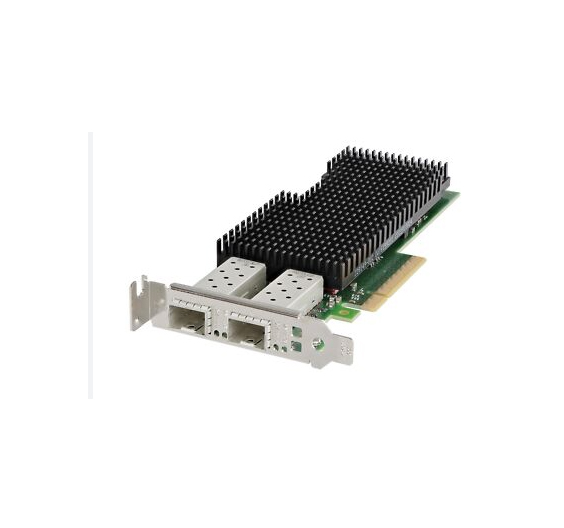

Dell XXV710-DA2 Dual-Port 25GbE 2xSFP PCIe Network Adapter
SKU:
008789
Lan adapter
Features
38 950 ֏
or 2 059 ֏ / month
← Back to «Lan adapter»
- Dell XXV710-DA2 — Dual-Port 25GbE SFP28 PCIe Network Adapter
- Device type: Server Ethernet Network Adapter
- Model: XXV710-DA2
- Series: Intel Ethernet 700 Series
- Controller: Intel Ethernet Controller XL710-BM2
- Number of network ports: 2
- Port type: 2 × SFP28
- Maximum speed per port: 25 Gbps
- Supported data rates per port: 1 / 10 / 25 Gbps
- Host interface: PCI Express 3.0 x8
- PCIe transfer rate: 8.0 GT/s
- PCIe lanes: x8
- Supported media: Copper and Fiber
- SFP28 DAC support: Yes
- SFP28 Direct Attach Twinax cable length: up to 5 m
- 25GBASE-SR optical transceivers: Supported
- 25GBASE-LR optical transceivers: Supported
- SFP+ DAC: Supported
- 10GBASE-SR: Supported
- 10GBASE-LR: Supported
- Bracket type: Full Height / Low Profile
- Dell Full Height P/N: N49FM
- Dell Low Profile P/N: GY0MM
- Virtualization features:
- PCI-SIG SR-IOV
- Virtual Machine Device Queues (VMDq)
- Flexible Port Partitioning
- On-chip QoS and Traffic Management
- Intel Virtualization Technology for Connectivity (VT-c)
- Network features:
- Intel Ethernet Flow Director
- Intel Data Direct I/O Technology
- Intelligent Offloads
- VLAN support
- PXE support
- UEFI support
- Receive Side Scaling
- Network virtualization offloads
- Network virtualization protocols:
- VXLAN
- GENEVE
- NVGRE
- MPLS
- VXLAN-GPE
- Storage over Ethernet:
- iSCSI
- NFS
- RDMA iWARP: No
- RoCEv2 RDMA: No
- Typical power consumption with 25G DAC: 8.6 W
- Maximum power consumption with 25G DAC: 11.8 W
- Typical power consumption with 25GBASE-SR: 10.3 W
- Maximum power consumption with 25GBASE-SR: 14.1 W
- Dimensions: 167 × 69 mm
- Operating temperature: 0 to +55 °C
