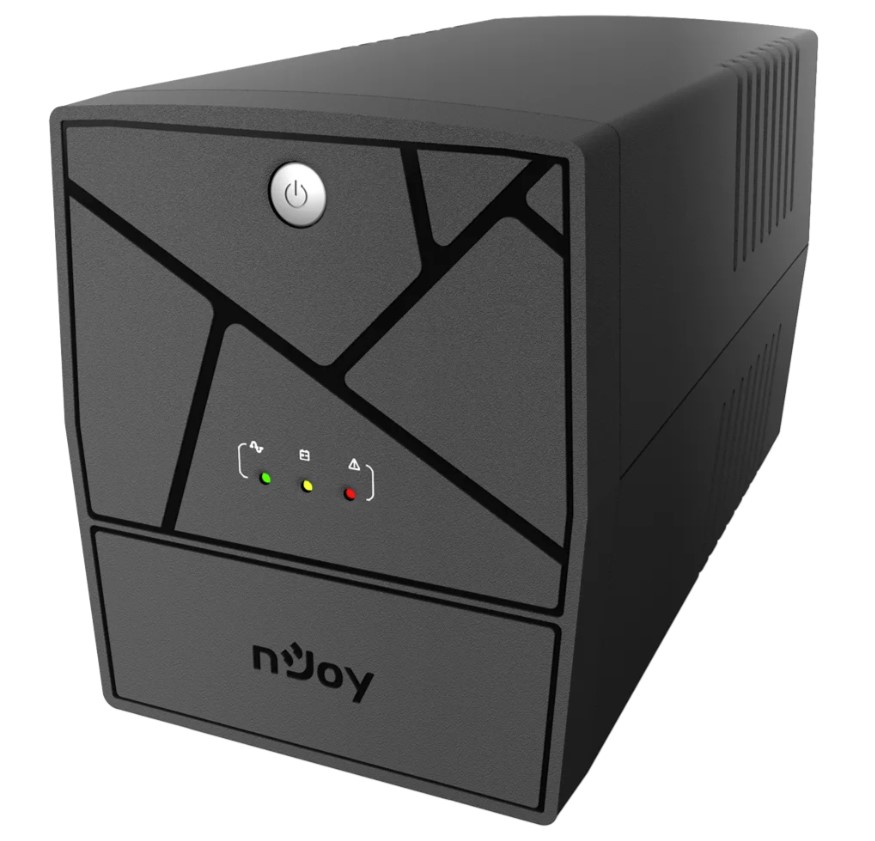

nJoy Keen 1500 USB — 1500VA / 900W

nJoy Keen 1500 USB — 1500VA / 900W Line-Interactive UPS

General Specifications

Device type: Uninterruptible Power Supply (UPS)

Brand: nJoy

Model: Keen 1500 USB

Part Number: UPLI-LI150KU-CG01B

UPS technology: Line-Interactive (VI)

Form factor: Tower

Phase: Single-Phase

Rated capacity: 1500 VA

Maximum output power: 900 W

Output power factor: 0.6

Input Specifications

Nominal input voltage: 230 V AC

Input voltage range: 162–290 V AC

Input frequency: 50 / 60 Hz (Auto Sensing)

Automatic Voltage Regulation (AVR): Supported

Output Specifications

Nominal output voltage: 230 V AC

Output voltage range: 207–253 V AC

Output voltage accuracy: ±10%

Output frequency in battery mode: 50 / 60 Hz ±1%

Output waveform: Simulated Sine Wave

Transfer time: Typical 4 ms

Number of output sockets: 4

Socket type: Schuko

Battery Backup Outlets: 4

Surge Protection: Supported

Battery

Battery type: Sealed Lead-Acid (SLA)

Battery configuration: 2 × 12 V / 9 Ah

Battery model: 2 × GP09122L

Battery location: Internal

Typical recharge time: 6 hours to 90% capacity

Automatic battery charging: Supported

Off-Mode Charging: Supported

Cold Start: Supported

Battery Runtime

25% load (225 W): Up to 20 minutes

50% load (450 W): Up to 6 minutes

75% load (675 W): Up to 2 minutes

100% load (900 W): Up to 1 minute

Interfaces and Management

Communication interface: HID USB

USB monitoring: Supported

Automatic computer shutdown: Supported with compatible software

Management software: PowerMonitor

Network surge protection: 2 × RJ11/RJ45 (IN/OUT) for modem, telephone and LAN

LCD display: No

Protection and Features

Automatic Voltage Regulation (AVR)

Auto-Restart after power restoration

Automatic Battery Charging

Overload Protection

Overvoltage Protection

Short-Circuit Protection

Battery Overcharge Protection

Battery Over-Discharge Protection

Circuit Breaker

Indicators and Controls

LED status indicators: Supported

Audible alarm: Supported

Load Capacity Indicator

Battery Level Indicator

AC Mode Indicator

Battery Mode Indicator

Fault Indicator

Power On/Off Button

Physical Specifications

Color: Black

Installation: Tower / Desktop

Protection class: IP20

Noise level: Less than 40 dB

Power cord length: 1.2 m

Dimensions: 298 × 148 × 178 mm

Weight: 9.1 kg

Operating Conditions

Operating temperature: 0 to +40 °C

Operating humidity: 0–90%, non-condensing

Certifications: CE / RoHS

Package Contents

nJoy Keen 1500 USB UPS

Power Cord

User Manual
