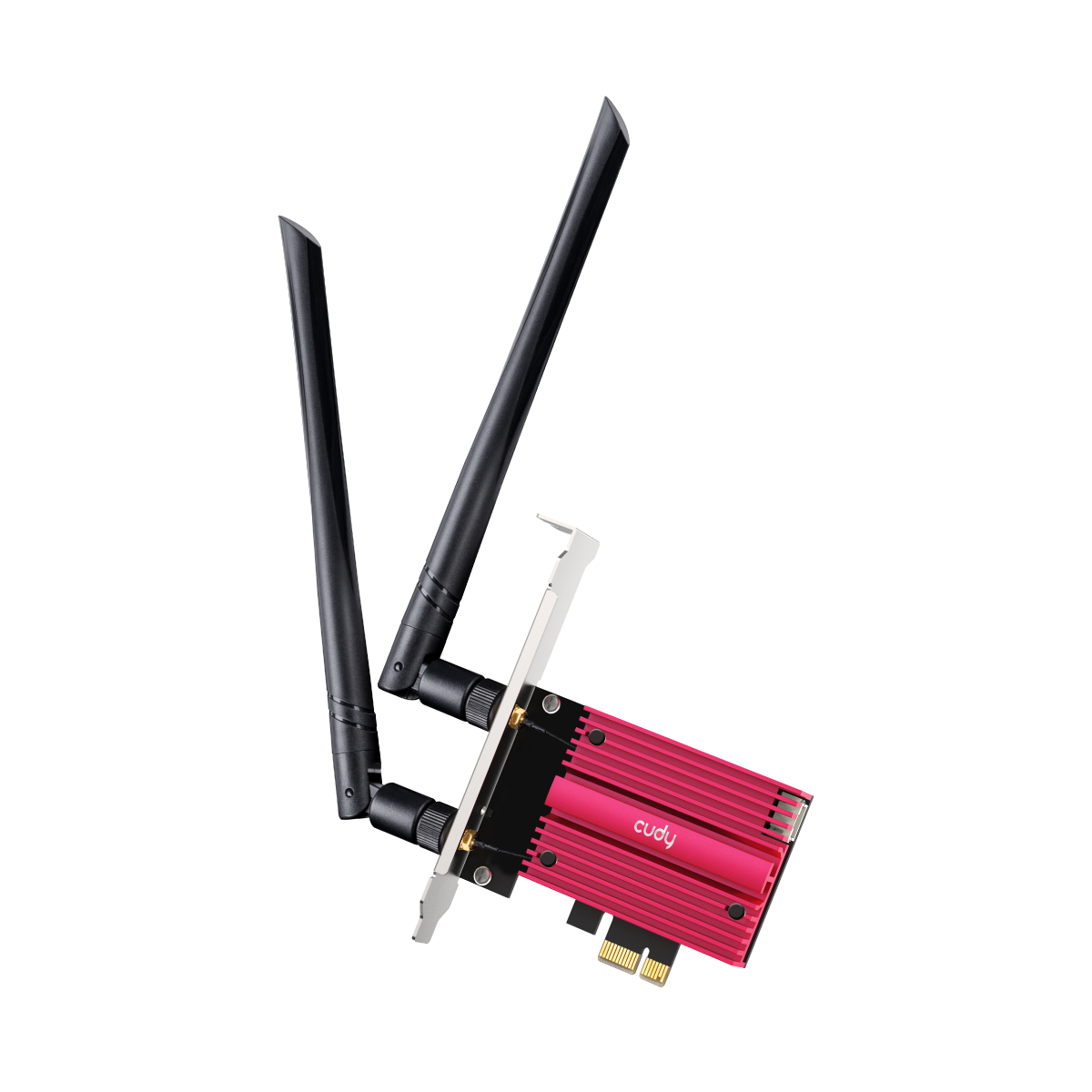

Cudy WE9300 — BE9300 Wi‑Fi 7 Bluetooth 5.4 PCI Express Adapter

Cudy WE9300 — BE9300 Wi‑Fi 7 Bluetooth 5.4 PCI Express Adapter

General Specifications

Device type: Internal PCI Express Wi‑Fi and Bluetooth Adapter

Model: WE9300

Hardware version: WE9300 1.0

Wi‑Fi standard: Wi‑Fi 7 (802.11be)

Wi‑Fi class: BE9300

Wireless module: Intel BE200

Frequency bands: Tri-Band — 2.4 GHz, 5 GHz and 6 GHz

Wireless Performance

2.4 GHz Wi‑Fi speed: up to 688 Mbps

5 GHz Wi‑Fi speed: up to 2882 Mbps

6 GHz Wi‑Fi speed: up to 5765 Mbps

Combined theoretical Wi‑Fi rate: up to 9335 Mbps

2.4 GHz spatial streams: 2

5 GHz spatial streams: 2

6 GHz spatial streams: 2

Wireless configuration: 2×2 MIMO

Maximum modulation: 4096-QAM (4K-QAM)

Channel width: Auto / 20 / 40 / 80 / 160 / 320 MHz

Wi‑Fi Technologies

MLO (Multi-Link Operation): Supported

MRU (Multiple Resource Unit): Supported

Preamble Puncturing: Supported

OFDMA: Supported

MU‑MIMO: Supported

BSS Color: Supported

MLO data rates:

6 GHz + 5 GHz: up to 8647 Mbps

6 GHz + 2.4 GHz: up to 6453 Mbps

5 GHz + 2.4 GHz: up to 3570 Mbps

Bluetooth

Bluetooth version: Bluetooth 5.4

Bluetooth interface: Internal USB 9-Pin connection

Bluetooth functionality requires connection to a compatible motherboard USB header.

Interface and Compatibility

Host interface: PCI Express x1

Compatible PCIe slots: x1 / x4 / x8 / x16

Bluetooth connection: Internal USB 9-Pin

Supported operating system: Windows 11 64-bit

Supported PC platform: Intel-based PCs

Driver installation: Manual installation

Antennas

Number of antennas: 2

Antenna type: Detachable external antennas

Antenna connectors: RP-SMA Female

Wireless Security

WPA

WPA2

WPA3

Physical Specifications

Cooling: Heatsink

Main board dimensions without bracket: 70 × 45.5 × 20 mm

Each antenna dimensions: Ø15 × 221.5 mm

Product weight: 114.5 g

Operating temperature: 0 to +70 °C

Storage temperature: −40 to +70 °C

Operating humidity: 10–90%, non-condensing

Storage humidity: 5–95%, non-condensing

Certifications: FCC / CE

Package Contents

Cudy WE9300 PCI Express Adapter

2 × Detachable Antennas

Bluetooth to USB 9-Pin Cable

Low-Profile Bracket

Installation Guide
