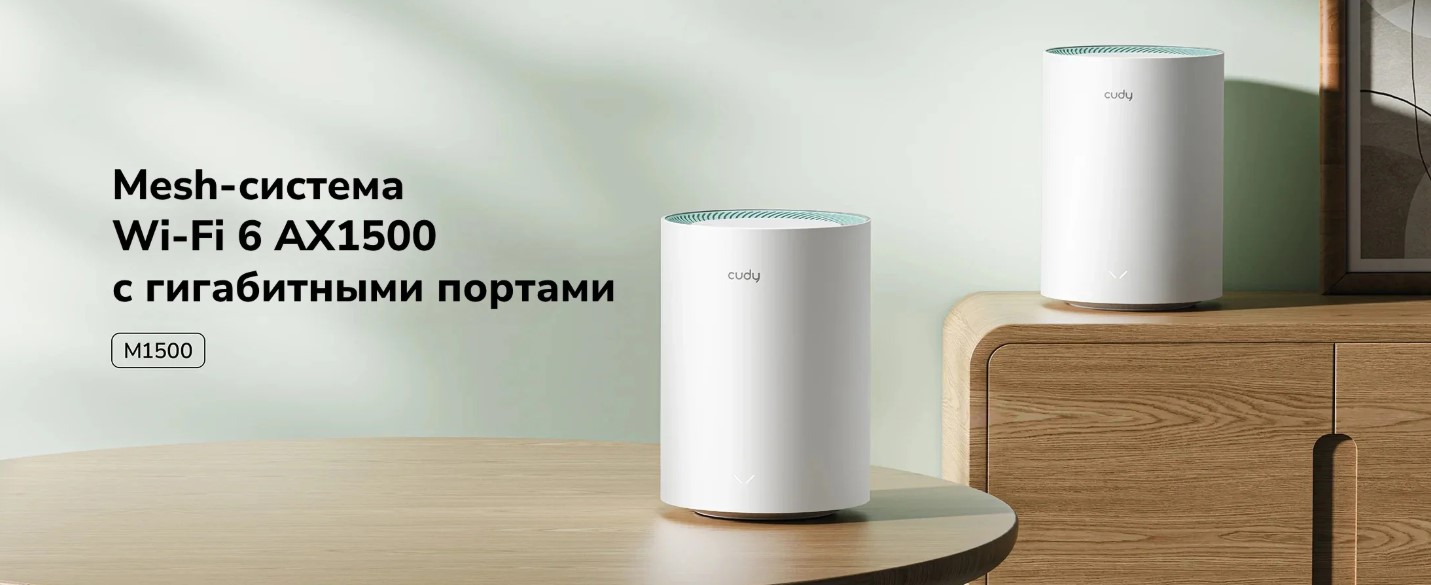

CUDY M1500 (1-Pack) Wi-Fi Mesh Solution

Model Version M1500 1.0

CPU Details 1 GHz Single-Core CPU

Flash/ROM 16 MB (128 Mbit) NOR

DDR/RAM 128 MB (1 Gbit) DDR3

5 GHz Wi-Fi Speed 1201 Mbps

2.4 GHz Wi-Fi Speed 300 Mbps

5 GHz Wi-Fi Streams 2T2R (2×2 MIMO)

2.4 GHz Wi-Fi Streams 2T2R (2×2 MIMO)

Wi-Fi Antennas 2× Internal

FEM or PA/LNA

• 5 GHz: 2× Internal
• 2.4 GHz: 2× Internal

Range Performance Max: 170 m (558 ft)

Tested in open-space environments with minimal interference. Actual WiFi range may vary depending on layout and wall materials. Refer to the Wall Performance specifications for placement suggestions.

Wall Performance

Two wooden walls with thickness < 10 cm (4'')

One concrete wall with thickness < 20 cm (7'')

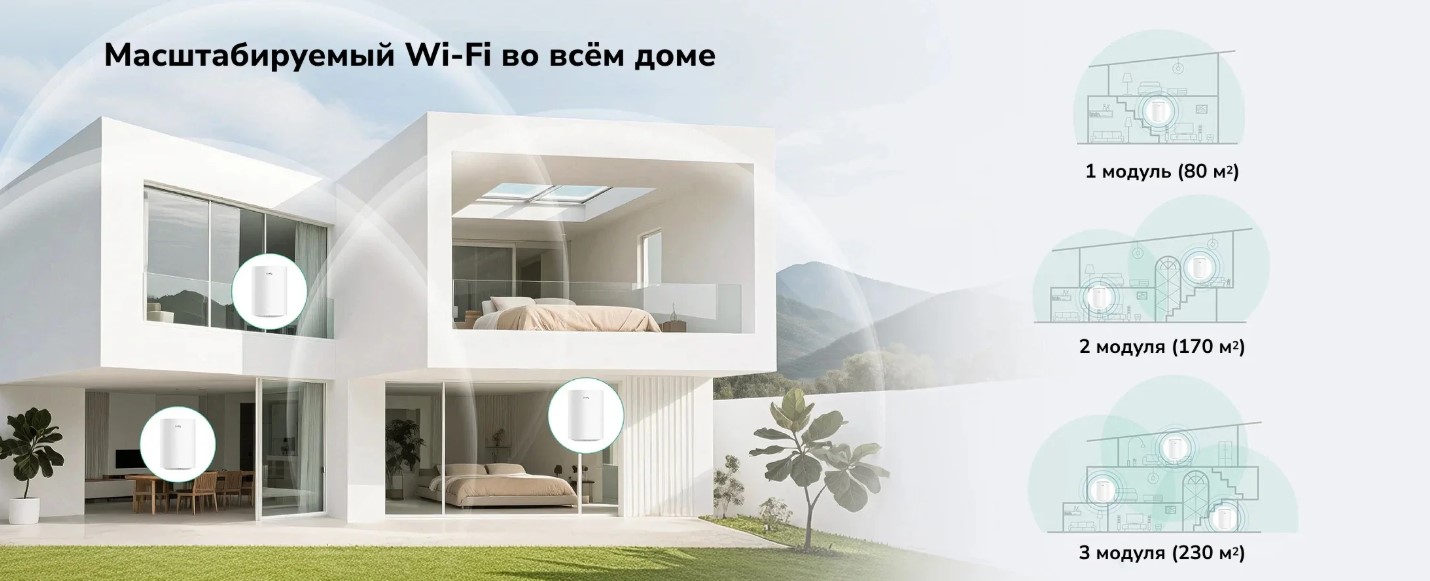

Indoor Coverage Reference

2 Pack: 170 m² (1800 sq ft)

3 Pack: 230 m² (2500 sq ft)

Applied to wireless backhaul situation. Place in the center of each floor, with a maximum of two obstacles to each room.

Gigabit RJ45 Ports 3

Ethernet Notes 1× WAN port, the rest are LAN ports

Physical Buttons

• WPS Button
• Reset Button

DC Input 12V 1A

Power Adapter Input: 100 ~ 240 V, 50/60 Hz AC

Output: 12V 1A DC

Max Power Consumption (W) 10W

Reliability (Environment)

• Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉)
• Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉)
• Humidity: 10% ~ 90% non-condensing
• Storage Humidity: 5% ~ 95% non-condensing
